5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFC - P5
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
2 Square Meters
Price :
US$ 980 - 1,050 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Wooden Case (wooden case size depend on cabinet quantity)
Pixel Pitch :
5mm
Cabinet Size :
960mm x 960mm
Cabinet Weight :
40kg
Cabinet Color :
Black
Cabinet Material :
Stainless Steel
Waterproof :
IP65
Lifespan :
100,000hrs
Certificate :
CE, LVD, RoHS
Description

5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness


Decription:

Waterproof 5mm Outdoor Full Color 960mm x 960mm LED Display Cabinet, High Brightness. Brightness can be higher than 6,500nits.

Features:
1. Stainless steel cabinet design, waterproof IP65
2. Excellent heat dissipation design and performance.
3. Cost-effective solution and very popular.
4. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.

Specification:

Pixel Pitch 5mm
Pixel Density 40,000dots/sqm
Tube Chip Color Full Color
Color Configuration 1R1G1B 3in1
LED Encapsulation SMD2727
Cabinet Size 960mm x 9600mm
Cabinet Resolution 192dots x 192dots
Cabinet Weight 40kg
Drive Duty 1/8Constant Current
Brightness >6,500nits
Viewing Distance 5m - 50m
Viewing Angle H: 120°, V: 120°
Refresh Rate 2,000HZ
Frame Rate 120frame/sec
Grey Grade 256levels of Each Color
Color Grade 16.7M
Power Input AC220V (110V) ±15%, 47 - 64HZ
Max Power Consumption 1,400W/sqm
Ave. Power Consumption 460W/sqm
Storage Temperature -40℃ - +80℃
Working Temperature -20℃ - +60℃
Blind Spot Rate <1/10,000
MTBF >10,000 Hours
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Control System Synchronous, Asynchronous
Operating System Win 98, Win2000, XP, 07.etc
Input Source All Format (AVI, MPEG,VOB, RM, etc)
Certificate CE, LVD, RoHS

Application:

Widely using for music concert, theater, stadium, showroom, stage, fitness room, monitoring room and etc.

Pictures:

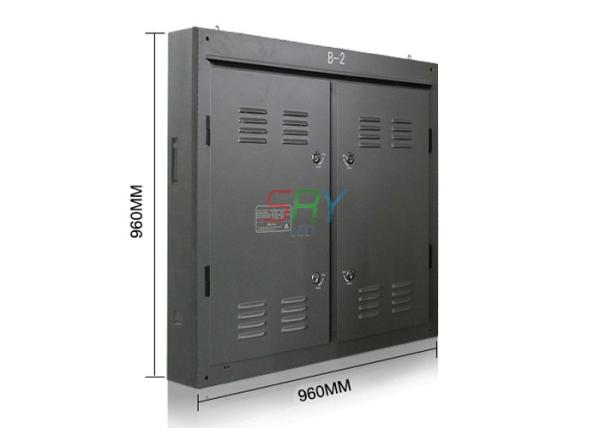

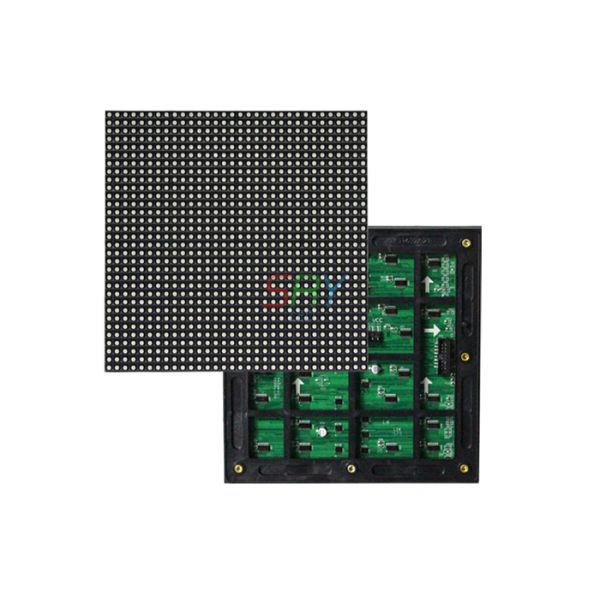

5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness


Competitive Advantages:

1. Anti-damage design:

Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.

2. Mixed-use available:

Can be also used for other 160mm x 160mm modules.

3. Light weight and slim:

The thickness of each cabinet less than 100mm,only 40kg/cabinet.

4. Smart and Simple

No internal connection cables can deliver a much more stable performance.
