Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFC - P10
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 750 - 850 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Flight Case (Flight case size depend on cabinet quantity)
Pixel Pitch :
10mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD3535
Module Size :
320mm x 160mm
Module Weight :
0.50kg
Cabinet Size :
9600mm x 9600mm
Cabinet Weight :
25kg
Warranty :
2 Full Years
Description

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Decription:

960mm x 960mm Outdoor Waterproof Die - casting Mg LED Cabinet, Rental Use Cabinet. Using Mg alloy

to makes the cabinet lighter than die - casting Al LED cabinet.

Features:

1. Ultra-light: ghter 40% than die - casting Al cabinet

2.Super slim: high-strength,more slim than aluminum in the design,thinner around 30%

3. Fast cooling: excellent heat dissipation performance to protect the module circuit

4. Anti-interference: special anti electromagnetic interference function

5. High strength: support the weight of 300kg through tension test,more strength than aluminum

6. Easy installation: installed by quick lock for 20s only

7. High precision: seamless splicing though CNC machining

8. High universality: can be processed according to module drawing,used for outdoor and indoor


Specification:

Pixel Pitch

10mm

Pixel Density

10,000dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

320mm x 160mm

Module Resolution

32dots x 16dots

Cabinet Size

960mm x 960mm

Cabinet Resolution

96dots x 96dots

Drive Duty

1/4Constant Current

Brightness

>6,500nits

Viewing Distance

10m - 100m

Viewing Angle

H: 120°, V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

390W/sqm

Ave. Power Consumption

195W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours
Waterproof IP65

Cabinet Weight

25kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

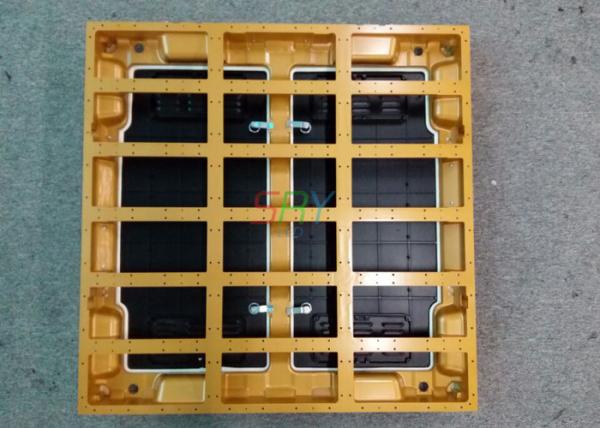

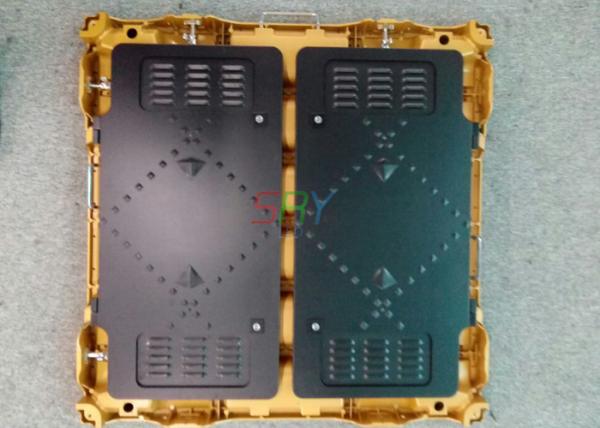

Pictures:

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mmOutdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.

2. 24hours per 7 days, 2 full years warranty.

3. fast installation and easy to install.
