6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFC - P6
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10PCS
Price :
US$16 - 18 / PCS
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 PCS per Month
Delivery Time :
5 - 7 Work Days
Packaging Details :
Carton Case (carton case size depend on module quantity)
Pixel Pitch :
5mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD3535
Module Size :
192mm x 192mm
Module Weight :
0.40kg
Drive Duty :
1/8 scan
Lifespan :
100,000hrs
Warranty :
2 Full Years
Description

6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65

Decription:

Simple Designed 6mm Outdoor HD Full Color Steel LED Cabinet, Front Waterproof IP65 Cabinet. Brightness can be higher than 6,500nits.

Features:
1. Best viewing distance
6m - 60m
2. Best viewing angle
H: 120°, V: 120°
3. Max. power consumption
1,200W/sqm
4. Ave. power consumption
400W/sqm

Specification:

Pixel Pitch

6mm

Pixel Density

27,777dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

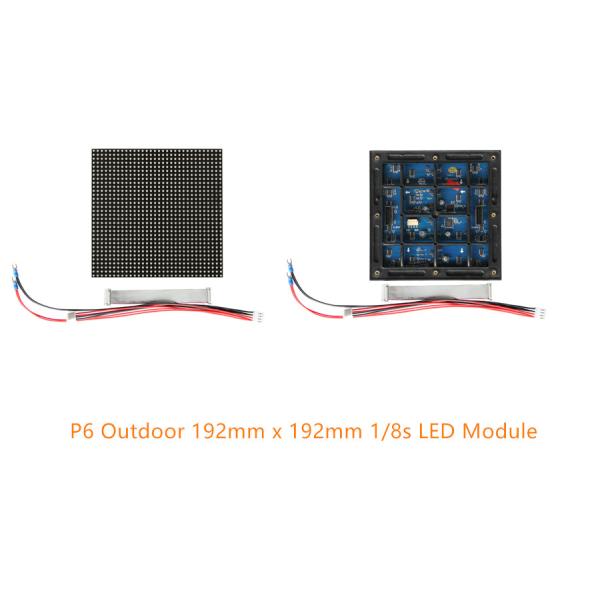

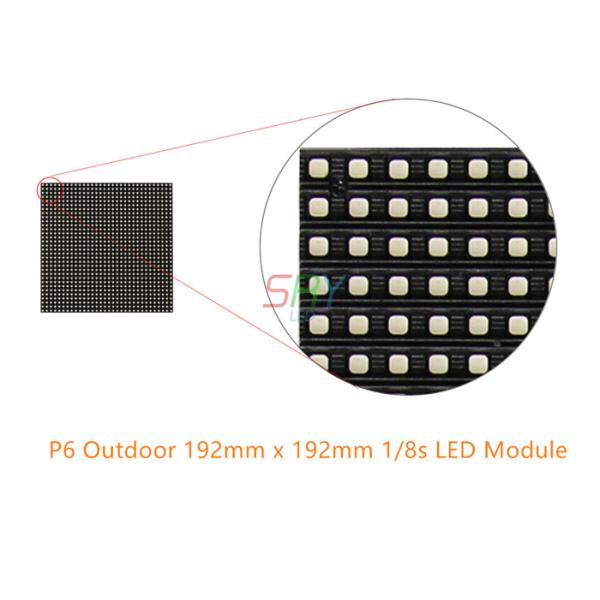

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

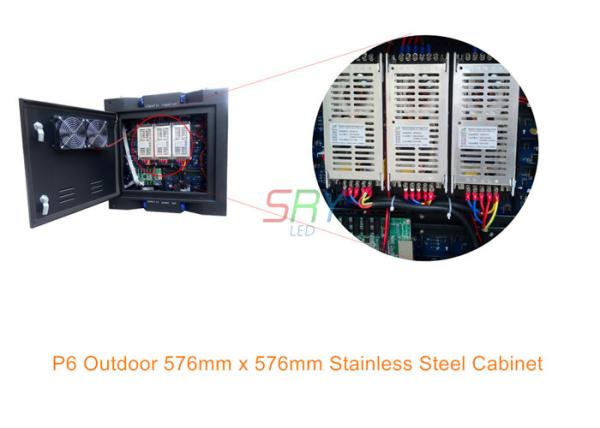

Cabinet Size 576mm x 576mm
Cabinet Resolution 96dots x 96dots
Module Weight 15kg

Drive Duty

1/8 Constant Current

Brightness

>6,500nits

Viewing Distance

6m - 60m

Viewing Angle

H: 120°, V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

AC110V/ 220V/ 50HZ

Max Power Consumption

1,200W/sqm

Ave. Power Consumption

400W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃
Waterproof IP65

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

Pictures:

6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65

6mm Outdoor LED display rental HD Full Color Steel LED Cabinet Front Waterproof IP65
Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.


2. Superb performance/price ratio solution for rental market.


3. 24/7 professional after sales service, and on-site service is available.


4. Support different shapes installation: Flat and curved ,create infinite stage styles.
