7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
Specifications
Place of Origin :
China
Brand Name :
BBI
Model Number :
BBI-001
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Certification :
ISO9001 RoHS
Touchscreen :
No
Display Area :
68.04(H)x120.96(V)mm
Power Consumption :
30W
Input Voltage :
2.8~3.3V
Interface Type :
RGB
Fpc :
26pin
Lcd Type :
a-Si TFT Active Matrix
Display Colors :
16.7M
Name :
IPS TFT LCD Display
Description

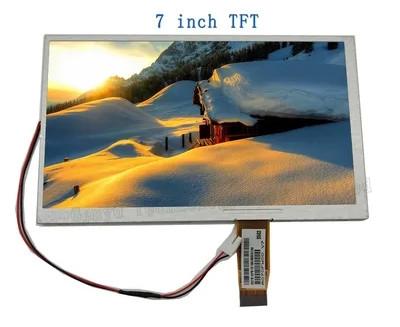

7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
Product Description

Key Specifications:

  • Screen Size: 7 inches (diagonal)

  • Resolution: Typically 1440 x 234 dot (480 horizontal by 234 vertical pixels) resolution, which provides decent image clarity for most embedded applications and is common for devices like digital signage, portable consoles, and industrial panels.

  • Aspect Ratio: 16:9, suitable for widescreen applications.

  • Technology: TFT (Thin Film Transistor) technology with LED backlighting, offers improved color reproduction, better contrast, and lower power consumption than older CCFL-backlit displays.

  • Interface:

    • RGB Interface (parallel) or LVDS (Low-Voltage Differential Signaling): This is commonly used in embedded systems, industrial applications, and custom boards. You may need a controller or an interface board to connect devices like Raspberry Pi, Arduino, or other microcontrollers.

    • The RGB interface is common and generally requires the user to connect it with a controller, such as an HDMI to an RGB driver for more convenient use.




Basic Parameters:


NO. ITEM SPECIFICATIONS
1 Product Name 7.0 Inch TFT display
2 Display Mode Normally white
3 Viewing Angle 6 O'clock
4 Pixel arrangement
RGB Vertical stripe
5 Resolution
480 RGB(H) x234(V) pixels
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 26PIN, socket type
9 FPC PITCH 0.5 mm
10 Backlight Consumption 10.8V, 100mA
11
Luminance
 200 cd/m2
12 Outline Dimension

162.6(H) x 96.6 (V) mm
13 Active Area
154.08(H) x 86.58(V)


7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display






Our Services:

1. Free repair within one year after the shipment of products from us.

2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies

can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
7.Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.

8.Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.

Products Application field:

Audio product Medical Equipment

Industrial product(watermeter, electronicmeter,Equipment )

Automobiles Sports Equipment Watches

Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
