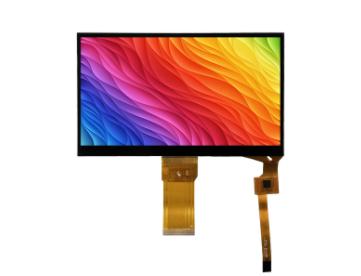

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness
Specifications
Brightness :
200 cd/m²
Backlight Technology :
LED
Display Mode :
Normal black
Size :
7 inches
Connectivity :
RGB
Resolution :
1024x 600 pixels
Lcd Type :
TFT
Touch Screen :
customized
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

7 Inch IPS TFT LCD Module 1024x600 With Capacitive Touch Screen

Indoor Low Brightness 200nits 1024*600 50pin Capacitive Touch Screen 7 Inch TFT LCD Module LCD Panel LCD Display

Detail Information

Type TFT
Display Size 7 inch
Supplier Type ODM/OEM
Backlight Type LED
Resolution 1024*600
Brightness 200cd/㎡
Operating Temperature -20°C~+70°C
Display Type IPS
Mounting Type PCB
Driver IC HX8282+HX8696
Dot Matrix 1024*600 dots
Display Mode Normal Black
Viewing Angle ALL
Module Size 165(W)*100(H)*5.4(T) mm
Active Area 154.21(W)*85.92(H) mm
Storage Temperature -30°C~+80°C
TP IC GT911
Operate Voltage 3.3V

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness

7 Inch IPS TFT LCD Module 1024x600 200 cd/m² Brightness

We are a manufacturer with many years of experience in LCD display production. It is located in Dongguan, Guangdong Province, China, which is the world's manufacturing center.

we can customize all kinds of sizes liquid crystal display (LCD) with glass thickness 1.1mm, 0.7mm,0.55mm,0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT , LED Backlight.

Our company has passed ISO 9001, certifications as well as RoHS,SGS Reach CE

We can provide strong guarantees for customers.

At the same time, we have multiple production lines to ensure the delivery time.

And a professional quality inspection team ensures the quality. And there is also a strong after-sales guarantee.

DONG GUAN BIBUKE Electronics Technology Co., Ltd. welcome your visit!

Production Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.
