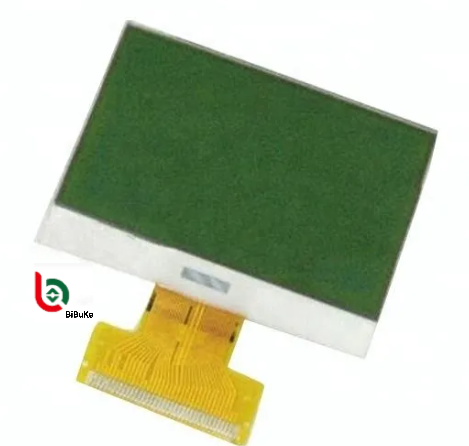

128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications
128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications
128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications
128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications
Specifications
Screen Type :
Graphic
Display Size :
Customized
Viewing Angle :
12 O' clock
drive method :
1/65duty 1/9 bias
Rohs Compliant :
Yes
Display Mode :
Postive
Polarizer Type :
Transflective
Displaytype :
COG (Chip on Glass) LCD
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
128x64 Dots STN COG FSTN Graphic STN LCD Display
High-resolution 128x64 dot matrix graphic LCD display module featuring COG packaging and FSTN liquid crystal technology for superior performance in industrial applications.
Technical Specifications
TypeGraphic
Display SizeCustom
LCD TypeFSTN
Viewing Angle12 o'clock
Display ModePositive
Polarizer ModeTransflective
Drive Method1/65 duty, 1/9 bias
Operating Voltage4.5V
Operating Temperature-10°C to +60°C
Storage Temperature-20°C to +70°C
Product Features
  • COG Packaging: Chip-on-Glass technology reduces module frame size, improves integration, and enables thinner product designs without additional PCB board space
  • FSTN Technology: Fringe Stacked Transflective Nematic liquid crystal with compensation film eliminates chromatic dispersion for high-contrast black-and-white display and wider viewing angles
  • High Resolution: 128x64 dot matrix capable of displaying characters, numbers, and simple graphics for text information, charts, and menus
  • Flexible Interface: High-speed 8-bit parallel data bus compatible with 80/68 series and SPI serial interface options for easy microcontroller integration
  • Low Power Consumption: 3.3V operating voltage with minimal power consumption, ideal for battery-powered devices
  • Wide Temperature Range: Operates from -20°C to +70°C, suitable for various environmental conditions
Applications
  • Industrial Control: PLC systems, HMI interfaces, temperature controllers for equipment status and parameter display
  • Instrumentation: Multimeters, oscilloscopes, signal generators for measurement data and waveform display
  • Medical Equipment: Patient monitors, blood glucose meters, portable diagnostic devices for physiological parameter display
  • Smart Home: Thermostats, security control panels, smart meters for equipment status and operation menus
  • Commercial Equipment: Vending machines, ATMs, self-service terminals for user prompts and transaction information
128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications 128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specification document or drawing. If unavailable, you can send samples and we'll recommend suitable options or customize according to your requirements.
This LCD meets our needs but the size is too large. Do you have smaller options with modified display content?
For segment type LCD modules requiring size or display content modifications, we create new LCD glass modules with custom tooling to meet your specific requirements.
This LCD display is HTN type, but I need STN type. Can you provide this?
Yes, we can modify the LCD type to STN according to your specifications.
Can you customize a new LCD module for my application?
Absolutely. Please provide your drawing specifications. If unavailable, share the outline size, display information (glass thickness, polarizer type, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions) and we'll create a custom solution.
What is the lead time for custom tooling?
Typically 15-25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.
Can you provide samples for evaluation?
Yes, sample orders are available for quality verification.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically takes 15-30 days, with earlier completion updates provided when possible.
