Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Specifications
Viewing Size :
26.355x 25.33 Mm
Active Area :
55x23mm
Storage Temperature :
-30°C to 80°C
Operating Voltage :
3.0~5.0V
Display Mode :
Positive
Viewing Direction :
6 O'clock
Module Size :
59 X2 7.5 Mm
Driving Method :
1/64 Duty, 1/9 Bias
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

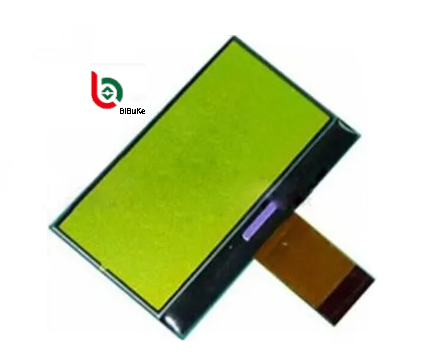

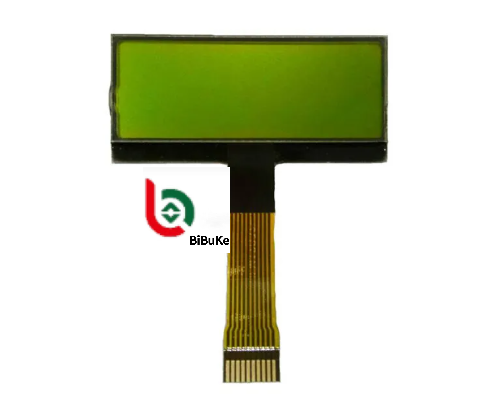

Small Size FSTN COG Module 128x32 Graphic LCD Display
Compact FSTN COG technology display module with high contrast and wide viewing angles for various industrial applications.
Technical Specifications
Product Name 128x32 COG Module
Viewing Direction 6 O'clock
Module Size 59 * 27.5 mm
V/A Size 55 * 23 mm
Interface Type FPC
Driving Method 1/64 Duty, 1/9 Bias
Display Mode Positive
Operating Voltage 3.0~5.0V
Operating Temperature -20°C~70°C
Storage Temperature -30°C~80°C
Product Features
  • FSTN display mode provides high contrast and wide viewing angles
  • COG technology enables compact, thin, and lightweight design
  • 128*32 pixel resolution for graphics, text, and icons
  • Low power consumption with 3.0-5.0V operating voltage
  • Wide operating temperature range for environmental adaptability
  • Serial or parallel interfaces including SPI for microcontroller integration
  • Customizable FPC connection and pin spacing available
Application Areas
  • Communication Devices: Mobile phone auxiliary displays, business phones, IP card phones
  • Household Appliances: Air conditioners, refrigerators, audio systems
  • Instrumentation: Explosion-proof flow meters, calibrated control instruments
  • Automotive Electronics: GPS navigation devices, driving recorders
  • Smart Devices: Intelligent heat accumulation meters, quantitative control instruments
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Packaging & Shipping
Packaging Options
Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with consideration for country-specific regulations.
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Shipping Methods
Express shipping via DHL, FedEx, EMS, UPS, air shipping, or sea shipping. We accommodate your preferred shipping method.
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
Payment Methods
Small Size 128x32 Resolution FSTN COG Module Graphic LCD Display with 6 O'clock Viewing Direction
