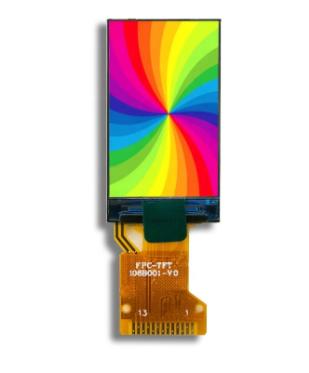

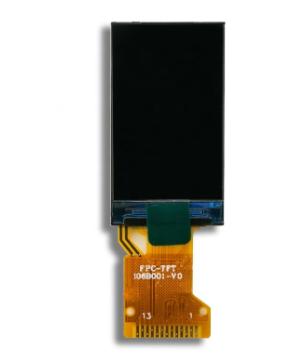

1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S
1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S
1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S
1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S
Specifications
Colors :
262K
Display Type :
TFT
Active Area :
13.82(H)*23.04(V) Mm
Dimensions :
16.12(H)*29.76(V)*1.52(D) Mm
Size :
1.06 inch
Operating Temperature :
-20~+70℃
Interface :
4 SPI
Luminance :
250 cd/m2
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S

Detail Information

Type TN
Display Size 1.06 inch, small TFT LCD
Pixels 96 RGBx160 Dots
Module Size 16.12(H)*29.76(V)*1.52(D) mm
Panel Active Area 13.82(H)*23.04(V) mm
Luminance 250 Cd/m²
Driver IC ST7735S
Interface 4 SPI
Operating Temperature -20~+70℃
Connector COG+FPC, 13pins
Light Source 1 white LED
Item Specification Unit
Pixel Pitch 48(H)*3*144(V) μm
Pixel Arrangement RGB stripe
Driver IC ST7735S
Light Source 1 white LED, 20mA
Panel Type TN
Resolution 96xRGBx160 Dots pixel
Display Mode Normally White
Number of Colors 262K
Contrast Ratio 500
Viewing Angle 3/6/9/12 O'clock, IPS

1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S

1.06 Inch TN TFT LCD Screen Module 96x160 RGB SPI Display ST7735S



Display Characteristics:


Color: The ST7735S chip typically uses 16bit (RGB565) to control the display of one pixel, capable of showing up to 65K colors. The colors are rich and can meet most color display requirements.


Display Modes: It supports various display modes such as normal display, rotated display, scrolling display, etc. It also supports video playback functions, which can be achieved by setting relevant registers.

Application fields:


Wearable devices: Such as smart watches, blood oxygen monitors, etc. Their compact size and rich color display capabilities can meet the display requirements of wearable devices.


Medical equipment: It can be used for the display interfaces of some small medical instruments, such as blood glucose meters, blood pressure monitors, etc., to display measurement data and operation menus.


Industrial control: In some small industrial instruments, handheld controllers and other devices, it serves as a display component to display information such as equipment status and parameter settings.
