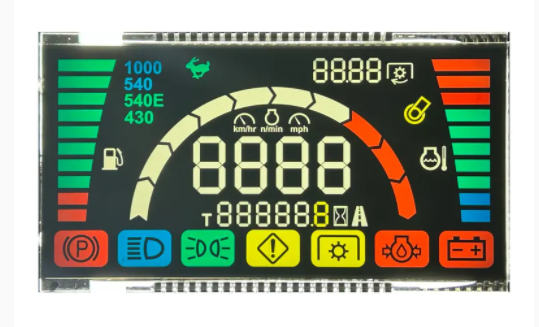

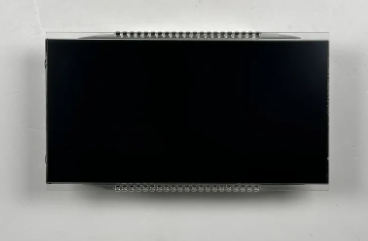

Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply
Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply
Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply
Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply
Specifications
Outline Size :
customized
Backlight Type :
LED
View Direction :
6 O'clock
Driving Method :
1 / 4 Duty , 1 / 3 Bias
Backgound :
Black Color White Led
Connectivity :
pin
Va Size :
customized
Mode :
NEGATIVE TRANSFLECTIVE TYPE
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
6 O'CLOCK Negative Transflective VA LCD Display With Backlight For Power Supply
Product Specifications
Type VA
Operating Temp -20℃ to +70℃
Storage Temp -30℃ to +80℃
Voltage 5.0 V
Connectors PIN
Driving Method Static/Dynamic
Polarizer Type Transflective
Viewing Direction 6 O'CLOCK
Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply Customized Size VA LCD Display with Black Background White LED and Wide Temperature Range for Power Supply
Product Overview
This backlit 6 o'clock negative reflection VA LCD display is specifically designed for power equipment information display. Utilizing VA vertical orientation technology, it features optimal 6 o'clock viewing angle, negative reflection display effect, and backlight assistance for enhanced visibility in various lighting conditions.
Core Features
Display Technology & Visual Characteristics
  • Negative reflection (Negative Transflective) VA technology with black background and white text display
  • Contrast ratio exceeding 1000:1 with OLED-like visual effects at lower cost
  • Optimized 6 o'clock viewing angle for power equipment installation
  • Backlight module (white/amber LED) for clear visibility in dim environments
  • Customizable backlight brightness to balance energy efficiency and visibility
Electrical & Physical Characteristics
  • 5.0V operating voltage (some models 4.3V)
  • Supports multiple driving methods including 1/3 duty cycle + 1/2 bias
  • Wide temperature range operation: -20℃ to +70℃ (industrial grade -30℃ to +80℃)
  • Customizable physical dimensions with pin or Zebra connection options
  • Low power consumption with high stability
Customization Options
  • Custom display content including voltage units (V), current units (A), percentage symbols
  • Fault indication icons and power bar charts customization
  • Multiple interface options including pins and FPC
  • Optional touch functions and data linkage with power supply main control board
Application Scenarios
Industrial Power Supply Equipment
Used in distribution cabinets, UPS systems, and switching power supplies to display real-time voltage, current, power factor, and load rate data. Also suitable for charging station display panels with optimal viewing angle for standing users.
Consumer Power Products
Ideal for battery chargers and outdoor power supplies to show remaining power, output power, and charging modes. Backlight function ensures nighttime visibility.
Medical & Instrument Power Supply
Used in medical equipment power modules and testing instruments where high stability is required. The 6 o'clock viewing angle is perfect for handheld observation by engineers and technicians.
