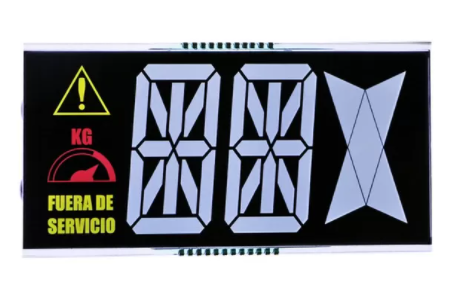

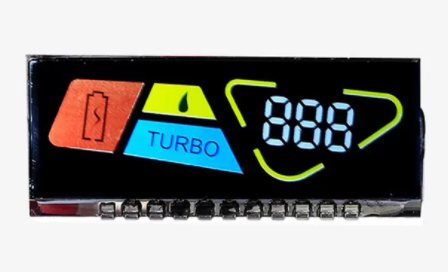

VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition
VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition
VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition
VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition
Specifications
Panel Type :
LCD
Brightness :
400 cd/m²
Technology :
LCD
Size :
customized
Backlight Technology :
LED
Backlight Type :
LED
Operating Temperature :
-20°C to 70°C
Light Source :
White LED*6
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
VA DFSTN LCD 7 Segment Decimal Display - Negative High Contrast LCD Mode
A high-performance LCD display featuring VA and DFSTN technologies for superior contrast and viewing angles in various applications.
Product Specifications
Type VA LCD Display
Polarizer Mode Transmissive
Display Mode Positive
Viewing Angle 12 O'clock
Connector Pin / Zebra
Driving Condition 5.0 V
Additional Details
Application Meter display
Backlight White
Voltage 5.V
Controller HT1620
OEM/ODM Accepted
Warranty 12 months free, paid warranty lifetime
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Certification ISO, RoHS
VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition VA LCD Display with 7 Segment Decimal Structure 400 cd/m² Brightness and 5.0 V Driving Condition
Display Screen Core Characteristics
Technology Integration and Display Principles
  • VA Technology: Liquid crystal molecules arranged perpendicularly without voltage, achieving pure black background with maximum contrast ratio of 120:1.
  • DFSTN Technology: Dual FSTN film compensation structure enables high-definition black/white display with temperature resistance.
  • 7-segment Decimal Structure: Composed of 7 "8"-shaped segments to display numbers 0-9 and symbols.
  • Negative High Contrast Mode: Opaque black background when off, transparent bright characters when on, with superior readability in dim light.
Performance Parameter Advantages
  • Viewing Angle: 170° horizontal and 110° vertical, far exceeding TN screens.
  • Power Consumption: Low power consumption ideal for battery-powered devices.
  • Temperature Stability: DFSTN structure maintains display quality under high temperatures.
  • Contrast: Clear character/background boundaries with prominent visual effect in dim light.
Applications
Consumer Electronics
  • Digital display panels for household appliances (electronic watches, calculators, clocks)
  • Portable devices (thermometers, electronic scales) benefiting from low power consumption
Industrial & Instrumentation
  • Industrial control panels (frequency converters, distribution cabinets)
  • Precision instruments (laboratory equipment, medical testing devices)
Special Applications
  • Aerospace and vehicle instrument panels
  • Smart home meters (water, electricity, gas) with outdoor/indoor readability
