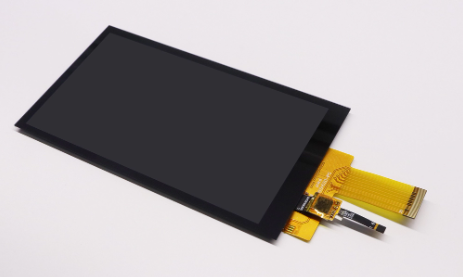

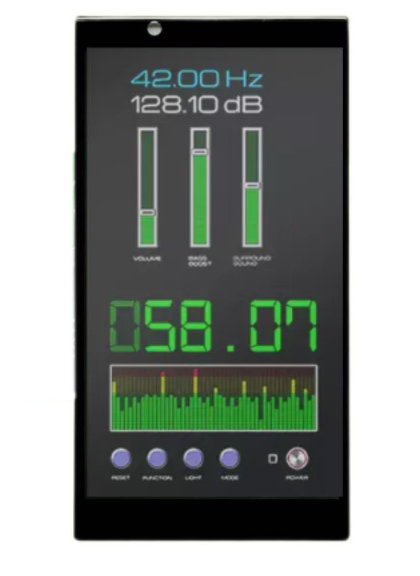

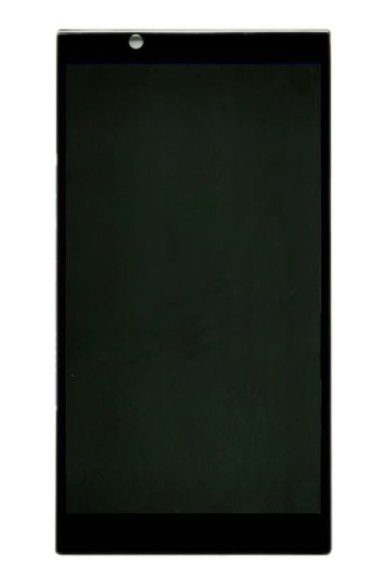

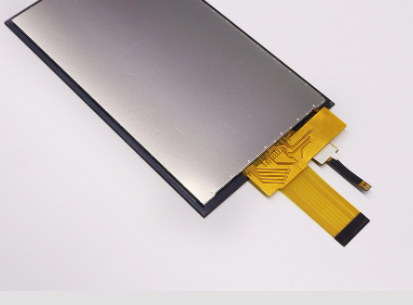

5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
Specifications
Operating Temperature :
-20°C to 70°C
Customize :
support
Viewing Angles :
All O'clock
Size :
5.5 inch
Lcm Outline Dimension :
76.44x135.20x3.31mm
Number Of Dots :
480（RGB）X 480
Touch Panel :
CUSTOMIZED
Dot Matrix :
720*RGB*1280
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
5.5 Inch IPS TFT LCD Display 720x1280 Resolution MIPI Interface
5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC 5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
Product Specifications
Screen Size 5.5 inch
Number of Pixel 720RGB(H)x1280(V)
Pin 30 pin
Display area 68.04(H)x120.96(V)mm
Pixel pitch 0.0945(H)x0.0945(V)mm
Outline Dimension 76.44x135.20x3.31mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 800:1
Interface MIPI
Back-light LED Side-light type
LCM IC ST7703
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80
Product Features
  • High Resolution: 5.5-inch diagonal size with 720x1280 resolution (267 PPI) for clear image and text display
  • IPS Technology: Ultra-wide 178° viewing angle with consistent color from any angle
  • MIPI Interface: High-speed serial interface with low power consumption and reduced wiring complexity
  • High Brightness: 350 nit luminance suitable for various lighting conditions
  • Wide Temperature Range: Operational from -20°C to 70°C for diverse application environments
  • Compact Design: Slim 3.31mm profile with LED side-light backlighting
5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC 5.5 Inch IPS TFT LCD Display with All Viewing Angles Customizable ST7703 Driver IC
