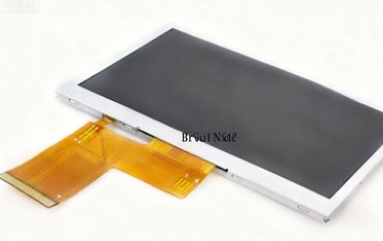

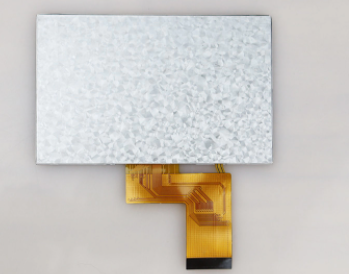

4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC
4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC
4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC
4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC
Specifications
Driving Ic :
NV3041A-01
Luminance :
400cd/m2
View Direction :
ALL o’clock
Size :
4.3 Inch
Outline Dimension :
105.46x67.10x3.00mm
Operating Temperatures :
-20 to 70 degree
Contrast Ratio :
1000:1
Resolution :
480*272 pixels
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
4.3 inch Custom IPS TFT LCD Display 480x272 Industrial Transmissive
A high-quality 4.3-inch IPS TFT LCD display with 480x272 resolution, specifically designed for industrial applications with transmissive technology.
Key Specifications
Resolution 4.3" IPS 480x272
Interface MCU 8/16bit SPI 3w/4w
Driver IC NV3041A-01
Brightness (cd/m²) 400 Nit
Viewing Angle 6 O'clock
Display Area 95.04(H) x 53.86(V) mm
Contrast Ratio 1000:1
Detailed Parameters
Screen Size 4.3 inch
Number of Pixel 480RGB(H) x 272(V)
Display area 95.04(H) x 53.86(V) mm
Pixel pitch 66(H) x 3 x 198(V) mm
Pins 20 pins
Outline Dimension 105.46 x 67.10 x 3.00 mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction ALL
Display Color 16.7M
Luminance 400 nit
Interface MCU 8/16bit SPI 3w/4w
Back-light LED Side-light type
Drive IC NV3041A-01
Operation Temperature -20~70℃
Storage Temperature -30~80℃
4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC 4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC
Product Features
  • Size & Resolution: 4.3-inch diagonal size with 480x272 resolution and RGB vertical stripe pixel arrangement
  • Display Technology: IPS technology with full viewing angle characteristics (80/80/80/80 degrees)
  • Interface Options: Supports RS232, 24-bit RGB, and MCU 8/16-bit SPI 3W/4W interfaces
  • Performance: 400 nit brightness and 1000:1 contrast ratio for clear visibility in bright environments
  • Temperature Range: Operating temperature -20℃ to 70℃, storage temperature -30℃ to 80℃
  • Customization: Optional capacitive or resistive touch screen functionality
  • Applications: Ideal for industrial automation, medical equipment, automotive displays, and military applications
