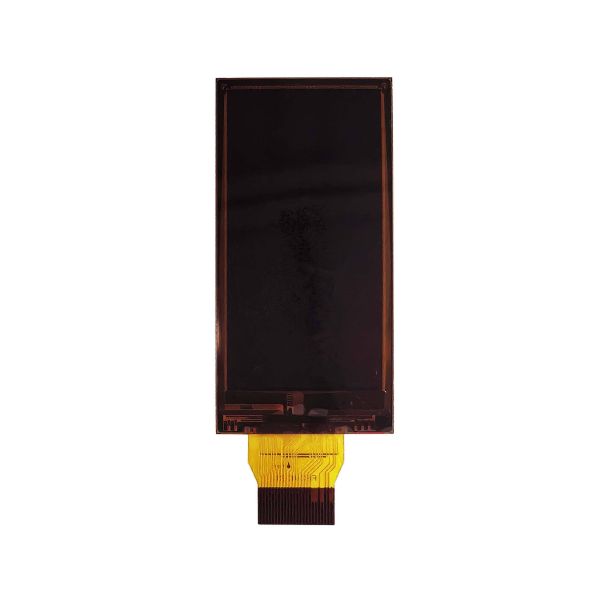

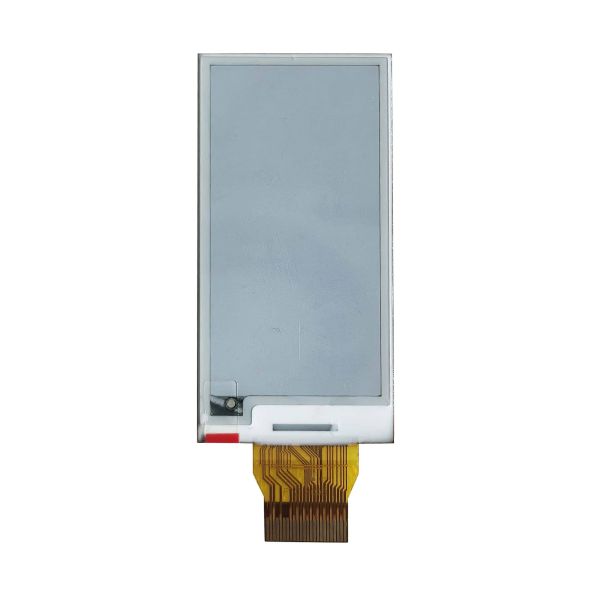

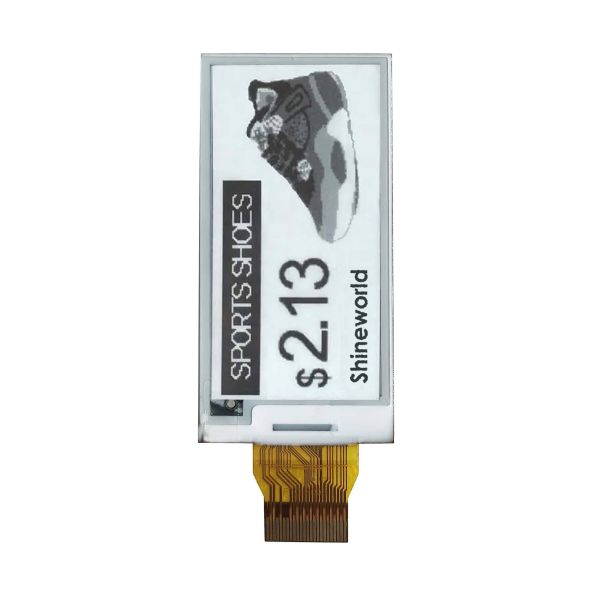

2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
Specifications
Brand Name :
Royal Display or ODM/OEM
Model Number :
E0213A26
Certification :
SGS, ROHS
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300K pcs/month
Delivery Time :
15~25 working day
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Model :
E0213A26
Display Technology :
AMEPD
Screen Size :
2.13 inch
Resolution :
104 (H) × 212 (V) pixels
Display Colors :
Black, White, Red
Active Area :
23.71 (H) × 48.55 (V) mm
Description
E0213A26 2.13-inch E-Paper Display (EPD) Module

104x212 Three-Color Electronic Shelf Label Screen with Ultra-Low Power Consumption

Product Specifications
Model E0213A26
Display Technology AMEPD
Screen Size 2.13 Inch
Resolution 104 (H) * 212 (V) pixels
Display Colors Black, White, Red
Active Area 23.71 (H) * 48.55 (V) mm
Pixel Pitch 0.228 (H) * 0.229 (V) mm

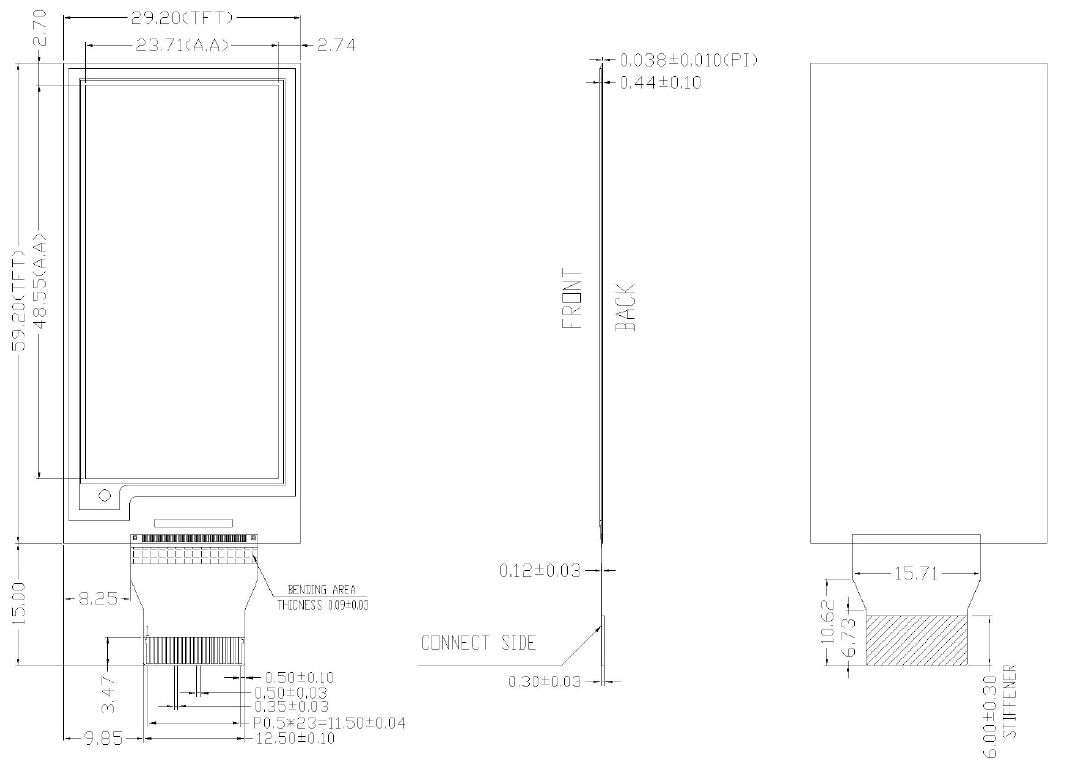

Outline Dimension 29.2 (H) * 59.2 (V) * 1.05 (D) mm
Weight 3.0 ± 0.2 g
Driver IC SSD1675
Interface 4-wire / 3-wire SPI
Logic Voltage (VCI) 2.2V - 3.7V (3.3V Typ.)
Operating Current 4.5 mA
Deep Sleep Current 2 μA
Operating Temp 0°C ~ +50°C
Storage Temp -25°C ~ +60°C
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
Product Overview

The E0213A26 is a 2.13-inch Active Matrix Electrophoretic Display (AMEPD) module with a resolution of 104(H) x 212(V). It features bi-stability (maintains display without power after refresh), ultra-high contrast, high reflectance, and ultra-low power consumption, supporting black, white, and red display. It is specifically designed for Electronic Shelf Label (ESL) systems.

2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
Available E-Paper Display Models
Size (inch) Resolution Colors Operating Temperature Active Area (HxV mm) Outline Dimension (HxVxD mm) Interface
1.5'' 200x200 B/W 0-50℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.5'' 200x200 R/B/W 0-40℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.5'' Freezer 200x200 B/W -25~10℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.54'' 152x152 B/W 0-50℃ 27.51x27.51 31.8x37.32x1.0 3/4-wire SPI
2.13" 122x250 B/W 0-50℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
2.13" 122x250 R/B/W 0-40℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
2.13" Freezer 122x250 B/W -25~10℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
7.5" 800x480 B/W 0-50℃ 163.20x97.92 170.2x111.2x1.2 3/4-wire SPI
13.3" Color 1600x1200 Colors 0-50℃ 270.4x202.8 285.8x213.65x0.97 MCU

* Complete product range available with various sizes, resolutions, and color options

Applications

Electronic paper displays are widely used in smart retail labels, e-readers, industrial instruments, and low-power IoT devices due to their ultra-low power consumption and paper-like viewing experience. With excellent readability under sunlight and a wide viewing angle, E-paper technology provides a comfortable visual experience while significantly reducing energy usage. It is an ideal solution for applications requiring long battery life, stable image retention, and eco-friendly display performance.

2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
Key Features
  • Broad selection of off the shelf products
  • Sunlight readable options available
  • Capacitive and Resistive options available for every display
  • Most products are kept in stock and can ship same day
  • Multiple interfaces available
  • Customizable FPC cables, LED backlights, and bezels
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels

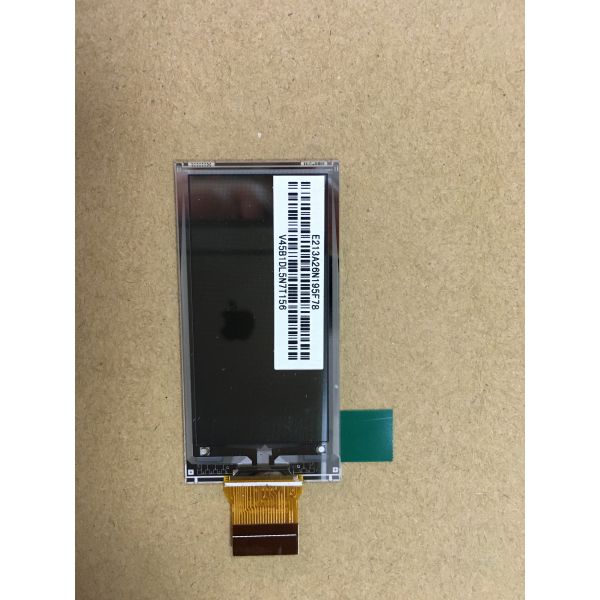

Packaging
2.13 Inch 104x212 Ultra-Low Power E-Paper Display Module for Electronic Shelf Labels
