4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
Specifications
Brand Name :
Royal Display or ODM/OEM
Model Number :
E0437
Certification :
SGS, ROHS
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300K pcs/month
Delivery Time :
15~25 working day
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Model :
E437
Display Technology :
AMEPD
Screen Size :
4.37 inch
Resolution :
176 (H) × 480 (V) pixels
Display Colors :
Black/White/Red/Yellow
Active Area :
38.19(H) x 104.16(V)
Outline Dimension(mm) :
46.60(H) x 115.86(V) x 1.0(D)
Driver IC :
JD79663AA
Interface :
3-wire SPI/4-wire SPI
Module Connecting Type :
Connector (Pitch:0.5mm)
Description
4.37-inch E-Paper Display (EPD) Module
176x480 Bar Type E Ink Display Epaper Screen Module

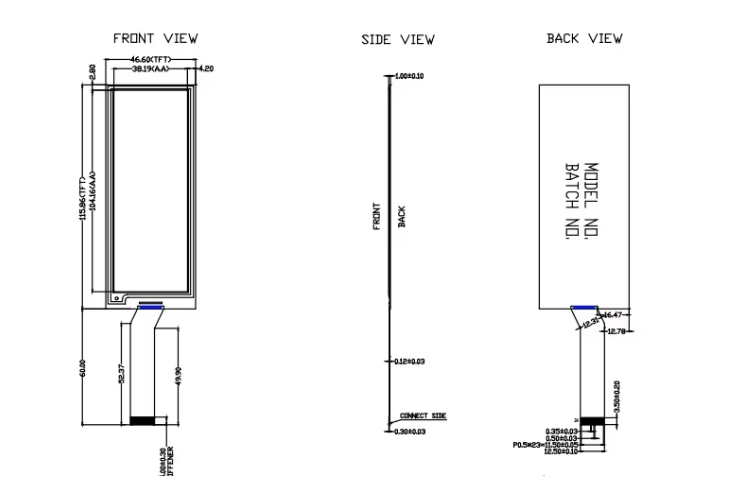

Product Specifications
NO. ITEM SPECIFICATIONS UNIT
1 Display Mode EPD -
2 Diagonal Size 4.37 Inch
3 Resolution 176(H)x480(V) Dots
4 Active Area 38.19(H) x 104.16(V) mm
5 Outline Dimension 46.60(H) x 115.86(V) mm
6 Thickness 1.0±0.1 mm
7 Pixel Pitch 0.217(W) x 0.217(H) mm
8 Pixel Size 0.217(W) x 0.217(H) mm
9 Display Driver IC JD79663AA -
10 View Direction All View O’Clock
11 Touch Driver IC NO Touch -
12 Display Color Black/White/Red/Yellow -
13 Gray Scale 1 Bit
14 Interface 3-wire SPI/4-wire SPI -
15 Module Connecting Type Connector (Pitch:0.5mm) -
16 IC Package Type COG -
17 Pins 24 Pins
18 Weight 9.86±0 g
19 Operating Temperature -0~40 ℃
20 Storage Temperature -25~70 ℃
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label

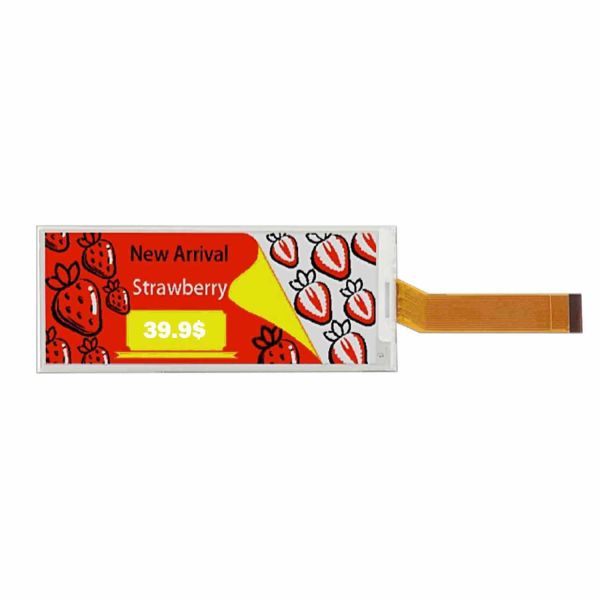

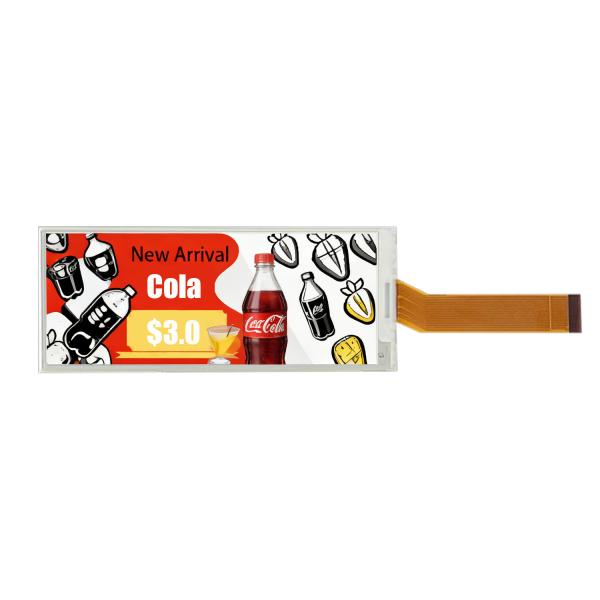

Product Overview

E0437 is a specific 4.37-inch electronic paper (E-paper) or E-ink display module. It stands out with its four colors of White/Black/Red/Yellow and a resolution of 176(H)x480(V) pixels. The module incorporates the JD79663A controller IC and can be easily connected to controller boards like Raspberry Pi, Arduino, Nucleo, and others through the SPI interface.

4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
Available E-Paper Display Models
Size (inch) Resolution Colors Operating Temperature Active Area (HxV mm) Outline Dimension (HxVxD mm) Interface
1.5'' 200x200 B/W 0-50℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.5'' 200x200 R/B/W 0-40℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.5'' Freezer 200x200 B/W -25~10℃ 27.0x27.0 31.8x37.32x1.0 3/4-wire SPI
1.54'' 152x152 B/W 0-50℃ 27.51x27.51 31.8x37.32x1.0 3/4-wire SPI
2.13" 122x250 B/W 0-50℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
2.13" 122x250 R/B/W 0-40℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
2.13" Freezer 122x250 B/W -25~10℃ 23.705x48.55 29.2x59.2x1.0 3/4-wire SPI
7.5" 800x480 B/W 0-50℃ 163.20x97.92 170.2x111.2x1.2 3/4-wire SPI
13.3" Color 1600x1200 Colors 0-50℃ 270.4x202.8 285.8x213.65x0.97 MCU

* Complete product range available with various sizes, resolutions, and color options

Applications

Electronic paper displays are widely used in smart retail labels, e-readers, industrial instruments, and low-power IoT devices due to their ultra-low power consumption and paper-like viewing experience. With excellent readability under sunlight and a wide viewing angle, E-paper technology provides a comfortable visual experience while significantly reducing energy usage. It is an ideal solution for applications requiring long battery life, stable image retention, and eco-friendly display performance.

4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
Key Features
  • Broad selection of off the shelf products
  • Sunlight readable options available
  • Capacitive and Resistive options available for every display
  • Most products are kept in stock and can ship same day
  • Multiple interfaces available
  • Customizable FPC cables, LED backlights, and bezels
4.37 Inch 176x480 Bar Type E Ink Display Epaper Screen Module for Electronic Shelf Label
Packaging
