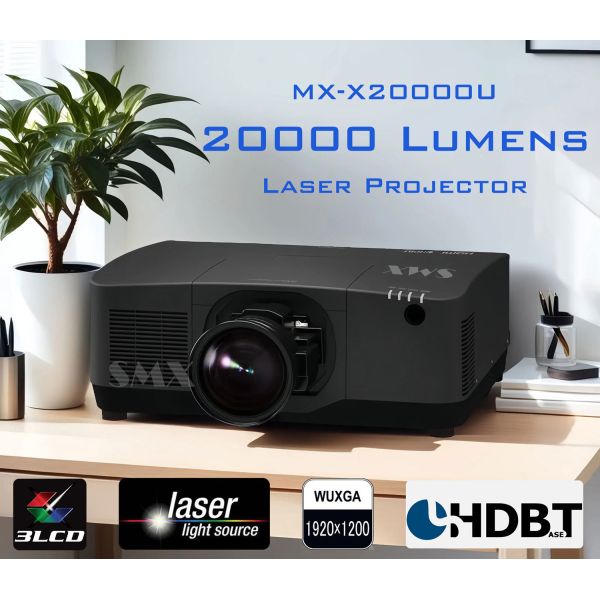

20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
Specifications
Brand Name :
SMX
Model Number :
MX-X20000U
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Supply Ability :
100000pcs/monthly
Delivery Time :
7-15days
Packaging Details :
Carton
Product Name :
3LCD Laser Projector
Birghtness :
20000 Lumen
Resolution :
1920 x 1080
Normal Mode :
20000hrs
Keystone :
Yes
Inputs :
HDMI, VGA, USB, Ethernet
Display Type :
3LCD
Lan Control :
Yes
Light Source :
Laser
Description
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
The 20,000 Lumen Laser Projector is built for high-impact projection in the most demanding environments. Designed to deliver ultra-bright, razor-sharp visuals, this powerhouse projector features an advanced laser light engine and supports WUXGA resolution (depending on model), making it ideal for large venues, auditoriums, outdoor events, and immersive installations.

Whether you're projecting onto massive screens or unconventional surfaces, this projector ensures stunning clarity, vibrant color reproduction, and consistent performance--even in bright ambient light.
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
Key Features
  • Ultra-High Brightness (20,000 Lumens) Exceptional visibility in large venues and well-lit spaces.
  • High Resolution WUXGA delivers sharp, detailed images with true-to-life color accuracy.
  • Laser Light Source Maintenance-free operation with up to 20,000 hours of consistent brightness and performance.
  • Edge Blending & Warping Support: Ideal for projection mapping, curved surfaces, and multi-projector setups.
  • Flexible Installation Supports 360° orientation, motorized lens shift, zoom, and a wide range of lens options.
  • Advanced Connectivity Compatible with HDBaseT, HDMI, 3G-SDI, and network control systems for seamless integration.

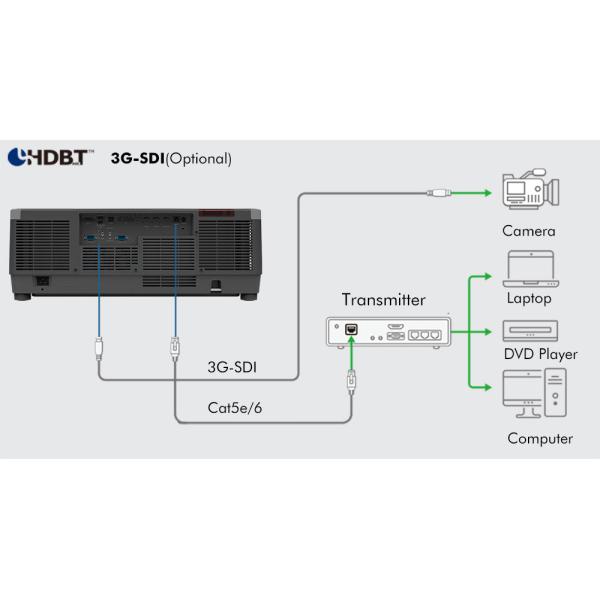

HDBT Connection
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
LAN Control
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
Specification
Model# MX-X20000U
Brightness(Lumen) 20,000
Overall Specifications
Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser Lifetime (Normal mode) 20000hrs
Laser Lifetime (ECO mode) 30000hrs
Projection Lens (STD)
Lens Model MX-EG12ZLM
Zoom/Focus Motorized
Throw Ratio (16:10) 1.24-2.01 @100inch
F 1.8-2.24
f 27.7-44.3mm
Zoom Ratio 1.62
Screen size 60-500 inch
Lens Shift V ±65%
Lens Shift H ±25%
Contrast Ratio(Min) 3,000,000:1
Noise(dB) Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity TYP:90%
Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal/16:6
Support a variety of optional lenses, flexible installation
A variety of optional lenses are suitable for different projection spaces and solutions to meet the different projection needs of customers.
Model# MX-EG05ZLM MX-EG06ZLM MX-EG08ZLM MX-EG12ZLM MX-EG20ZL OL-EG39ZLM
Image circle Φ34.6 Φ35.5 Φ37.9 Φ37.9 Φ37.9 Φ37.9
Lens Type Zoom Lens ST3 Zoom Lens ST2 Zoom Lens ST1 Zoom Lens STD Zoom Lens L1 Zoom Lens L2
Zoom/Focus Motorized Motorized Motorized Motorized Motorized Motorized
F#(Wide-Tele) 1.85-2.20 1.84-2.25 1.80-2.24 1.80-2.24 1.84-2.58 1.85-2.42(TBD)
f(mm) 12.0-14.6 14.4-19.1 19.0-27.6 27.7-44.3 43.8-86.0 86.8-163.5(TBD)
Throw ratio(16:10) 0.53-0.65 0.65-0.87 0.86-1.25 1.24-2.01 1.98-3.95 3.95-7.50(TBD)
Zoom Ratio 1.23 1.34 1.45 1.62 1.99 1.90(TBD)
Lens shift H ±20% ±20% ±25% ±25% ±25% ±25%
Lens shift V ±50% ±55% ±65% ±65% ±65% ±65%
Screen Size 60-500inch 60-500inch 60-500inch 60-500inch 60-500inch 60-500inch
Lens Shift
Lens shift allows you to adjust the projector's image position vertically or horizontally without tilting the unit, preventing distortion (keystone effect) and enabling flexible placement while maintaining image quality. This is especially useful for ceiling mounts or uneven setups.
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
Ideal Applications
  • Large auditoriums and conference halls
  • Outdoor projection and public displays
  • Museums, domes, and immersive environments
  • Houses of worship and performance venues
  • Simulation and visualization systems
20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
