12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
Specifications
Brand Name :
SMX
Model Number :
MX-X12000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Birghtness :
1,2000 Lumen
Contrast :
100,000:1
Display Technology :
Liquid Crystal Display
Light Source :
Laser
Native Resolution :
WUXGA(1920*1200)
Screen Size :
40-500 Inch
Light Source Life Time :
20000hrs
Len Type :
Zoom Lens
Zoom/Focus :
Manual
Throw Ratio :
1.46-2.95
Description
12000 Lumen 3LCD Laser Projector
The SMX MX-X12000U is a versatile 3LCD Laser Projector delivering 12,000 lumens of brightness for large venue applications. Featuring advanced laser light technology and a sealed optical engine with filter-less design, this projector offers exceptional color reproduction, low maintenance, and quiet operation.
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
Key Features
  • 12,000 Lumen High Brightness with Vivid Colors
  • Support for 4K High-definition Input
  • Advanced Keystone Correction for Installation Flexibility
  • 20,000 Hours Ultra-long Life Laser Light Source
  • Centralized LAN Control for Efficient Management
  • Built-in HDBaseT Support

Application Areas
  • Large Venue Projection
  • Immersive Room Environments

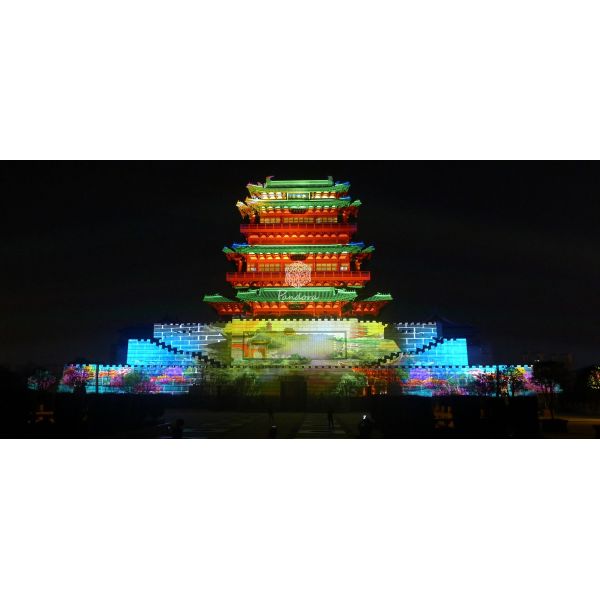

  • 3D Mapping Projection
  • Exhibition & Museum Projection
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection

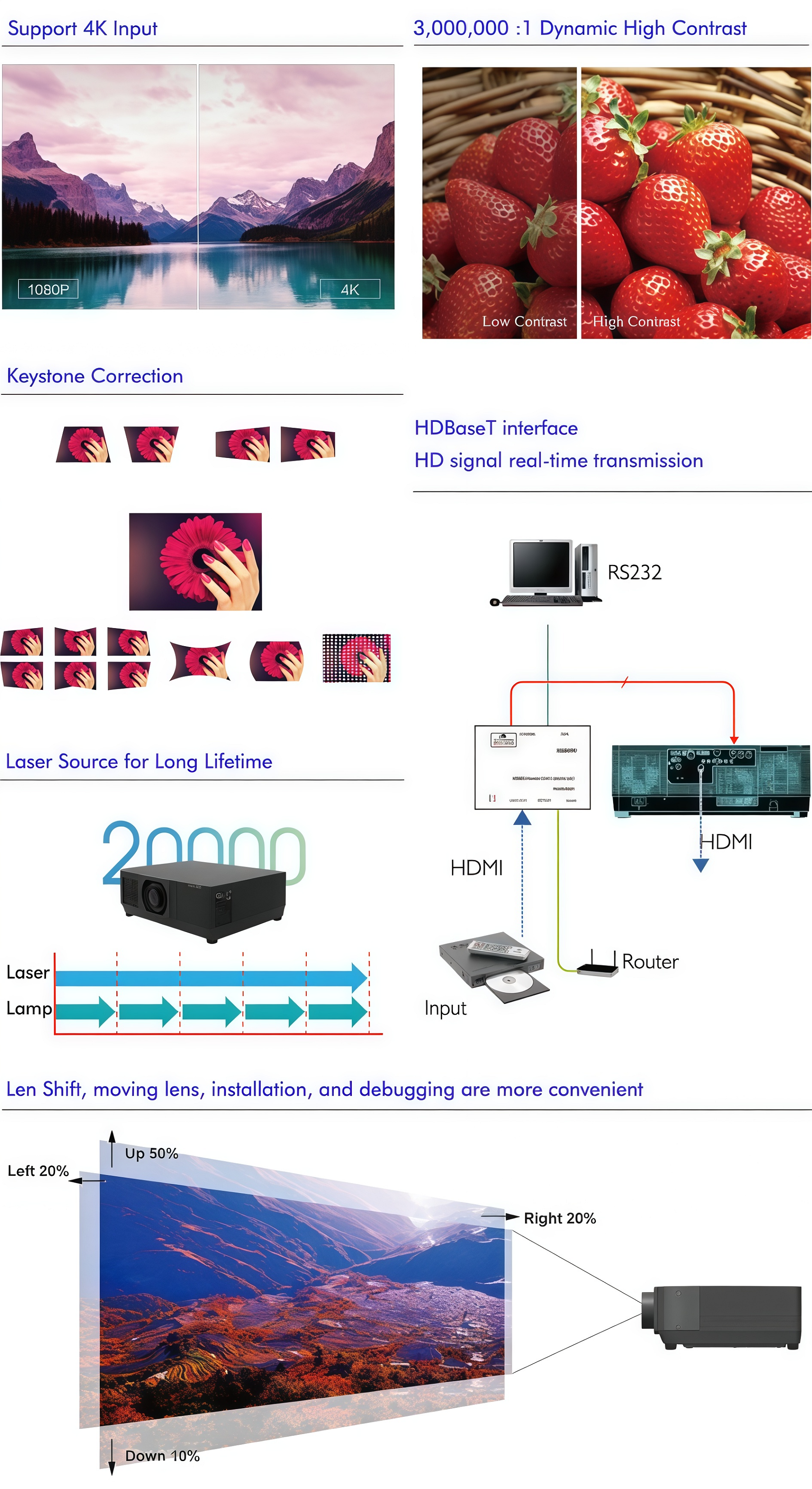

Advanced Installation Features
Lens Shift Capability
The MX-X12000U allows lossless panning of the image through menu controls. Maximum vertical adjustment: 50% upward, 10% downward. Maximum horizontal adjustment: ±20%.
360° Flexible Installation
Supports full 360° projection capability with lossless image translation through menu adjustments for easy positioning.
Built-In HDBaseT Support
Enables real-time transmission of high-definition signals up to 100 meters, simplifying engineering wiring and improving system stability in complex installation environments.
Advanced Keystone Correction
Comprehensive correction options including horizontal & vertical keystone, hexagonal correction, pincushion, barrel distortion correction, and multi-point keystone correction for optimal imaging on irregular surfaces.

With 12,000 lumens output, the MX-X12000U delivers vivid and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture theaters, galleries, simulation experience venues, and other large spaces.

12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
Technical Specifications
Model No. MX-X12000U
Brightness 12,000 ANSI Lumens
Light Source Laser
Display Technology 3LCD Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light Source Lifetime 20,000 hours (Normal & ECO modes)
Throw Ratio 1.46-2.95 (16:10)
Zoom Ratio 2x
Contrast Ratio 100,000:1 (Minimum)
Noise Level Normal (90%): 35dB, ECO1 (75%): 32dB, ECO2 (45%): 32dB
Input Ports VGA (x1), HDMI 1.4 (x2), USB-A (x1), USB-B (x1), RJ45 (x1), DVI-D (x1), HD BaseT (x1), Audio in (x1)
Output Ports VGA (x1), HDMI 1.4 (x1), Audio out (x1)
Control Ports RS232 (x1), RJ45 Control (x1), USB-B Upgrade (x1), Wired Remote (IN/OUT)
Keystone Correction Vertical: ±30°, Horizontal: ±30°, plus advanced correction features
Dimensions 600 x 218 x 503 mm (W x H x D)
Net Weight ~25 kg
12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection 12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection 12000 Lumen WUXGA Resolution 3LCD Laser Projector with 360° Installation for Large Venue Projection
