SMX 12000 Lumen 3LCD Laser Large Venue Projector with WUXGA Resolution
Experience unparalleled visual performance with our SMX MX-12000U 12000 Lumen High Brightness Laser Projector, engineered for professional 3D mapping applications. This advanced projector delivers exceptional brightness and image clarity with WUXGA resolution, creating immersive visual experiences in large venues.
Key Features
- Professional-Grade Brightness: 12,000 lumens output ensures vivid, clear projections even in brightly lit environments
- Precision Color Reproduction: Advanced color calibration technology delivers true-to-life colors with exceptional vibrancy
- High-Definition Resolution: WUXGA (1920 x 1200) native resolution captures every detail for crystal-clear imagery

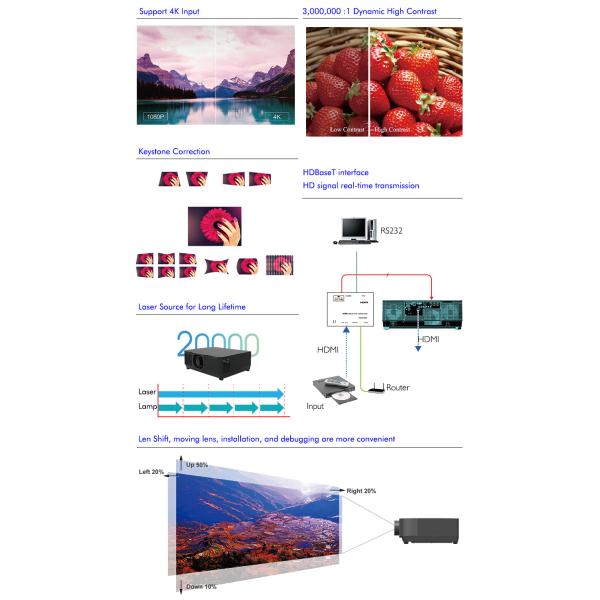

- Comprehensive Connectivity: Multiple input ports, including HDMI, VGA, HD-SDI, and HDBaseT, for flexible source switching
- Adaptable Installation: Compatible with various lenses and mounting options to suit diverse venue requirements
Technical Specifications
| Model Number |
MX-X12000U |
| Brightness |
12,000 ANSI lumens |
| Light Source |
Laser (20,000 hours lifespan) |
| Display Technology |
3LCD (3x0.76" panels) |
| Native Resolution |
WUXGA (1920 x 1200) |
| Contrast Ratio |
3,000,000:1 |
| Projection Lens |
Zoom Lens (1.46-2.95 throw ratio) |
| Input Ports |
VGA, HDMI 1.4 (x2), USB, DVI-D, HDBaseT, HD-SDI (optional) |
| Control Options |
RS232, RJ45, LAN Control (Crestron, AMX, PJ Link) |
| Advanced Features |
360° projection, edge blending, geometric correction |
| Dimensions |
600 x 218 x 503 mm (WxHxD) |
| Weight |
~25 kg |
Included Accessories
- Power cord (3m, Black)
- Remote control
- HDMI Cable
- User manual (English/Chinese)
