Specifications
Place of Origin :
China
Backlight type :
8 LEDs in series
Brand Name :
ORIENTRONIC
Supply Voltage :
5V (default 5V; if 3.3V is required, please refer to the specifications for modification)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Size :
4.3-inch IPS display
Touch type :
Three options available: no touch, resistive touch, capacitive touch (5-point touch)
Delivery Time :
4~6 Working Days
Control chip :
NV3047
Interface type :
RGB888/666/565
PCB module dimensions :
Without touch (118.5 (W) × 67.25 (H) × 4.6 (T) mm (excluding connector thickness)), Resistive touch (118.5 (W) × 67.25 (H) × 5.8 (T) mm (excluding connector thickness)), capacitive touch (118.5 (W) × 67.25 (H) × 5.8 (T) mm (excluding connector thickness))
Storage Temperature :
-30 to 80°C
Packaging Details :
Prices are set based on design and quantity.
Resolution :
480 (RGB) x 272; display orientation is adjustable, supporting both landscape and portrait modes
Viewing Angle :
Full viewing angle
Supply Ability :
Design based on the product
Display area :
95.04 (W) x 53.86 (H)
Current :
30mA
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Operating Temperature :
-20 to 70°C
Material :
TFT LCD
Description

4.3-inch color TFT screen size

4.3-inch, NV3047-driven, 480×272 TFT high-definition display module, available in non-touch or touchscreen versions

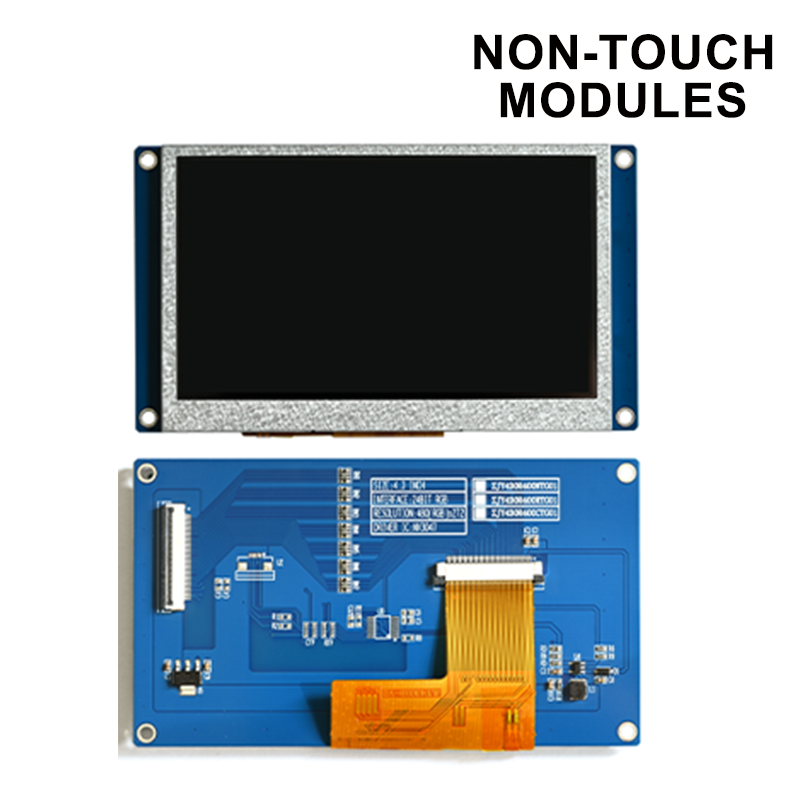

4.3-inch Non-Touch Module Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display module, available in non-touch or touchscreen versions

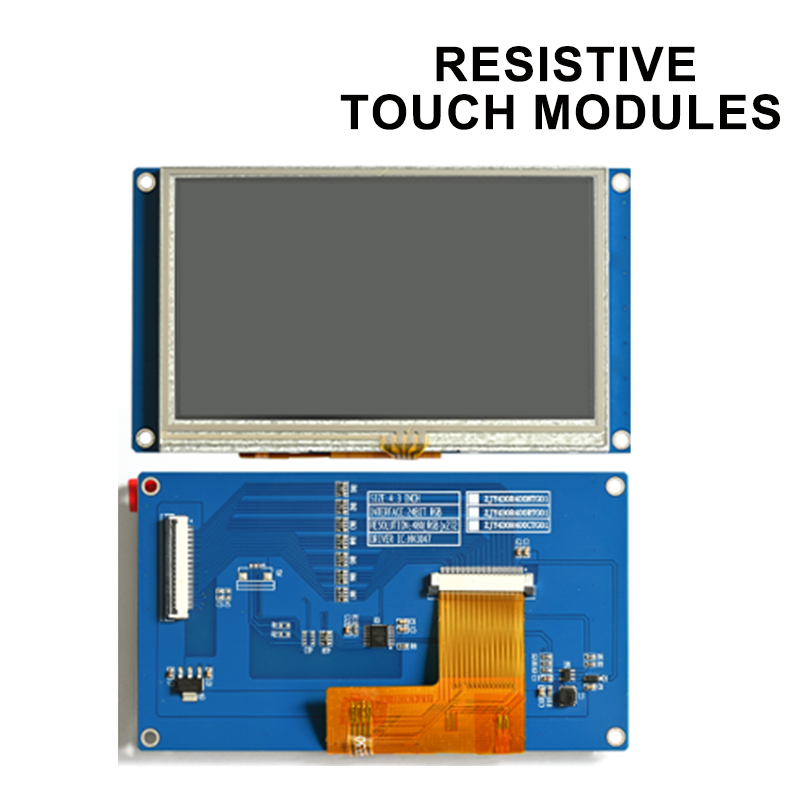

4.3-inch Resistive Touch Module Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display module, available in non-touch or touchscreen versions

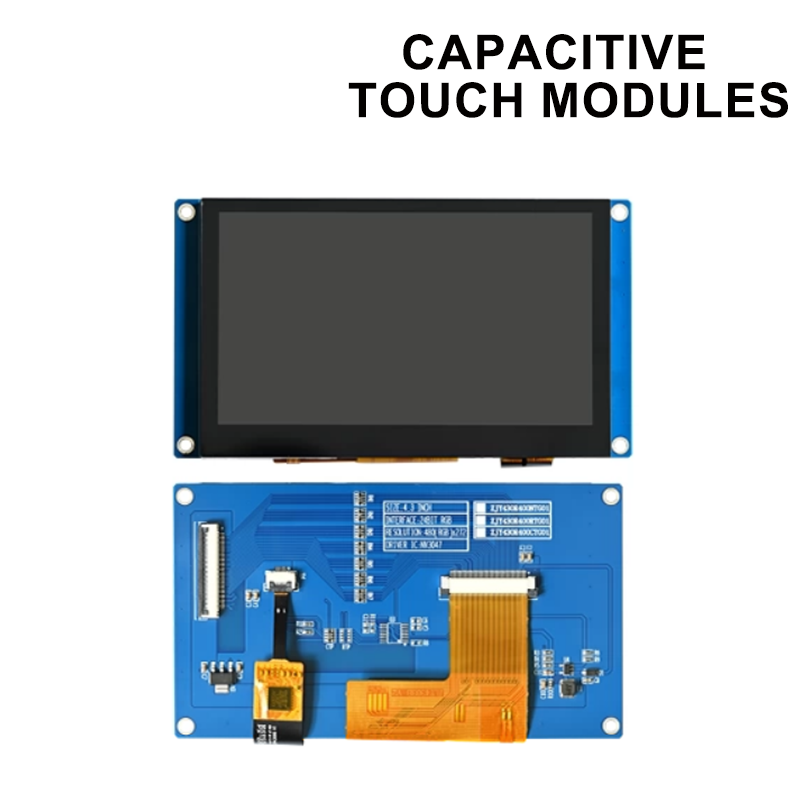

4.3-inch Capacitive Touch Module Product Details

4.3-inch, NV3047-driven, 480×272 TFT high-definition display module, available in non-touch or touchscreen versions

4.3-inch module display interface definition

No. Without touch module Resistive touch module Capacitive touch module
1 VCC5V VCC5V VCC5V
2 VCC5V VCC5V VCC5V
3-10 RO-R7 R0-R7 RO-R7
11 GND GND GND
12-19 G0-G7 G0-G7 G0-G7
20 GND GND GND
21-28 B0-B7 B0-B7 B0-B7
29 GND GND GND
30 CLK CLK CLK
31 HSYNC HSYNC HSYNC
32 VSYNC VSYNC VSYNC
33 DE DE DE
34 LCD BLK LCD_BLK LCD BLK
35 NC RTP CS CTP RST
36 NC RTP MOSI CTP SDA
37 NC RTP MISO NC
38 NC RTP CLK CTP SCL
39 NC RTP INT CTP INT
40 NC NC NC
