Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.47-inch IPS color LCD
Resolution :
172 (H) RGB x 320 (V)
Interface type :
SPI interface
Font type :
Supports GB2312 font library
Control chip :
ST7789
Font library chip :
GT30L3254W
Key features of this screen :
High-definition IPS display, adjustable viewing angle
Display color :
Colorful
Display area :
17.3892 (H) x 32.352 (V)
Panel dimensions :
19.39 (H) x 36.28 (V) x 1.46 (D)
Overall dimensions :
30.00 (H) x 37.00 (V) x 2.76 (D) (excluding pins)
Pixel pitch :
0.0337 (H) x 0.1011 (V)
Pin count :
10 pins (2.54mm pitch)
Viewpoint direction :
Full perspective
Working temperature :
-20 to 70 degrees
Logic voltage :
3.3V
Backlight type :
3 White LED Parallel
Brightness :
350 (TYP) Cd/m2
Connection method :
2.54mm pitch pin connector
Description

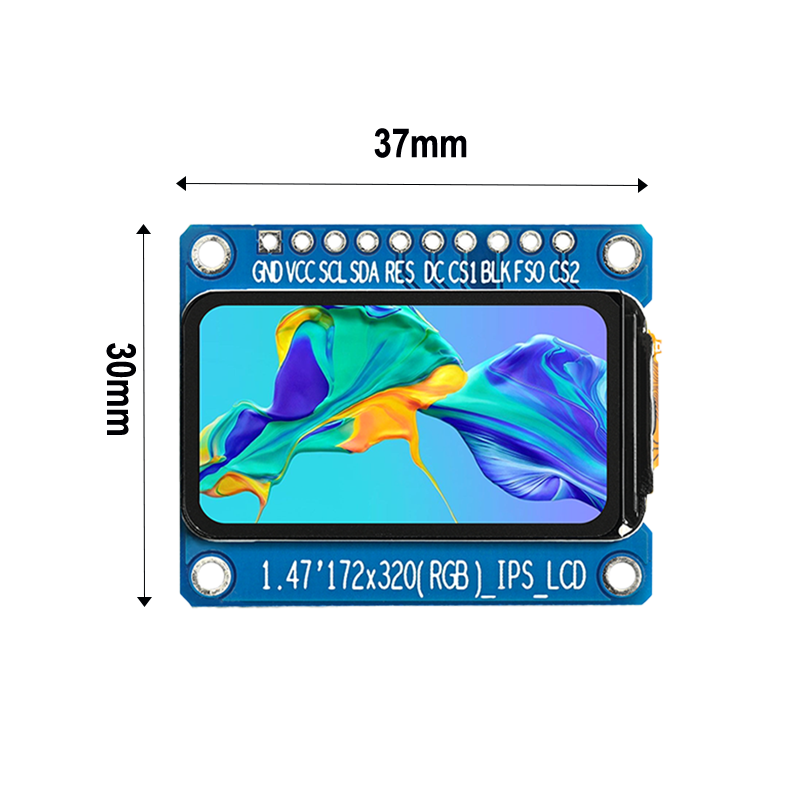

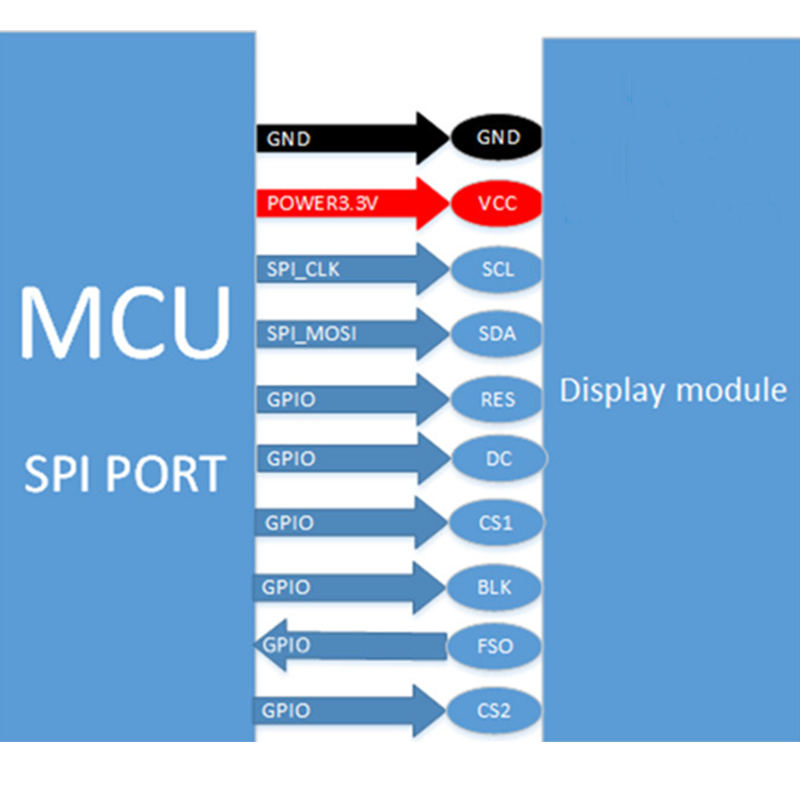

Module Interface Definition

Sequence Number Symbol Function Description
1 GND Power ground
2 VCC Power supply: 3.3V
3 SCL SPI clock line
4 SDA SPI data line
5 RES Display screen reset pin
6 DC Data/Command Selection Script
7 CS1 Display screen chip select, with low level being the effective signal
8 BLK LCD backlight control: By default, it can be left in an unconnected state. Low voltage will turn off the backlight
9 FSO Output of font library data
10 CS2 Chip select for font library chip

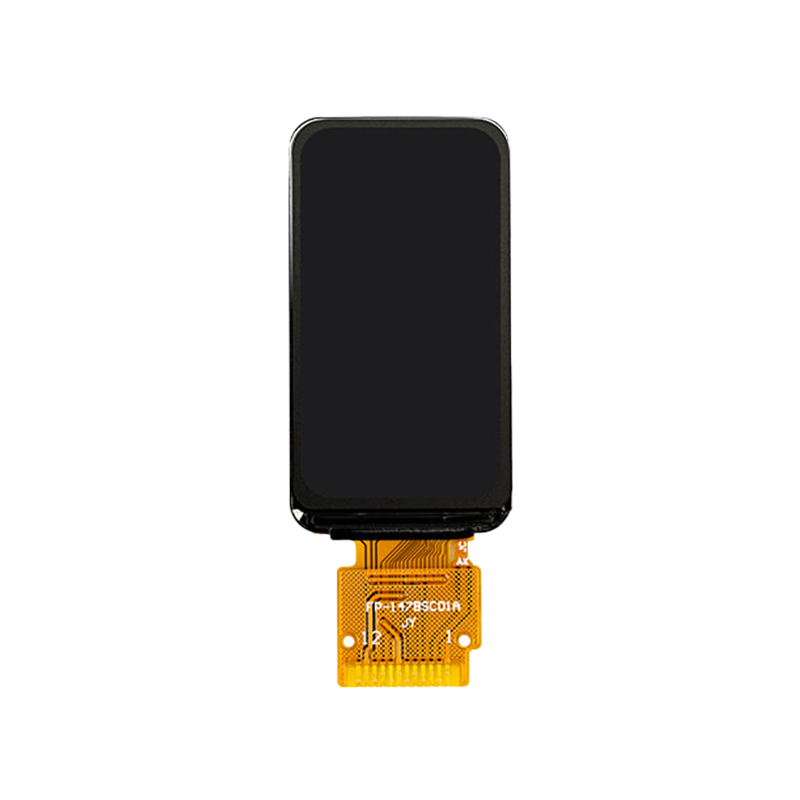

Corresponding screen

1.47-inch high-definition IPS display module with ST7789 driver, featuring a resolution of 172x320, equipped with a character library, and the display direction can be adjusted,segment lcd display,seg

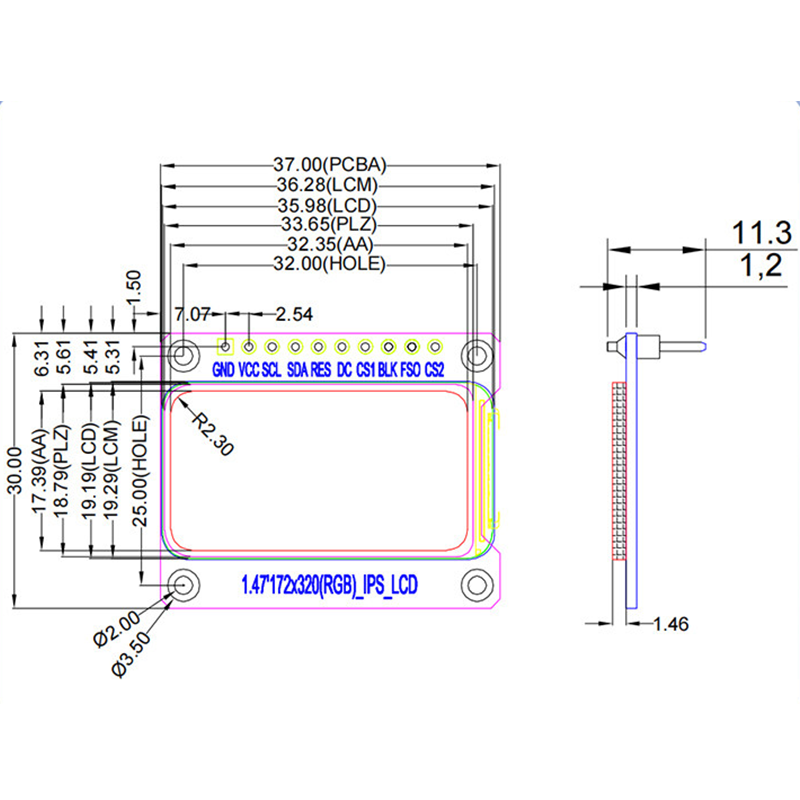

Module size

1.47-inch high-definition IPS display module with ST7789 driver, featuring a resolution of 172x320, equipped with a character library, and the display direction can be adjusted,segment lcd display,seg

Structural drawing

1.47-inch high-definition IPS display module with ST7789 driver, featuring a resolution of 172x320, equipped with a character library, and the display direction can be adjusted,segment lcd display,seg

Circuit diagram

1.47-inch high-definition IPS display module with ST7789 driver, featuring a resolution of 172x320, equipped with a character library, and the display direction can be adjusted,segment lcd display,seg
