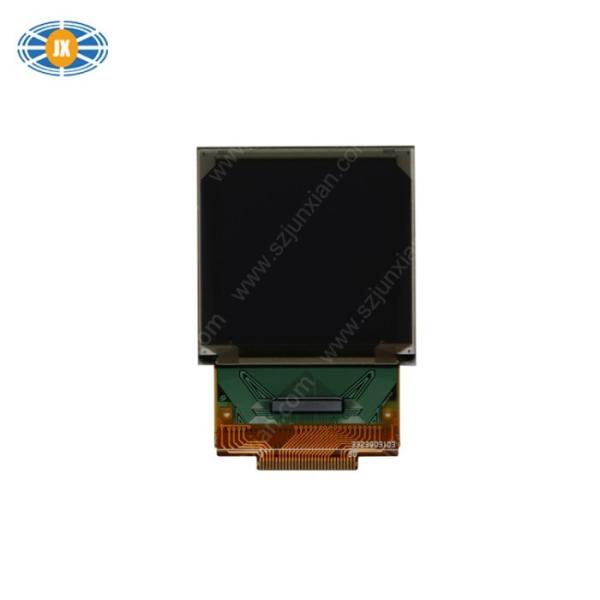

1.46 Inch Color OLED Display Module with 8 Bit Parallel LCD Interface 30 Pins 128x128 LCD Screen

Specifications

Brand Name :

Junxian or Customizable

Model Number :

JM-PO128

Certification :

ROHS,GB/T19001-2016/IS09001:2015

Place of Origin :

Shenzhen,China

MOQ :

5 sets

Price :

Negotiable

Payment Terms :

L/C,T/T,Paypal

Supply Ability :

200000 pieces per month

Delivery Time :

1-4 weeks

Packaging Details :

Standard Exportation Package

Name :

Color OLED Display Module

LCD Interface :

8-bit for parallel

Resolution :

128×128 Pixels

LCD Size :

33.5mmX49.83mm X1.61mm

Visual Area :

26.279mm X26.284mm

Control driver :

SSD1351

Pin Number :

30 Pins

Display Color :

colorful

perspectives :

All Viewing Angles 80/80/80/80

LED Lifetime :

40,000 hours

Contrast Ratio :

2000 : 1 ( Dark Room Contrast )

Description

Customized1.46 Inch Color OLED Display With An 8 Bit Parallel LCD Interface 30 Pins 128×128 Lcd Screen

What is OLED Display Modules?

An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.

1. Product Features

(1) Self - Emissive Technology:

As an OLED display, it utilizes self - emissive technology. Each pixel emits its own light, eliminating the need for a backlight and enabling thinner designs, faster response times, and better power efficiency.

(2) Colorful Display:

It is a full - color display, providing a rich and vibrant color palette to meet the diverse needs of various applications, rather than having limited color options like specific single colors.

(3) Compliance:

Compliant with REACH & RoHS standards and holding the GB/T19001 - 2016/IS09001:2015 certificate, it ensures high - quality manufacturing and environmental friendliness.

2. Product Specifications

Interface: Comes with an 8 - bit parallel LCD interface for seamless connectivity.

Size: Compact in design, measuring 33.5X49.83X1.61mm, with a visual area of 26.279X26.284mm.

Pin Number: Equipped with 30 pins to guarantee reliable electrical connections.

Temperature Range: Capable of operating within - 40℃ to +70℃ and can be stored between - 40℃ to +85℃.

3.Key Parameters

Resolution: It features a crisp 128×128 Pixels resolution, delivering clear and detailed imagery.

Viewing Angles: With all - around viewing angles of 80/80/80/80, it ensures excellent visibility from every direction.

Contrast Ratio: Boasting an impressive 2000:1 (Dark Room Contrast) ratio, it offers vivid colors and deep blacks for a truly immersive visual experience.

4. Product technical parameters

Keywords:	1.46-inch Monochrome Dot Matrix OLED
Resolution:	128×128 Pixels
LCD Interface:	8-bit for parallel
LCD Size:	33.5X49.83X1.61mm
Visual Area:	26.279X26.284mm
Pin Number:	30 Pins
Control driver:	SSD1351
Operating Temp:	-40℃～＋70℃
Storage Temp:	-40℃～＋85℃
Display Type:	outstanding
perspectives:	All Viewing Angles 80/80/80/80
Backlight:	white light
Display Color:	colorful
Contrast Ratio:	2000 : 1 ( Dark Room Contrast )
Certificate:	GB/T19001-2016/IS09001:2015
Compliance:	REACH & RoHS Compliant

5. Product in details:
