Compact 1.54 Inch OLED Display Module Power Efficiency LCD Monitor With 128×64 Dot

Specifications

Brand Name :

Junxian or Customizable

Model Number :

JM-PO139-01

Certification :

ROHS,GB/T19001-2016/IS09001:2015

Place of Origin :

Shenzhen,China

MOQ :

5 sets

Price :

Negotiable

Payment Terms :

L/C,T/T,Paypal

Supply Ability :

200000 pieces per month

Delivery Time :

1-4 weeks

Packaging Details :

Standard Exportation Package

LCD Interface :

6800/8080 parallel, 4-wire SPI

Resolution :

128×64 Pixels

LCD Size :

42.04mm×27.22mm×1.41mm

Visual Area :

37.052mmx 19.516mm

Control driver :

CH1116

Pin Number :

24 Pins

Display Color :

White, Yellow, Blue

perspectives :

All Viewing Angles

LED Lifetime :

40,000 hours

Name :

OLED Display Module

Description

Custom & OEM 1.54-inch OLED Display Module Compact Design & Power Efficiency Lcd Monitor With128×64 Dot

What is OLED Display Modules?

An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.

1. Product Introduction

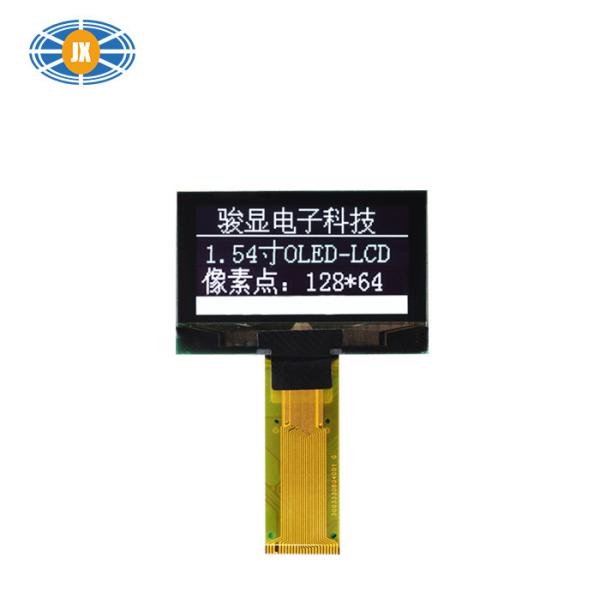

The 1.54-inch JM-PO149-OL12864NIN0154 OLED display module combines high-performance features for versatile applications. With a 128×64 dot matrix and monochrome display, it offers a crisp visual experience with an 86% aperture rate, 2000:1 contrast ratio, and 160° wide viewing angle, ensuring clear visibility from various perspectives.

2. Key Features

Multiple Interfaces: Supports 6800/8080 parallel, 4-wire SPI, and I2C interfaces, enabling flexible integration with different systems.

Robust Performance: Driven by CH1116 IC, it operates stably at -40°C to 70°C and stores safely at -40°C to 85°C, suitable for harsh environments.

Compact Design: With dimensions of 42.04×27.22×1.41mm, it fits space-constrained devices.

Reliability Assured: Passed high/low-temperature, humidity, and vibration tests, ensuring long-term durability.

Power Efficiency: Low-power consumption in sleep mode (10μA) and optimized power supply (VDD: 1.65-3.3V, VCC: 11.5-12.5V).

3. Product technical parameters

Keywords:	1.54-inch Monochrome Dot Matrix OLED
Resolution:	128×64 Pixels
LCD Interface:	6800/8080 parallel, 4-wire SPI,
LCD Size:	42.04×27.22×1.41mm
Visual Area:	37.052x 19.516mm
Pin Number:	24 Pins
Control driver:	CH1116
Operating Temp:	-40℃～＋85℃
Storage Temp:	-40℃～＋85℃
Display Mode:	Passive Matrix
perspectives:	All Viewing Angles
Display Color:	White, Yellow, Blue
Certificate:	GB/T19001-2016/IS09001:2015
Compliance:	REACH & RoHS Compliant

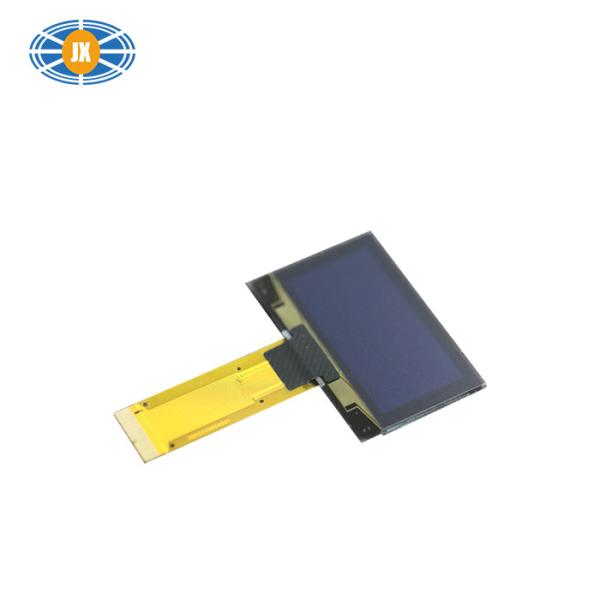

4. Product in details:
