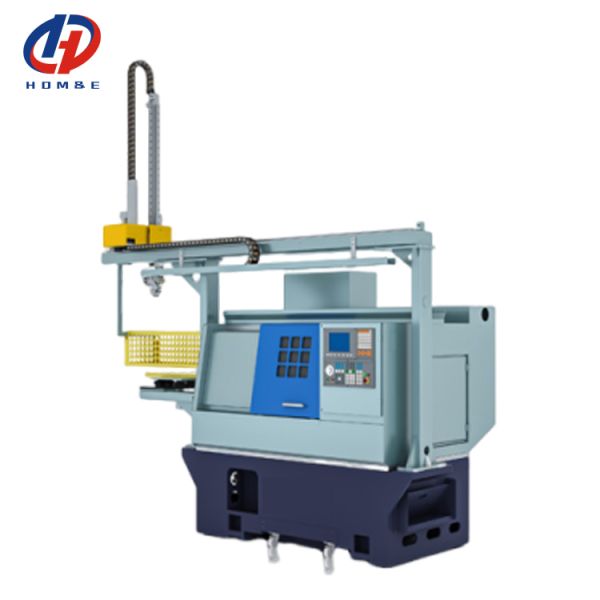

High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
Specifications
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Z axis travel :
300
Brand Name :
HD
Delivery Time :
45-60 days
Spindle speed :
2500 r/min
Key word :
CNC Lathe With Gantry Loader
MOQ :
1
Y axis travel :
300
Payment Terms :
T/T,L/C,Western Union
Model :
FL300
Place of Origin :
CHINA
Model Number :
FL300
Supply Ability :
50 sets per month
Certification :
CE ISO certification
Max. swiming dia.over bed :
Φ300
Description

High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader

Product Description:

High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
This high speed & high precision CNC lathe comes with an integrated gantry loader, designed for fully automated production lines. It delivers stable, precise machining with efficient automatic loading and unloading, greatly improving productivity while reducing labor costs. Ideal for mass production of precision components in automotive, hardware and general manufacturing.

Product Features:

  1. high speed, high precision, enhancing the productivity and quality.
  2. It can machine workpieces all day continuously to save manpower.
  3. Dual-spindle adopts servo control, with superiority in high speed and high precision for single blank workpiece loading.
  4. It can work with different types of feeder station based on customer’s feeding requirement on blank materials.
  5. Gantry Loader uses remote control interface, owing professional hand –held touchscreen with clear interface, fool-proof design, and guide with teaching.
  6. Gantry Loader is on top of machine. The design can extend lifetime of auto loading /unloading system and decrease the consumption cost.
  7. Various possibilities for production line lineage according to process plan.

Product Details:

High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader High Speed High Precision Automation Production Line CNC Lathe With Gantry LoaderHigh Speed High Precision Automation Production Line CNC Lathe With Gantry LoaderHigh Speed High Precision Automation Production Line CNC Lathe With Gantry Loader
Industry application:

High Speed High Precision Automation Production Line CNC Lathe With Gantry Loader

Product Paramenters:

Specifications Unit FL280 FL300 FL400
Capacity Chuck/collet type Pneumatic collet/ Hydraulic collet Pneumatic collet/ Hydraulic collet Manual chuck 8"/Hydraulic chuck 8", *6"
Bed type/ guideway
Flat/LM Flat/LM Flat/LM
Max. swing dia. over bed mm Φ300 Φ300 Φ400
Max. length of workpiece mm 250(collet),*165 (chuck) 300, 180(chuck) *260 (chuck) 320
Max. swing dia. over slide mm Φ140 Φ140 Φ180
Spindle Spindle bore mm Φ48 Φ48 Φ62
Max. dia. of through hole mm Φ41 Φ40 Φ52
Spindle nose
A2-5 A2-5 A2-6
Spindle speed rpm 3000/4500 3000/4500 2000/4000
Max. power of spindle kW 5.5 5.5/7.5 7.5
Axis X/Z travel mm 280/250 350/300 380/350
X/Z rapid traverse mm/min 15/15;25/25 25/15;25/25 20/20
Toolpost Type
Gang type/4-station toolpost Gang type
/4-station toolpost
/8-station turret		 4-station toolpost
/8-station turret
/Gang type tooling
No. of tool stations No. 4 6 4 10 4 10
Others Power capacity kVA 8 9 11
Dimensions (L×W×H) mm 1980×1450×1800 2110×1600×1800 1950×1250×1620
Weight(about) kg 1400 2000 2000

OUR Service:

Ensure you receive a high quality machine

  1. Every parts need be inspected
  2. Over 100 production process control
  3. Over 200 inspection items
  4. Sample processing of each machine
  5. 72 hours trial run before delivery

Why Choose Us:

  • Top quality sense, customers' requests come first
  • 30 years + R & D history, the company was founded in 1993
  • High-tech manufacturer with research anddesign capacity
  • Stable and mature supplying system
  • Young active sales and engineers for instant services(24 hours online)
  • Upgrading on mechanism according to ergonomics and easy maintenance
  • Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
