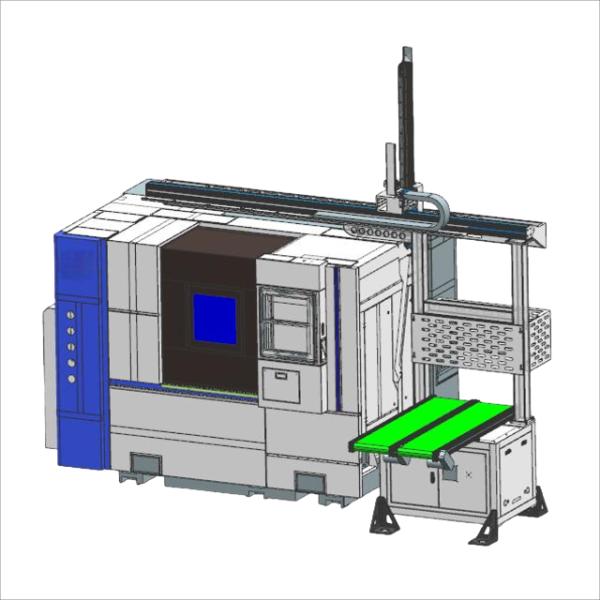

High Speed CNC Lathe High Precision Automation Production Line Equipped with Gantry Loader
This standalone automatic CNC machine tool integrates efficient processing and intelligent operation, realizing one-person multi-machine management and unmanned production. With stable performance, high precision and fast processing speed, it effectively reduces labor intensity and improves production consistency. Suitable for batch processing of standard parts and complex parts in hardware, auto parts and general machinery industries.

1. high speed, high precision, enhancing the productivity and quality.
2. It can machine workpieces all day continuously to save manpower.
3. Dual-spindle adopts servo control, with superiority in high speed and high precision for single blank workpiece loading.
4. It can work with different types of feeder station based on customer’s feeding requirement on blank materials.
5. Gantry Loader uses remote control interface, owing professional hand –held touchscreen with clear interface, fool-proof design, and guide with teaching.
6. Gantry Loader is on top of machine. The design can extend lifetime of auto loading /unloading system and decrease the consumption cost.
7. Various possibilities for production line lineage according to process plan.

Flip Worktable:

For double-sided workpiece machining.

Pneumatic flipping station installed mid-process to simplify machining sequence.

Gripper end effector:

1,Pneumatic gripper end effector clamps workpieces securely.
2,Gantry arm travels along linear rails to move gripper cylinders and clamping jaws.

3,Adjustable serrated jaws suit various models of similar parts.

4,Gripper outline shown for reference only.

Bin Specification:

1,Adopt conveyor belt feeding mode
2,Fast feeding speed with superior positioning accuracy
3,Safer workpiece replacement for operators
4,Easy workpiece placement to avoid collision; convenient switching between different workpieces
5,Conveyor: belt width 350 mm, total length 1500 mm, compatible with various workpieces
6,Taking the blank workpiece (50 mm diameter) as an example, maximum loading capacity: 30 pcs
7,Customizable conveyor length available
8,The belt prevents scratches and shock damage, protecting workpieces with strict surface appearance requirements
9,Workpieces must be uniform; manual inspection is required

Automation Solution:

Industry application:

Ensure you receive a high quality machine

1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

• Top quality sense, customers' requests come first
• 30 years + R & D history, the company was founded in 1993
• High-tech manufacturer with research anddesign capacity
• Stable and mature supplying system
• Young active sales and engineers for instant services(24 hours online)
• Upgrading on mechanism according to ergonomics and easy maintenance
• Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
