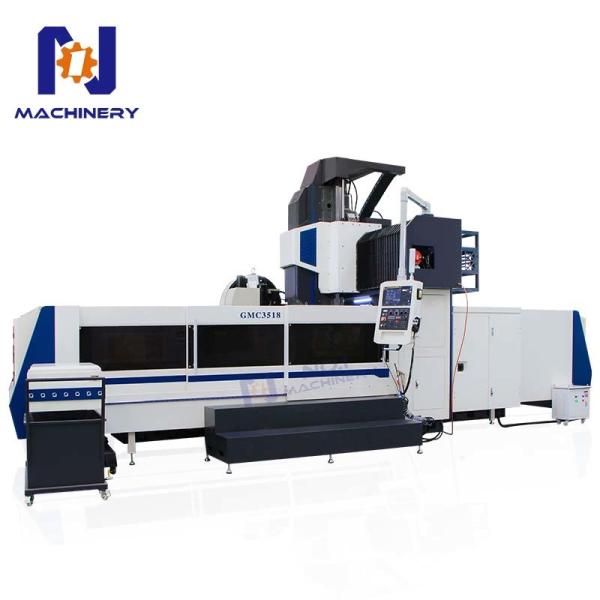

GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
GMC3518 CNC Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC3518
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
830000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1600X3700
X/Y/Z Axis stroke（mm） :
3500*1900*1000
Width of gantry(mm) :
1900
high of gantry(mm) :
1300
Distance from spindle end face to work table (mm) :
200-1000
Spindle Specifications (Model/Installation Diameter) :
BT50-Φ190
T-shaped groove for table(mm) :
9-22X180
Description
GMC3518 Cnc Gantry Machining Center 3.5 Meter Fanuc Control System Metal Milling Machine
Product Description:
The GMC3518 is a high-precision, high-efficiency gantry machining center featuring premium castings and precision roller guides for outstanding rigidity. Equipped with high-torque spindle and intelligent CNC system supporting 4-axis 5-axis machining, it's ideal for precision processing of large complex components in aerospace and mold manufacturing industries.
Standard Configuration:

Syntec 22MA CNC control system

BT50 Taiwan 6000 RPM spindle

Taiwan HIWIN precision ball screws

Taiwan HIWIN 3-axis roller linear guides

Taiwan OKADA 24-disc ATC

Electrical cabinet air cooling exchanger

Detailed Configuration:
spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI
coupling:R+W
Product Specification:
Item Model
Unit
GMC2518
GMC3018
GMC3518
Size of worktable
mm
1600x2500
1600x3000
1600X3500
Table move direction stroke(X)
mm
2500
3000
3500
Spindle slide moving direction stroke(Y)
mm
1800(Tool change stroke 2000)
1800(Tool change stroke 2000)
1800(Tool change stroke 2000)
Spindle up and down move direction stroke(Z)
mm
1000
1000
1000
Width of gantry
mm
1800
1800
1800
High of Gantry
mm
1300
1300
1300
Distance between spindle end face and worktable surface
mm
150-1150
150-1150
150-1150
T-shaped groove for table
mm
9-22X180
9-22x180
9-22X180
Spindle specifications
-
BT50/φ190
BTS0/φ190
BT50/φ190
Spindle transmission mode
-
Speed 6000r／min pulley ratio standard 1:1(optional 1.5:1)
Speed 6000r／min transmission 4:1
Maximum speed 6000r／mintransmission 4.4:1
Fast moving feed speed
m
15
15
15
Cutting feed rate
m
10
10
10
X/Y/Z axis ball guide gauge/pitch
mm
X:6312,Y:5010;Z:5010
X:8020,Y:5010;Z:5010
X:8016,Y:5010;Z:5010
X/Y/Z axis guide gauge/slider quantity
-
X axis: roller guide 55／8
Y axis: roller guide 5／4
Z axis: rectangular slide
X axis: roller guide 55／10
Y axis: roller guide 55／4
Z axis: rectangular slide
X axis: roller guide 55／10
Y axis: roller guide 55／4
Z axis: rectangular slide
X/Y/Z axis servo motor drive mode and drive ratio
-
X, Y, Z axes are directly connected
X-axis planetary reducer 4:1；Y, Z-axis direct connection
Spindle motor recommended
kw
22kwwide area motor
22kw wide area motor
22kw wide area motor
X/Y/Z three-phase servo motor recommended
-
x:38,Y:30,Z:30
(Brake)
x:38:Y:30:Z:30
(Brake)
X:38:Y:30:Z:30
(Brake)
Dimension of optical machine
mm
6750X3160X3961
7705X3160X3961
8705X3160X3961
Load-bearing table
T
7
8
9
Light machine weight
T
21
23.5
26
Details Display:
