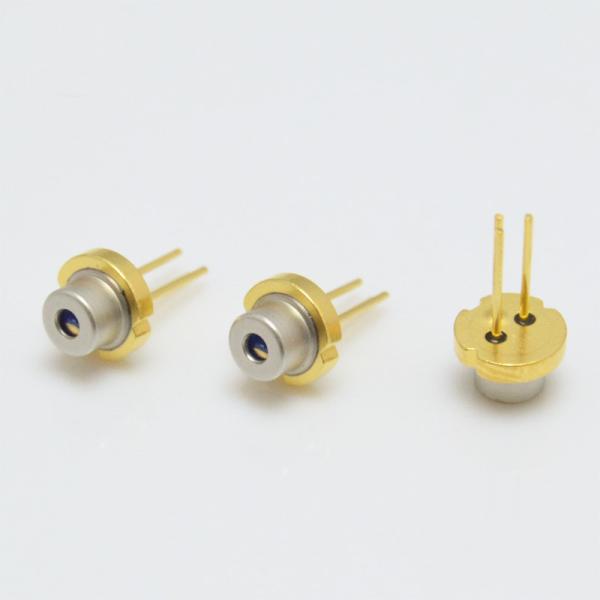

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical
UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical
UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical
UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical
Specifications
Brand Name :
Xinland
Model Number :
Laser Diode
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
100pcs/fanti-static box
Name :
Laser Diode
Laser color :
Purple
Wavelength :
375nm
Power :
200mw
Operating Voltage(TyP.) :
4.5V
Operating Current (TyP.) :
320mA
Description

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

Features:
375nm High Output Power

5.6mm Package

Multimode Laser Diode
Applications:
Medical Laser Treatment

Printing
Others

 UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

Specifications:

PARAMETER SYMBOL VALUE UNIT
Reverse Voltage 2.0 V
Operating Temperature Top +15~+30 ℃
Storage Temperature Tstg -40~+85
Lead soldering temperature (10 sec.) Tis 260 ℃

Specifications XLD-375-200m-1
Min Type Max
Center Wavelength@25℃ 375nm±10nm
Spectral Width (FWHM) 2.0nm
Output Power (CW) ---- 200mW
Beam Divergence (FWHM) ---- 35°⊥x 15°// 45°⊥x 25°//
Threshold Current (Typ.) ---- 200mA 300mA
Operating Current (Typ.) 320mA 400mA
Operating Voltage ---- 4.5V 6.0V
Slope Efficiency ---- 1.3mW/mA ----
Recommended Operating Temperature 25 ℃
Package Style 5.6mm

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical
