1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
Specifications
Brand Name :
XINLAND
Model Number :
XLD-1470 Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi
MOQ :
100pcs
Price :
Negotiated
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Wavelength :
1470nm
Output Power :
1/3W
Package Type :
C-mount/TO3/E-Mount/H-Mount
FAC :
Optional
Mode Type :
Multimode
Description

1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
Laser Diode Widely Used​​:

  • Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses high-energy-density lasers to locally irradiate the workpiece to vaporize or change the color of the surface material, thereby leaving a permanent mark.
  • The types of products that can be provided include: single-mode laser diodes, multi-mode laser diodes, single-mode fiber-coupled laser diodes, multi-mode fiber-coupled laser diodes, collimated laser diodes/modules, etc.

Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
1470nm XLD-1470-001-C 1W MM FP C-mount × ○
XLD-1470-001-3 1W MM FP TO3 × ○
XLD-1470-003-E 3W MM FP E-mount × ○
XLD-1470-003-H 3W MM FP H-mount × ○

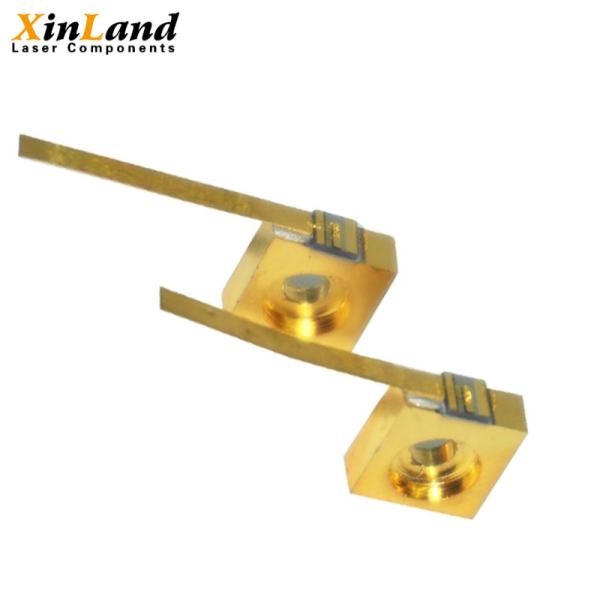

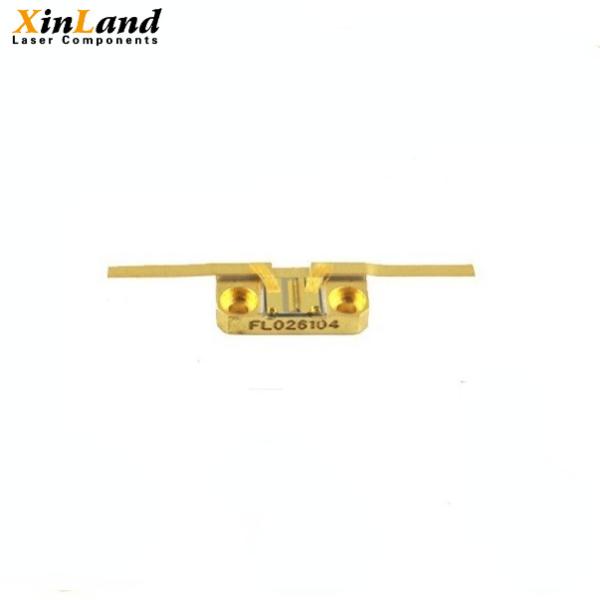

1W Package Type:

1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode

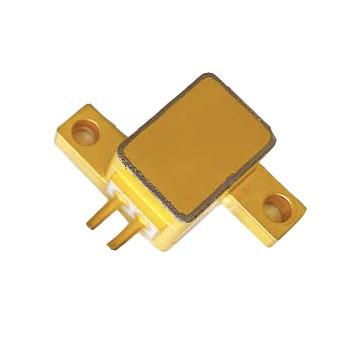

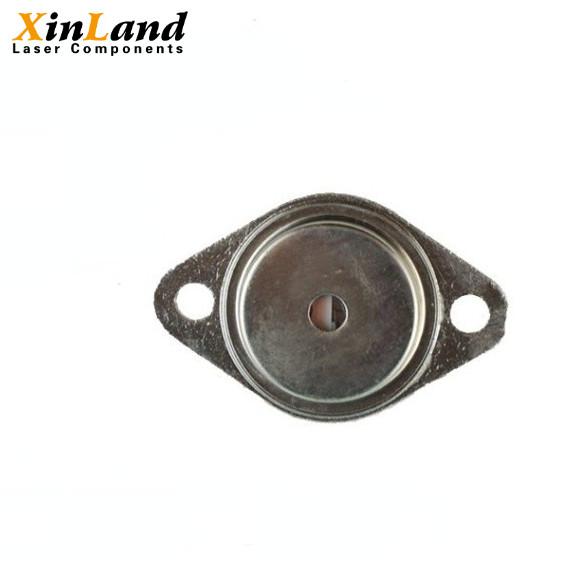

3W Package Type:

1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode

1470nm 1W/3W Laser Diode 1W C-mount/TO3 Package 3W E-Mount/H-Mount Package Multimode IR Laser Diode
