Four In One Handheld Fiber Laser Welding Machine With Small Trolley 1500w 2000w 3000w
Four In One Handheld Fiber Laser Welding Machine With Small Trolley 1500w 2000w 3000w
Four In One Handheld Fiber Laser Welding Machine With Small Trolley 1500w 2000w 3000w
Four In One Handheld Fiber Laser Welding Machine With Small Trolley 1500w 2000w 3000w
Specifications
Brand Name :
Hanniu laser
Model Number :
SCH1500
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
4000-6000USD
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10 SETS
Delivery Time :
10 Working days
Packaging Details :
Strong wooden case packing
Applicable Material :
Metal, SS, CS, AL
Laser type :
Fiber laser
key selling points :
High-accuracy
Controller :
JPT
Bran Name :
Guangzhou Hanniu laser
usage :
Welding/Cutting/cleaning 4 in 1
Substance :
Factory
Welding Head Brand :
Optional brand
Cooling Water Temperature :
<35 degree
Pulse Frequency :
50Hz
Description

Working principle

A fibre laser welding machine uses similar principles to a fiber laser cutter and is an advanced piece of equipment designed for joining metal in place of a traditional MIG or TIG welder.

The core principle behind fibre laser welding is the conversion of light into thermal energy, which is then applied to metal parts to melt and fuse them together.

The laser beam, defined by its exceptional intensity and tightly focused nature, enables meticulous control over every aspect of the welding process. This level of precision significantly reduces thermal distortion— a common issue in material joining—by limiting heat spread to a minimal area around the weld zone. Unlike traditional welding methods, which often produce excess spatter that requires post-weld cleaning, laser welding eliminates such defects entirely. The result is consistently clean, high-integrity welds with smooth seams, eliminating the need for additional finishing work and ensuring superior structural performance in the final product.


Machine parameter


Model TFZ-S-1500W
Laser power

1500w/2000w/3000w
Cooling method Water cooling
Laser wavelength 1070nm
Welding depth SS/CS≤3.5mm, Al≤2mm
Pulse width Continuous light
Welding depth

≤1.2mm
Repeat precision ±0.01mm
Power consumption ≤7KW
Power supply 380v±10%/50Hz/30A
Length of fiber optical 8m
Interface of fiber optical QBH
Module life >1000000hrs
Size 1450*680*1470mm
Net weight 155KG


Feature

Laser welding provides exceptional precision and control over the welding process, allowing for the accurate joining of components with minimal heat input.
The weld joint produced by laser welding are high quality, with clean, consistent joins that exhibit minimal spatter and porosity.
This results in stronger welds with better appearance, often eliminating the need for post-weld finishing.

Suitable Materials and Applications

                                • Automotive Industry
                                • Medical Device Manufacturing
                                • Electronics and Microelectronics
                                • Research and Development
                                • Tool and Die Repair

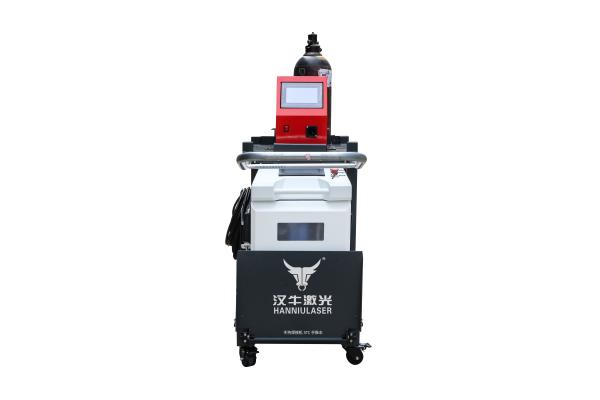

Machine picture


Company&Factory

Four In One Handheld Fiber Laser Welding Machine With Small Trolley 1500w 2000w 3000w

Exhibitions


Shipping&Packing

                    1. Packaged in standard plywood cases that are fumigation-free, requiring no additional steaming and enabling direct export.
                    2. Loading and unloading are handled via car-lift for safer handling of the machine.
                    3. The fumigation-free plywood cases simplify import procedures.
                    4. Delivery timeframe: Shipped within 3–5 days upon receipt of payment.

1. About Company Qualification and Factory

Q: Are you a factory or trading company? Where is your factory located, and can I visit it?
As a first-time importer, how can I trust your company and ensure I receive the goods after ordering?
A: We are a professional laser equipment manufacturer with 10 years of experience and export licenses, not a trading company.
Our factory is in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport, and visits are welcome.
As a legitimate certified company, we support payment methods like L/C and Escrow to ensure your fund safety. You’re also welcome to inspect our factory in person.


2. About Customization and Model Selection

Q: Do you offer OEM services? There are too many models – how do I choose the right one?
A: Yes, we provide OEM services as per your requirements. For model selection, please contact our Trade Manager.
We’ll recommend the most suitable machine based on your specific needs.


3. About Quality Control

Q: What measures does your factory take for quality control?
A: Quality is our top priority. We strictly control quality throughout the process:
1) Using eco-friendly raw materials;
2) Skilled workers overseeing every detail in production and packaging;
3) A dedicated Quality Control Department inspecting each process.


4. About Logistics and Shipping

Q: Where are the machines shipped from? How is the freight arranged? Can we use our preferred logistics company?
A: Machines are shipped from Huangpu Port, Guangzhou, China. We’ll arrange the most cost-effective freight.
If you have a preferred carrier, please inform us, and we’ll coordinate accordingly.


5. About Receipt Guarantee

Q: How can I ensure the machine arrives undamaged?
A: We use standard shipping packaging and confirm the product is undamaged before shipping.
We’ve purchased insurance for the goods – if damage occurs, please contact us within 2 days, and we or the shipping company will take responsibility.
