1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels
1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels
1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels
1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels
Specifications
Brand Name :
Hanniu laser
Model Number :
SCH-1500w
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
3571-5571USD
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10 SETS
Delivery Time :
10 Working days
Packaging Details :
Strong wooden case packing
Machine conditions :
New style
Cooling Mode :
Water Cooling
Accuracy :
0.05mm
Electric Power :
220V
Support Material :
MDF Acrylic Glass Wood Plastic
Machinery Test Report :
Provided
Laser Source Brand :
JPT
Power :
1500-3000w
Applicable Material :
Metal, SS, CS, AL
Operation Method :
Continuous
usage :
Welding/Cutting/cleaning 4 in 1
Fiber Cable Length :
5M 10M 15M
Substance :
Factory
Cooling System :
Water Cooling
Laser Type :
Fiber laser
Welding Head Brand :
Optional brand
Cooling Water Temperature :
<35 degree
Pulse Frequency :
50Hz
Description

Portable Handheld 4 In 1 Fiber Laser Welder 1000W 1500W 2000W 3000W For Iron SS Aluminum Metals


Working principle

Laser welding uses a high-intensity laser as an energy source to selectively heat materials to a temperature between their melting and vaporizing points.

Once the materials melt they alloy and then re-solidify in a controlled atmosphere resulting in a reliable oxide-free weldment.

By adjusting parameters like laser energy and focal point position welds can be tailored from wide and shallow to narrow and deep with the geometry of the welded part typically determining this ratio.


Machine parameter


Model TFZ-S-1500W
Laser power

1500w/2000w/3000w
Cooling method Water cooling
Laser wavelength 1070nm
Welding depth SS/CS≤3.5mm, Al≤2mm
Pulse width Continuous light
Welding depth

≤1.2mm
Repeat precision ±0.01mm
Power consumption ≤7KW
Power supply 380v±10%/50Hz/30A
Length of fiber optical 8m
Interface of fiber optical QBH
Module life >1000000hrs
Size 1450*680*1470mm
Net weight 155KG


Laser Welding Machine: Brief Introduction

This laser welding machine is ideal for thin plate welding, featuring an integrated design of 3D workbench and main unit.
It excels at welding space curves, LED metal components, and various types of characters.
Its versatility makes it widely used in fields such as medical devices, electronic components, circuit boards, ICs, batteries, and instruments.

Suitable Materials and Applications

The machine is compatible with a range of materials and products, including:
              • Daily-use items: kettles, vacuum cups, stainless steel bowls, laptop shells, door handles, stainless steel products, zinc alloy artworks, golf heads.
              • Industrial parts: sensors, tungsten wires, high-power diodes (triodes), aluminum alloys, mobile phone batteries, molds, electrical fittings, filters, nozzles.

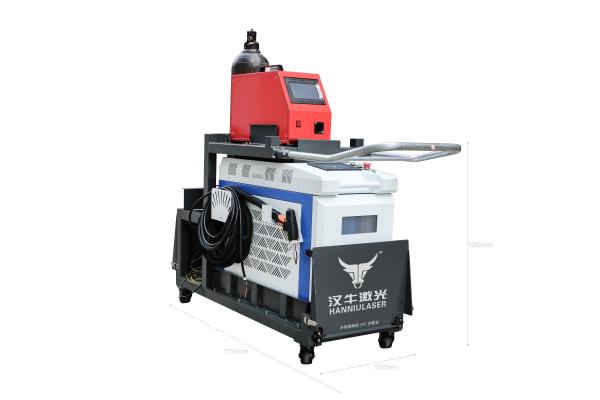

Machine picture
1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels

Our Advantages for Laser Welding Machine

              • Designed with a high-voltage system, the machine maintains exceptional operational stability, reducing fluctuations during welding processes.
              • This reliability is critical for maintaining precision and preventing defects in high-quality manufacturing.
              • Powered by excellent light intensity, it delivers consistent and reliable welding performance, ensuring strong, uniform joints even in demanding scenarios.
              • This stability minimizes rework and enhances overall production efficiency.

Warranty and After-Sales Service for Our Laser Welding Machine

We stand behind the quality of our laser welding machine with a comprehensive one-year warranty.
Throughout this period, any faulty components resulting from non-human factors will be replaced free of charge,
ensuring your equipment operates reliably without unexpected repair costs.

1500W 2000W 3000W Handheld Fiber Laser Welding Machine Integrated Type With Wheels

Exhibitions


Shipping&Packing

                    1. Packaged in standard plywood cases that are fumigation-free, requiring no additional steaming and enabling direct export.
                    2. Loading and unloading are handled via car-lift for safer handling of the machine.
                    3. The fumigation-free plywood cases simplify import procedures.
                    4. Delivery timeframe: Shipped within 3–5 days upon receipt of payment.

1. About Company Qualification and Factory

Q: Are you a factory or trading company? Where is your factory located, and can I visit it?
As a first-time importer, how can I trust your company and ensure I receive the goods after ordering?
A: We are a professional laser equipment manufacturer with 10 years of experience and export licenses, not a trading company.
Our factory is in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport, and visits are welcome.
As a legitimate certified company, we support payment methods like L/C and Escrow to ensure your fund safety. You’re also welcome to inspect our factory in person.


2. About Customization and Model Selection

Q: Do you offer OEM services? There are too many models – how do I choose the right one?
A: Yes, we provide OEM services as per your requirements. For model selection, please contact our Trade Manager.
We’ll recommend the most suitable machine based on your specific needs.


3. About Quality Control

Q: What measures does your factory take for quality control?
A: Quality is our top priority. We strictly control quality throughout the process:
1) Using eco-friendly raw materials;
2) Skilled workers overseeing every detail in production and packaging;
3) A dedicated Quality Control Department inspecting each process.


4. About Logistics and Shipping

Q: Where are the machines shipped from? How is the freight arranged? Can we use our preferred logistics company?
A: Machines are shipped from Huangpu Port, Guangzhou, China. We’ll arrange the most cost-effective freight.
If you have a preferred carrier, please inform us, and we’ll coordinate accordingly.


5. About Receipt Guarantee

Q: How can I ensure the machine arrives undamaged?
A: We use standard shipping packaging and confirm the product is undamaged before shipping.
We’ve purchased insurance for the goods – if damage occurs, please contact us within 2 days, and we or the shipping company will take responsibility.
