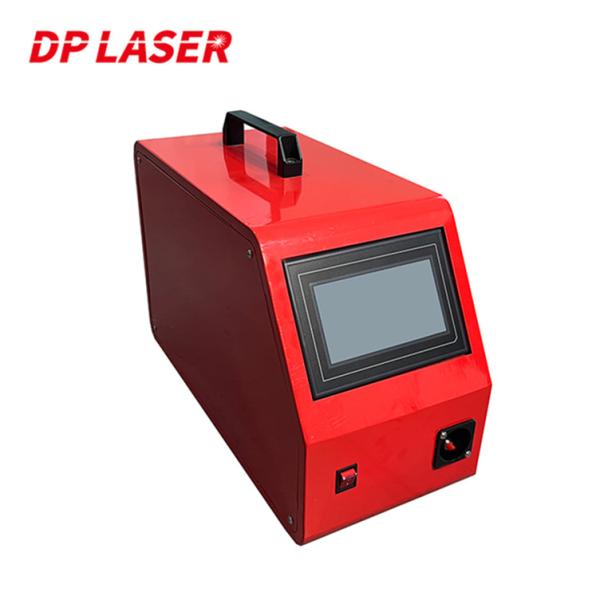

1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
1.5KW Handheld Laser Welding Machine Portable Multi Function
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DAPENG
Packaging Details :
Wooden boxes that meet international export standards
Price :
USD1000-7500
Model Number :
DPH-1500
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
150 sets per month
Delivery Time :
5-10 days
Condition :
New
Max. Output Power :
1500W
Usage :
Metal Welding
Pulse Width :
0.5~10ms
Wavelength :
1070nm
Focal Spot Diameter :
1.2-3.0 mm
Dimensions :
941*744*1030mm
Warranty :
2 years
Laser Source Brand :
RAYCUS Optional
Laser Head Brand :
Qilin Optional
Weight (KG) :
200 KG
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
2 years
Core Components :
Laser Source
Product name :
Handheld Laser Welding Machine
Laser source :
Raycus Laser Source
Laser head :
Qilin Optional
Laser power :
1500W Optional
Application :
Metal Stainless Steel Laser Welder
Laser wavelength :
1070nm
Advantage :
Welding and Cutting Double Function
Keywords :
Fiber Laser Welding Equipment
Power supply :
220V/380V
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

DAPENG Qilin Laser Welding Head Raycus Laser Source 1500W 1.5KW Portable Handheld Fiber Laser Welding Machine Price

Product Description:

The DAPENG Qilin Laser Welding Machine is a portable handheld fiber laser welding machine equipped with a Raycus Laser Source. It has a power output of 1500W (1.5KW), making it suitable for various metal welding applications. This machine offers high precision and efficiency in metal welding processes.

Features:

Easy to operate: The DAPENG Qilin Laser Welding Machine is designed for user-friendly operation, allowing even inexperienced users to perform welding tasks with ease.
Dual function: This machine not only enables welding but also cutting, providing versatility for different metalworking requirements.
High power output: With a 1500W laser source, it delivers strong and precise welding performance.
Portable and handheld: The compact design of this machine allows for convenient transportation and handheld operation, providing flexibility in various working environments.
Durable and reliable: It is built with high-quality components and undergoes rigorous testing to ensure long-term durability and reliable performance.
2-year warranty: The machine comes with a 2-year warranty, providing assurance and support for any potential issues.

Technical Parameters:

Max. Output Power: 1500W
Usage: Metal Welding
Pulse Width: 0.5~10ms
Wavelength: 1070nm
Focal Spot Diameter: 1.2-3.0mm
Laser Source Brand: Raycus (optional)
Laser Head Brand: Qilin (optional)
Weight: 200 KG
Power Supply: 220V

Applications:

The DAPENG Qilin Laser Welding Machine is suitable for various metal welding applications, including stainless steel, aluminum, copper, and more. It finds wide application in industries such as automotive, aerospace, jewelry, and manufacturing.

Support and Services:

We provide comprehensive support and services for our customers, including:

Overseas engineers who provide door-to-door service for installation, training, and maintenance.
After-sales support for any technical assistance or inquiries.
Warranty coverage of 2 years for the core components of the machine.
Availability of spare parts and accessories.

FAQ:

How long is the delivery time for the DAPENG Qilin Laser Welding Machine?
The delivery time is typically 5-10 days after receiving the order.

What are the accepted payment terms?
We accept payment via T/T (bank transfer).

Can the machine be customized according to specific requirements?
Yes, we offer customization options to meet specific needs.

What materials can be welded using this machine?
The machine is suitable for welding various metals, including stainless steel, aluminum, and copper.

Does the machine come with a warranty?
Yes, we provide a 2-year warranty for the core components of the machine.

Qilin Laser Welding Head Raycus Laser Source 1500W 1.5KW Portable Handheld Fiber Laser Welding Machine Price

1.5KW Handheld Laser Welding Machine Portable Multi Function1.5KW Handheld Laser Welding Machine Portable Multi Function

Model DP-HL-1000 DP-HL-1500 DP-HL-2000
Laser Power 1000W 1500W 2000W
Laser Source Raycus Raycus Raycus
Laser Head Qilin Qilin Qilin
Fiber Wire Length 5/10 Meters 5/10 Meters 5/10 Meters
Laser Wavelength 1070nm 1070nm 1070nm
Operate Mode Continuation/Modulate Continuation/Modulate Continuation/Modulate
Water Chiller Hanli Hanli Hanli
Spot Adjusting Range 0.1-3mm 0.1-3mm 0.1-3mm
Repeating Precision ±0.01mm ±0.01mm ±0.01mm
Cabinet Size 744*941*1030mm 744*941*1030mm 750*1260*1110mm
Machine Weight About 200KG About 200KG About 220KG
Voltage 110V/220V/380V 110V/220V/380V 110V/220V/380V

1.5KW Handheld Laser Welding Machine Portable Multi Function1.5KW Handheld Laser Welding Machine Portable Multi Function1.5KW Handheld Laser Welding Machine Portable Multi Function1.5KW Handheld Laser Welding Machine Portable Multi Function

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
