100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DAPENG
Packaging Details :
Wooden boxes that meet international export standards
Price :
USD1000-25000
Model Number :
DPE-F1500
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
40 days
Application :
LASER CUTTING
Applicable Material :
Metal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
Other
Cutting Speed :
100m/min
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
0-25mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
Cypcut
Laser Source Brand :
IPG/Raycus/MAX/nLIGHT(Optional)
Laser Head Brand :
Raytool/Precitec/WSX(Optional)
Servo Motor Brand :
Yaskawa/MOTOR POWER/Schneider(Optional)
Guiderail Brand :
HIWIN
Control System Brand :
Cypcut(Optional)
Weight (KG) :
4000 KG
Key Selling Points :
High Productivity
Optical Lens Brand :
Wavelength
Warranty :
3 years
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Laser Source
Mode of Operation :
continuous wave
Configuration :
bench-top
Products handled :
Tube
Feature :
SERVO-MOTOR
Product name :
Metal Pipe Laser Cutting Machine
Brand :
DP LASER
Laser source :
Raycus MAX IPG nLIGHT Laser Source
Laser head :
Raytool Precitec WSX
Laser power :
1000W-6000W
Function :
Cutting Metal Materials
Cutting materials :
Stainless Steel Carbon Steel Etc
Control system :
Cypcut
Power supply :
380V/50HZ
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

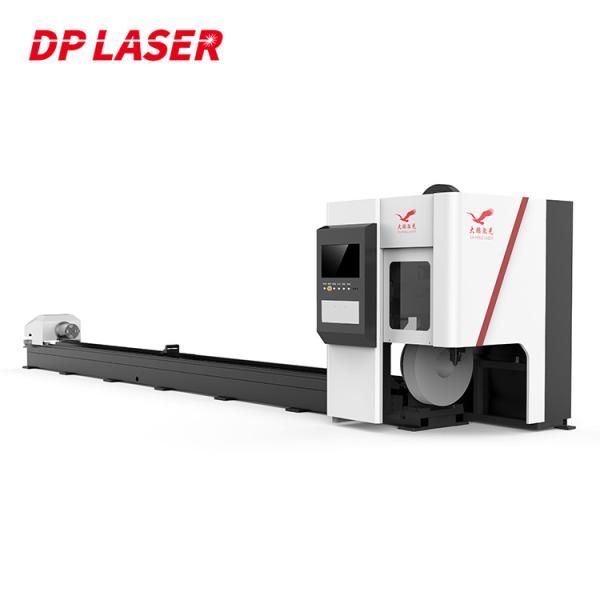

DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine

Product Description:

The DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine is a cutting-edge laser cutting machine designed for precise and efficient metal cutting applications. It utilizes advanced fiber laser technology to deliver high-quality cutting results.

Features:

The machine is equipped with a powerful fiber laser source, which ensures excellent cutting performance.
It supports a wide range of graphic formats, including AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP.
The cutting speed can reach up to 100m/min, enabling fast and efficient production.
The CNC control system, Cypcut, provides accurate and reliable control over the cutting process.
The machine features a water cooling system for effective heat dissipation and extended operational stability.
It comes with a sturdy and durable construction, ensuring long-term reliability and precision.

Technical Parameters:

Laser Type: Fiber Laser
Cutting Area: Other
Cutting Thickness: 0-25mm
CNC Control: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Laser Source Brand: IPG/Raycus/MAX/nLIGHT (Optional)
Laser Head Brand: Raytool/Precitec/WSX (Optional)
Servo Motor Brand: Yaskawa/MOTOR POWER/Schneider (Optional)
Guiderail Brand: HIWIN
Control System Brand: Cypcut (Optional)
Weight: 4000 KG

Support and Services:

Our company provides comprehensive support and services for the DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine. We offer:

Overseas engineers to provide door-to-door service
Machinery test report
Video outgoing inspection
3-year warranty for core components
After-sales service and support

FAQ:

What is the maximum cutting thickness of the machine?
The machine can cut materials with a thickness of up to 25mm.

Which graphic formats are supported by the machine?
The machine supports AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP formats.

What is the warranty period for the machine?
The machine comes with a 3-year warranty for its core components.

Can the machine cut different types of metals?
Yes, the machine is capable of cutting various metals, including stainless steel and carbon steel.

What is the cooling system used in the machine?
The machine incorporates a water cooling system for efficient heat dissipation.

6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine

100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube

Model P6012 P6016 P6022 P6032 P6035 P6040 P6052
Outer Diameter Φ430 Φ590 Φ600 Φ760 Φ844 Φ950 Φ1140
Through Hole Diameter Φ130 Φ170 Φ225 Φ325 Φ365 Φ400 Φ520
Processing Range 10-120 10-160 15-218 15-320 20-350 20-400 20-508
Repositioning Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10

Rotation Accuracy

 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Minimum Clamping Wall Thickness ≥1 ≥1 ≥1 ≥1 ≥2 ≥3 ≥5
Rated Speed 150rmp 100rmp 150rmp 100rmp 50rmp 50rmp 50rmp

100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube100m/Min Fiber Laser Cutting Machine Automatic For Metal Tube

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
