ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DAPENG
Packaging Details :
Plywood box
Supply Ability :
150 sets per month
Price :
USD1000-50000
Model Number :
DPE-F6000
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
40 days
Application :
LASER CUTTING
Applicable Material :
Metal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
1500mm*3000mm
Cutting Speed :
140m/min
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
0-80mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
Cypcut
Laser Source Brand :
RAYCUS / IPG / nLIGHT / MAX (Optional)
Laser Head Brand :
WSX
Servo Motor Brand :
YASKAWA / SCHNEIDER / MOTOR POWER(Optional)
Guiderail Brand :
HIWIN
Weight (KG) :
9000 KG
Key Selling Points :
Automatic
Optical Lens Brand :
Wavelength
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Mode of Operation :
continuous wave
Configuration :
3-axis
Products handled :
Sheet Metal
Feature :
Automated Loading
Product name :
Laser Cutting Machine
Laser source type :
Fiber source
Laser wavelength :
1070nm
Laser output power :
3000W-10000W
Cutting range :
3000*1500mm
Minimum line width :
<0.1mm
Cooling method :
Water cooling
X/Y Positioning Accuracy :
0.03mm
Transfer method :
Precision rack dual drive
Keywords :
Metal Laser Cutter
Port :
China or Shenzhen Ports
Description
Product Description

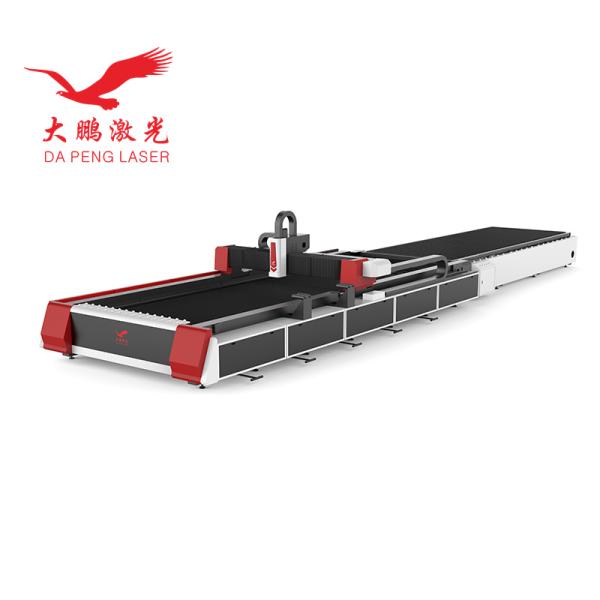

Depeng Exchange Platform Table Fiber Laser Cutters Dual Full Sheet Stainless Steel Auto Feed Laser Cutting Machine
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Specification
Model
DPE-F6020G
Laser source type
Fiber source
Laser Out Power
1070nm
Laser wavelength
500W-3000W
Cutting range
3000×1500mm
Minimum line width
<0.1mm
Transfer method
Precision rack dual drive
Cutting speed and thickness
Depending on specific material
Repeatability
±0.02mm
Machine operating temperature
0~40℃
Electricity demand
380V/50Hz
Cooling method
Water cooling
Continuous operating time
24 hours
Weight
9000KG

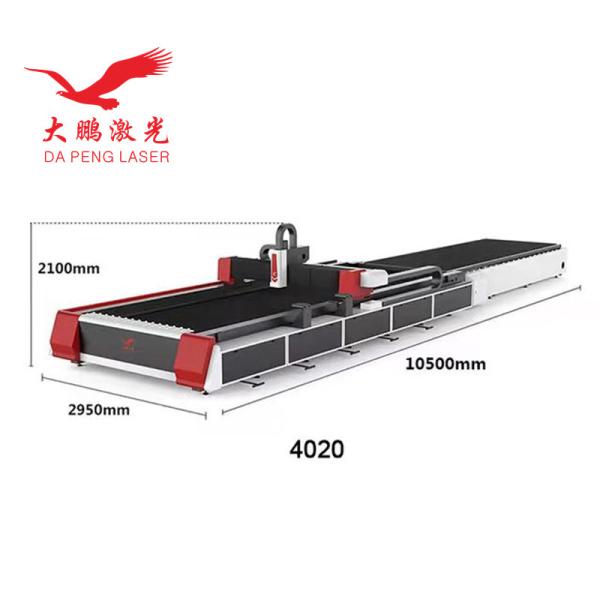

Dimensions
10500×2950×2000mm
Maximum operating speed
120m/min
Maximum acceleration
0.3G
X/Ypositioning accuracy
0.03mm
Minimum slit width
0.15mm

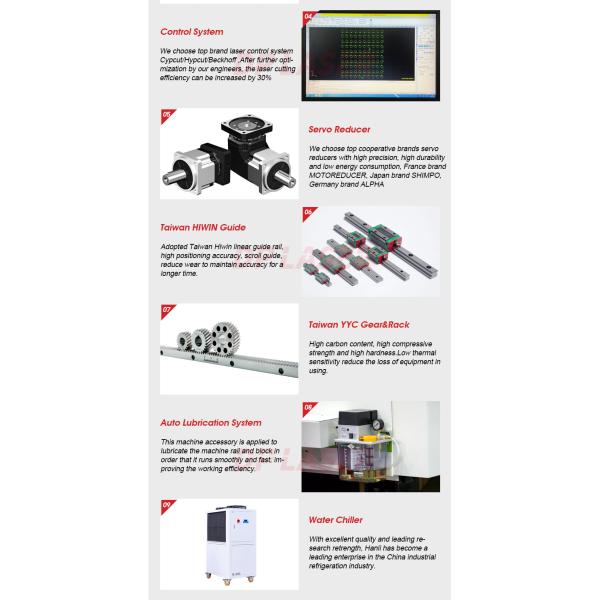

Features:
Advertising fiber laser cutting machine · High performance, imported original packaging fiber laser, stable performance, long service life; · High speed, high efficiency · Maintenance free for laser source · The cutting edge has good quality, small deformation, smooth appearance and beautiful appearance; · Imported guide transmission mechanism and servo motor, high cutting accuracy; · Can design any kind of graph or text to cut at will, the operation is simple, flexible, convenient. Can cut a variety of metal sheet, pipe, mainly applicable to stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals and other materials for rapid cutting.
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Our Workshop
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Laser Welding Machine Team
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Laser Cutting Machine Team
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Oversea Marketing Team
Our Exhibition
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Our Certificates
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
CE
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
Packing & Delivery
We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.
ISO Full Sheet Laser Cutting Machine Auto Feed With Exchange Platform
FAQ:
Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
