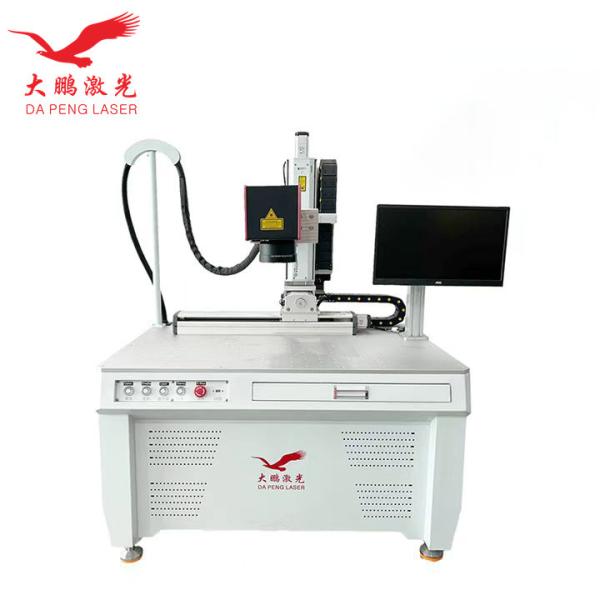

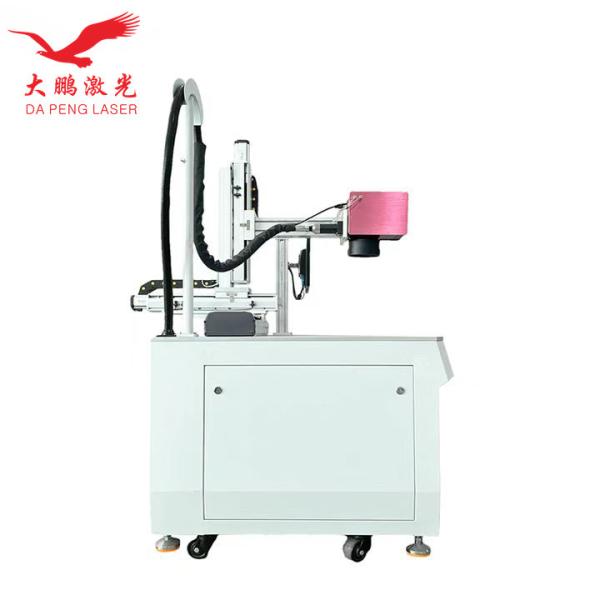

Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Specifications
Place of Origin :
CHINA
Brand Name :
DAPENG
Packaging Details :
Plywood box
Price :
USD1000-15000
Model Number :
DPH-150
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-10 days
Condition :
New
Max. Output Power :
100W-450W
Usage :
metal welding
Single Pulse Energy :
80-120J
Pulse Width :
0.1-50ms
Wavelength :
1064nm
Focal Spot Diameter :
0.2-2mm
Dimensions :
1000x550x1150mm
Warranty :
1 Year
Laser Source Brand :
MAX
Laser Head Brand :
Raytools
Servo Motor Brand :
Yaskawa
Guiderail Brand :
HIWIN
Control System Brand :
Depeng
Weight (KG) :
150 KG
Key Selling Points :
Easy to Operate
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1.5 years
Core Components :
Other
Product name :
automatic laser welding machine
Function :
Welding Steel Tube
Temperature control :
K-type Thermocouple Closed Loop
Positioning :
External Universal Fixture
Welding materials :
Stainless Steel Stud
Power Consumption :
500-6000W
Cooling method :
Water Chiller Hanli
Advantage :
Welding and Cutting Double Function
Application :
Metal Stainless Steel Laser Welder
Keywords :
Fiber Laser Welding Equipment

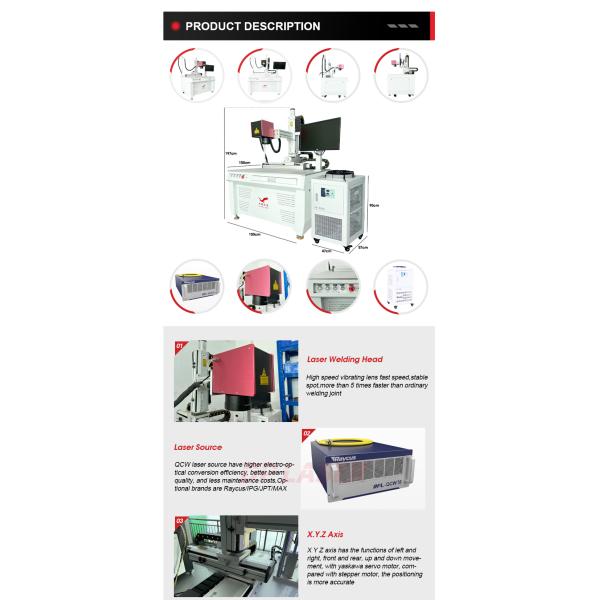

Description
150w 300w 450w QCW Galvo Scanner Fiber Source Laser Welding Machine for Metal Copper Grease Nipple Aluminum Backplane Fiber Laser
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum

Specification

Model
DPH-150
DPH-300
DPH-450
Laser source type
Fiber source
Fiber source
Fiber source
Laser Out Power
150W
300W
450W
Laser wavelength
1064nm
1064nm
1064nm
Laser Source
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Focal spot diameter
0.1-3mm
0.1-3mm
0.1-3mm
Working Table Scale
750*1000mm
750*1000mm
750*1000mm
Observation system
CCD camera
CCD camera
CCD camera
Laser frequency
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
Electricity demand
AC220V±10% 50V 60Hz
AC220V±10% 50V 60Hz
AC220V±10% 50V 60Hz
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
Weight
300kg
300kg
300kg
Dimensions
1230*1010*1750mm
1230*1010*1750mm
1230*1010*1750mm
Single Pulse Energy
15J
30J
45J

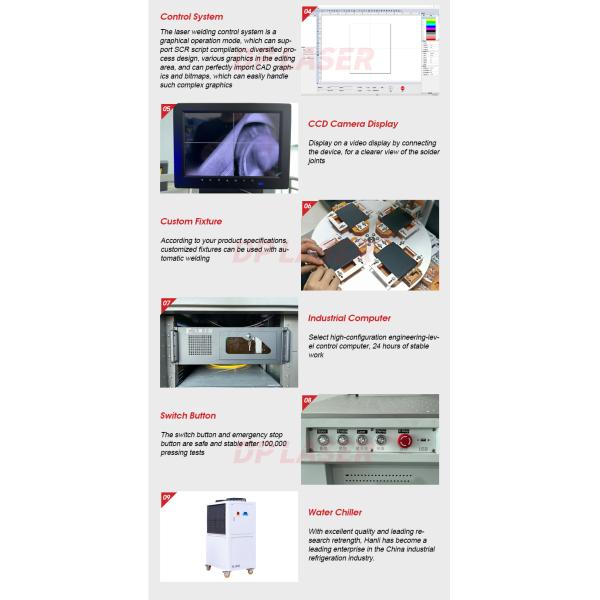

Features:
Dapeng laser handheld welding machine with simple design and nice looking , size only 120*100*174cm. Adopts world-class laser source, better beam quality and excellent welding performance. It's very easy to operate, equipped with one-key start function. All parameters are controlled by touch screen, the welding spot size is adjustable. The welding head has dual motor optional, welding path workable for straight line"-", "S" and "O" type. A full set of original welding nozzles and protective lenses are included with the package. Machine sold with automatic wire feeding system, which can weld wider gap and high welding strength requirments.
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Specification
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Our Workshop
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Laser Welding Machine Team
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
Laser Cutting Machine Team
Packing & Delivery
We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.
Metal Copper Fiber Laser Welding Machine 150W 300W 450W For Aluminum
FAQ:
Q1: I know nothing about this machine, what kind of machine should I choose?
Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon.
1. What do you want to cut? Sheet, pipe or both?
2. Material of the metal
3. Max thickness
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly.
Q3: If the machine have problems or borken in the future, what can you do for me?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, UPS freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.
