Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DAPENG
Price :
USD1000-USD12500
Model Number :
DPH-1500
Certification :
CE ISO
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
60 Sets per month
Delivery Time :
3-10 Days
Packaging Details :
Plywood box
Condition :
New
Max. Output Power :
1000-6000w
Usage :
metal welding
Pulse Width :
0.5-20ms
Wavelength :
1070nm
Focal Spot Diameter :
0.6 --- 3mm
Dimensions :
941*744*1030mm
Warranty :
2 years
Laser Source Brand :
OEM
Laser Head Brand :
OEM
Servo Motor Brand :
OEM
Guiderail Brand :
OEM
Control System Brand :
OEM
Weight (KG) :
260 KG
Key Selling Points :
Multifunctional
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
2 years
Core Components :
Other, laser source, Welding head
Description
Steel Tool Brick Trowel Custom Fixture Automatic CNC Fiber Laser Welding Machine

Product advantages:

The laser welding machine adopts fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.

Features:

1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

2. High cooling rate, which can weld fine weld structure and good joint performance.

3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

5. No consumables, small size, flexible processing, low operating and maintenance costs.

6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Application areas:

It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

Technology parameters

Laser power 1500W,2000W
Center wavelength 1070nm
Output power stability ＜3%
Laser frequency 0.5Hz-100KHz
Adjustable power range 10-100%
Beam quality 1.1
Optimal operating environment Temperature 0-40 ° C, humidity 20% -80%
Electricity demand AC220V
Output fiber length 10m
Welding speed 0-120mm/s
Machine travel XYZ, 50x50x50cm
Cooling method Water Cooling
Dimensions 100cm*100cm*172cm
Weight 300kg

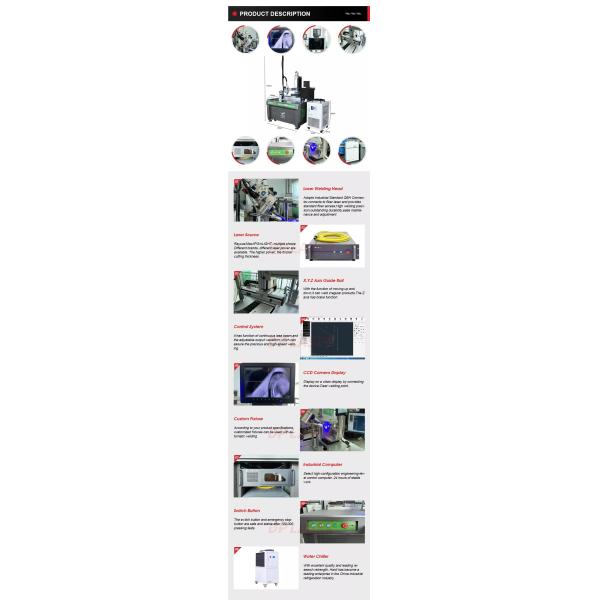

Machine configuration:

Name Specs Qty Place of origin
Cabinet Dapeng fiber welding cabinet 1 Shenzhen
Laser source MAX/Raycus 1 China
Welding head Wobble welding head 1 China
Chiller 2.0P 1 Shenzhen
Welding CNC system C6 1 Wuhan
CCD camera 20 times magnification 1 Shenzhen
Servo motor 400W 2 China
Servo motor 400W with brake 1 China
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Laser Power
1000W-6000W
Laser Source
Raycus/Max/IPG/nLIGHT
Laser Head
Raytool/WSX/OSPRI
Fiber Wire Length
10 Meters
Laser Wavelength
1070nm
Axis
4/5 Axis
Fixture
Support Customization
Operate Mode
Continuation/Modulate
Water Chiller
Hanli
Spot Adjusting Range
0.1-3mm
Repeating Precision
±0.01mm
Cabinet Size
1230*1010*1750mm
Machine Weight
About 350KG
Voltage
220V/3-Phase/50Hz/40A/60A

Feedback from customer

Automated Fiber Laser Welding Machine Multifunctional For AluminumAutomated Fiber Laser Welding Machine Multifunctional For Aluminum

Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum
Automated Fiber Laser Welding Machine Multifunctional For Aluminum

We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!


Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
