Specifications
Brightness :
7000lm
Resolution :
"XGA (1024×768)"
Display Technology :
3LCD
Projection Distance :
0.7m~11.04m
Contrast Ratio :
3500000:1
Throw Ratio :
1.15:1 ~ 1.84:1
Warranty(Year): :
3-Year
Brand Name :
FLYIN/OEM/COSTA
Model Number :
RL-600X
Certification :
CE,FCC ,ROHS
Place of Origin :
China
Payment Terms :
T/T, Western Union, MoneyGram,Alibaba Trade Assurance
Supply Ability :
5000 Pieces Per Month
Delivery Time :
5-10 work days
Packaging Details :
Single package size: 73X51X33 cm Single gross weight: 15.500 kg
Description

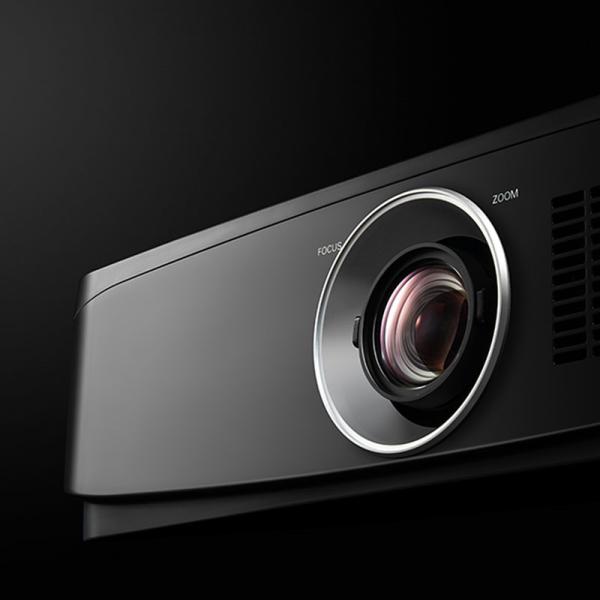

RL 600X 7000 Lumens Large Venue Projector For Outdoor Building
Product Overview

Long Life 7000 Lumens 1080P Short Throw 3LCD Laser Projector designed for large venue exhibitions and outdoor building projections.

  • Brightness: 7000lm
  • Resolution: XGA (1024x768)
  • Display Technology: 3LCD
  • World's First 3LCD Fully-enclosed Structure Design
  • Professional Dust Prevention
  • Internal Circulating Cooling System
  • Lens Shift Function
  • 360° free and flexible installation function
  • Corner Keystone Correction
  • Auto Image Rotation
Advanced Dust Prevention Technology

World's First 3LCD Fully-enclosed Structure Design - RL-6500X laser projector features IP6X level enclosed light machine structure that blocks dust from entering without using filters, significantly prolonging internal optical elements service life.

Professional Dust Prevention: RL-6500X projectors completely isolate dust and solve the serious problem of light attenuation.

  • Test results suggest RL-600U projectors can isolate up to 0.01 µm of dust
  • Filter projectors can only isolate dust up to 10 µm
Superior Brightness Performance

RL-6500X provides stable picture brightness performance based on extreme testing. After 10,000 hours of usage, the brightness of other brands' images may be reduced by 50%, while RL-6500X laser projectors ensure brightness reduction of less than 20%.

Internal Circulating Cooling System

ICCS technology uses the enclosed cooling principle with external cooling system and internal loop cooling system, maintaining the internal optical system in a good constant temperature environment.

Color Filtration Technology

Ultra-powerful color filtration function filters undesired colors during the mixing process of blue, green and red colors according to screen display effect and color presentation requirements. This increases color purity, making colors more accurate and picture quality finer.

Technical Specifications
Overall Specifications
Brightness (Typ) 7500
Brightness (Min) 6500
Contrast Ratio (Min) 3500000:1
Noise (dB) Normal: 37dB@1m, ECO: 34dB
LD module nichia, NUBM0AT Type
Lifetime (H) (Marketing) 20,000 hrs
Display Panel 0.63''
Display Technology Liquid Crystal Display
Native Resolution XGA (1024×768)
Projection Lens
Zoom/Focus Manual
Throw Ratio 1.15-1.84
F 1.6~1.9
Zoom Ratio 1.6
Screen size (30" -300") 0.7m~11.04m
General Specifications
Uniformity (Actual Min) 90%
Aspect Ratio 4:3 (Compatible 16:9)
Keystone Correction V: Auto Keystone 40°, H: Manual Keystone: 15°
Auto Setup Input search, auto pc, autokeystone
Connectivity
Input VGA*1/Audio in(mini jack,3.5mm)*1/Video*1/HDMI*1/USB-Type A*2/DVI-I*1/HD BASET*1
Output VGA*1/Audio out(mini jack,3.5mm)*1
Control RS232*1/RJ45*1
Audio Speaker: 1*10W
Power & Environmental
Power Requirements 100V - 240V @ 50-60 HZ, 5A Max
Power Consumption 430W max
Standby Mode Power Consumption <0.5W
Operating Temperature 0℃-40℃ (over 35°Go to ECO2 mode)
Storage Temperature -20℃-60℃
Operating Humidity 20%~85%
Storage Humidity 20%~90%
Additional Features
  • Cooling time: 0s
  • OSD Languages: English, Chinese, Japanese, Korean
  • Network control/info (Supported Protocol), USB Media Viewer
  • Security: Security bar, Password protections, Control Panel Lock, Kensington Lock
  • Lens Shift H: ±10%, Lens Shift V: ±40%
  • Max Dimensions (WxHxD mm): 10.1
  • Net Weight: 10.1 KG
Certifications & Standards

Certification: CCC, CECP, CE, RoHs
