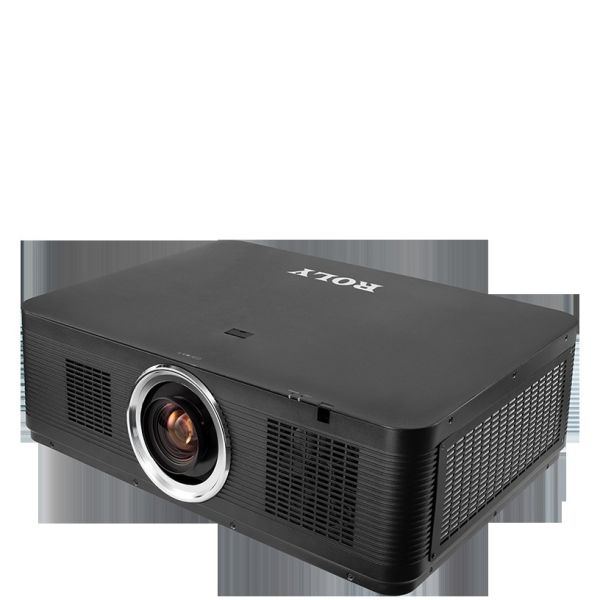

7000 ANSI Lumens Shift Large Venue Projector Short Throw Lens
Product Overview
Real 1920×1200p 3LCD Laser 7,000 ANSI Lumens Short Throw Projector designed for large venue exhibitions, outdoor buildings, and professional environments. Model: RL-T7000W
Key Features
- 7,000 ANSI Lumens High Brightness - Ideal for large halls, lecture halls, conference rooms, and exhibition halls
- 1.15x Standard Electric Zoom Lens with multi-angle displacement for flexible installation
- WUXGA Native Resolution (1920×1200 pixels) delivering full HD video with exceptional detail
- 3,500,000:1 High Contrast Ratio for superior picture layering and detail clarity
- Interchangeable Lens System with motorized zoom and lens shift capabilities
- 3LCD High-End Display Technology for vibrant, accurate color reproduction
Technical Specifications
| Brightness (Typical) |
7,500 Lumens |
| Brightness (Minimum) |
6,500 Lumens |
| Contrast Ratio |
3,500,000:1 |
| Noise Level |
Normal: 37dB @ 1m, ECO: 34dB |
| Laser Module |
Nichia NUBM0AT Type |
| Lifetime |
20,000 hours |
| Display Technology |
0.59" 3LCD Liquid Crystal Display |
| Native Resolution |
WUXGA (1920×1200) |
| Throw Ratio |
0.73–0.86 |
| Zoom Ratio |
1.15x Motorized |
| Lens Shift |
Horizontal: ±10%, Vertical: +35%/-5% |
| Screen Size |
60"–200" |
| Inputs |
VGA×1, HDMI×1, DVI-I×1, HDBaseT×1, Video×1, Audio in×1, USB-Type A×2 |
| Outputs |
VGA×1, Audio out×1 |
| Control |
RS232×1, RJ45×1 |
| Audio |
1×10W Speaker |
| Power Requirements |
100V–240V @ 50–60 Hz, 5A Max |
| Operating Temperature |
0°C–40°C (ECO2 mode above 35°C) |
Additional Features
- Auto keystone correction (Vertical: 40°, Horizontal: 15°)
- Network control and USB media viewer
- Multiple security options: security bar, password protection, control panel lock, Kensington lock
- Advanced functions: freeze, audio/picture muting, gamma correction, corner correction
- DICOM Simulation Mode for medical imaging applications
- Fast cooling system with instant power off capability
Certifications & Compliance
CCC, CECP, CE, RoHS
Package Contents
- Projector Unit
- Power Cord
- Remote Control with Batteries
- Warranty Card
- Multi-language Manual (English, Chinese, Japanese, Korean)
