Specifications
Brand Name :
FLYIN/OEM
Model Number :
EL-VL506X
Certification :
CE,FCC ,ROHS
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, MoneyGram,Alibaba Trade Assurance
Supply Ability :
5000 Pieces Per Month
Delivery Time :
5-10 work days
Display Panel :
3x0.63” with MLA.
Native Resolution :
XGA(1024 x768).
ECO2 mode :
30000hrs.
Throw Ratio :
1.3（wide)-2.2（tele）.
Screen size :
30-300 inch.
Lens Shift :
"V:＋50%～0%、 H:±28%".
Contrast Ratio :
5000000:1.
Aspect Ratio :
Native:16:10 Compatible: 4:3/16:9.
Speaker :
16W*1.
Description
3LCD 1080P 4K Video Projector Multimedia Projection For Schools
Product Overview
Educational Laser Long Throw 1080P 4K 3LCD Video Projector with 5500 lumen brightness, ideal for outdoor classroom applications. Model: EL-VL506X
  • 5500 lumens - Suitable for both day and night use
  • Six color modes - Delivering the most realistic colors
  • Contrast Ratio: 5,000,000:1 - Exceptional image clarity
  • Micro Lens Array (MLA) Technology - Enhanced visual performance
  • Auto Keystone - Projects images in complex environments
  • Multiple interfaces - Versatile connectivity options
Key Features
Vacuum Filter System - Prevents dust from entering the projector, protecting internal components and extending product lifespan by maintaining optimal cooling efficiency.
Technical Specifications
Resolution XGA Support 4K decoding
Brightness 5500 ANSI lumens
Display Specifications
Panel 3x0.63" with MLA
Display Technology Liquid Crystal Display
Native Resolution XGA (1024 x 768)
Light Source Lifetime Normal mode: 20,000hrs | ECO mode: 20,000hrs | ECO2 mode: 30,000hrs
Contrast Ratio (FOFO) 5,000,000:1
Aspect Ratio Native: 4:3 | Compatible: 16:9

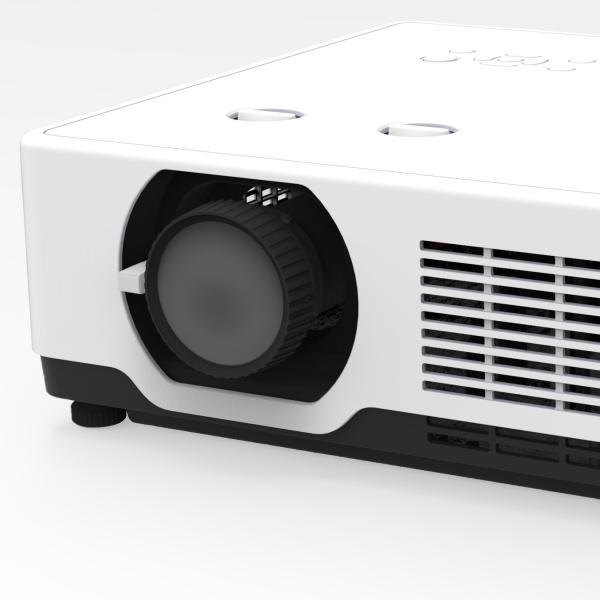

Projection Lens
Lens Vendor Fujifilm Lens
F 1.7~2.21
f 17.42~28.99mm
Zoom/Focus Manual
Throw Ratio 1.3 (wide) - 2.2 (tele)
Zoom Ratio 1.66
Screen Size 30-300 inch
Lens Shift V: +50%～0%, H: ±28%
Performance Specifications
Noise Level 37dB (Normal) | 29dB (ECO1) | 27dB (ECO2)
Uniformity (Actual Min - JISX6911) 90%

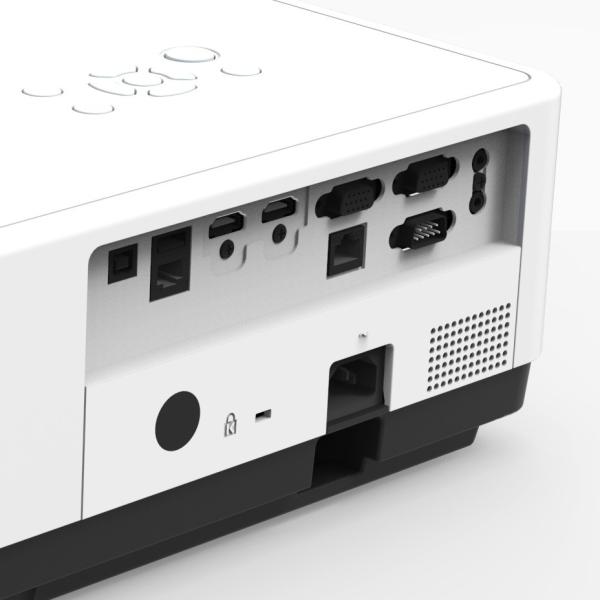

Input/Output Ports
Input VGA *1, HDMI 1.4B(IN) *2, USB-A *1, USB-B *1 (Display), RJ45 *1 (Display), HD BaseT *1 (Optional), Audio in (mini jack, 3.5mm) *1
Output VGA *1, Audio out (mini-jack, 3.5mm) *1
Control RS232 *1, RJ45 *1 (Control), USB-B *1 (For upgrade)
General Specifications
Audio Speaker: 16W*1
Dust Filter With Filter | Filter Lifetime: 8,000h
Power Requirements 100~240V 50/60Hz
Power Consumption Normal: 350W (Max) | ECO1: 270W (Max) | ECO2: 230W (Max)
ECO Standby Mode Power Consumption <0.5W
Operating Temperature 5 to 40°C
Operating Humidity 20-80%
Store Temperature -10 to 50°C
High Altitude 0~3000m
Additional Functions
Keystone Correction V: ±30°, H: ±30°
Correction Features Pincushion/Barrel Correction, 6 Corner Geometry correction, 4 Corner Correction, Grid image tune
OSD Languages 26 languages
LAN Control RoomView (Crestron), AMX Discovery, PJ Link
Scanning Frequency H-Synch Range: 15~100KHz, V-Synch Range: 24~85Hz
Display Resolution Support Computer: VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Video: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Software Settings Auto Setup, Blank, Suspend, Picture modes, Cooling time, Closed caption, Auto Ceiling, D-Zoom
360° Projection Yes
Wireless Display (Optional) SmartPhone: Android (Install APK), iPhone (Airplay)
PC: Support WiFi Display for Windows & MAC system through dongle
Dimensions & Weight
Maximum Dimensions (WxHxD mm) 405 × 358 × 137
Net Weight (KG) ~7.7 KG
Packaging Box Dimensions (WxHxD mm) 510 × 498 × 260
Gross Weight (KG) ~10.2 KG
Accessories & Compliance
Manual Languages Chinese, English
Standard Accessories Power cord (EU/Ja), Remote control & RC Battery
Regulatory Compliance CCC, CB, cTUVus, FCC, FDA, CE-EMC, CE-LVD, CE-ERP, Laser Class 1, EMC Class A@3dBm
