China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices
China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices
China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices
China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices
Specifications
Brand Name :
BOSMFC
Model Number :
WS2811 pixel light LED string
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
10,000pcs
Payment Terms :
T/T,Western Union,paypal
Supply Ability :
100KK/month
Delivery Time :
5-15 days
Packaging Details :
50pcs/string, Anti-static bag+carton
Chip brand :
San'an chip / Epistar chip
Color :
infrared
Wavelength :
660 / 940 nm
LED Size :
2.8x3.5x0.7mm
Lifetime :
50000h
Warranty :
3 Years
Package :
4000pcs/reel
Application :
beauty equipment
Operating Temperature :
-30℃~60℃
Forward Voltage :
5v
Description

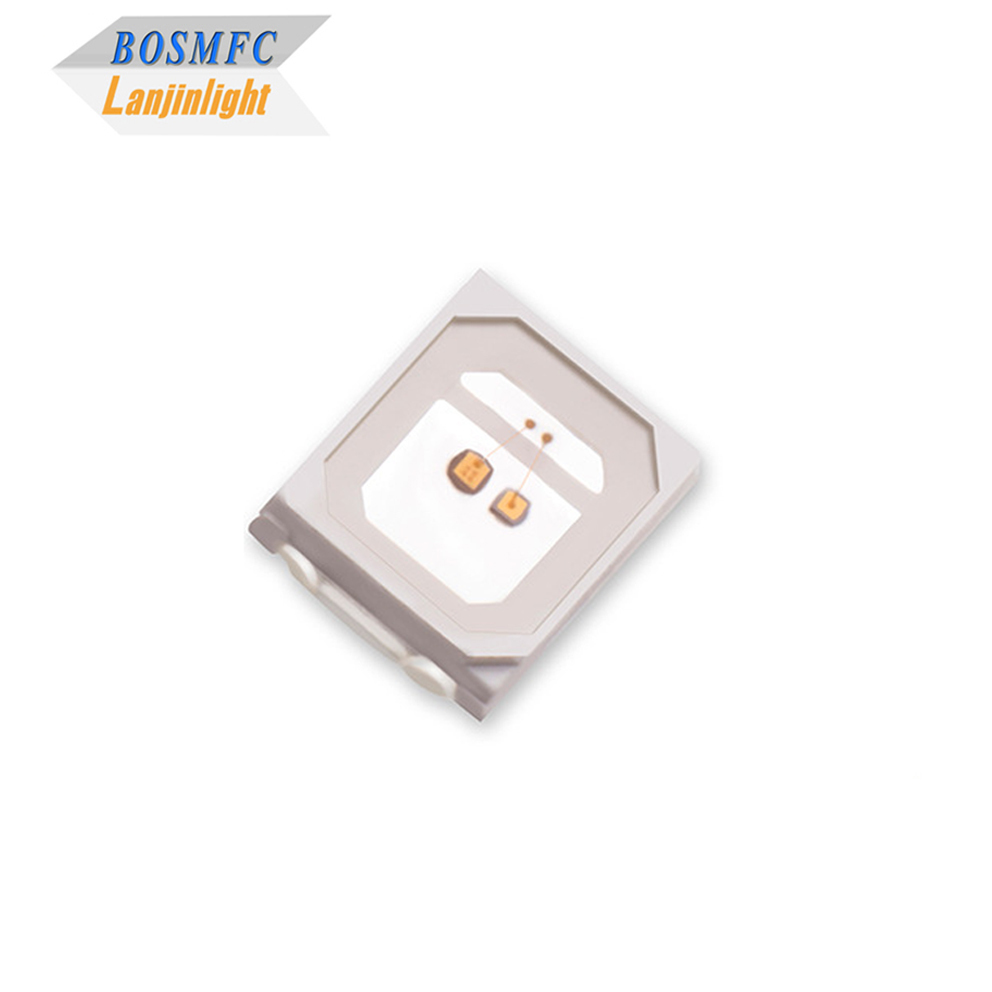

China VCSEL SMD LED 2835 Laser 660nm / 940nm for Hair Removal Devices

Features:

  • 99.99% gold wire bonding
  • Long life span 50,000 hours
  • Excellent heat dissipation
  • Instant light (less than 100ns)
  • RoHS and REACH certified

Technical Parameters:

Electrical optical characteristics :(Ta=25°C)

Parameter Symbol Color Min Typ Max Unit Test Condition
Luminous intensity Iv

660nm

940nm

 — 15
20		 — mW IF=20mA
Dominant wavelength

660nm

940nm

 650
935		 — 665
945		 nm IF=20mA
Forward voltage VF 660nm
940nm		 2.0
1.8		 — 2.4
2.2		 V IF=20mA
Viewing angle — 28 — deg IF=20mA
Reverse current IR — — 5 uA

IF=20mA

China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices

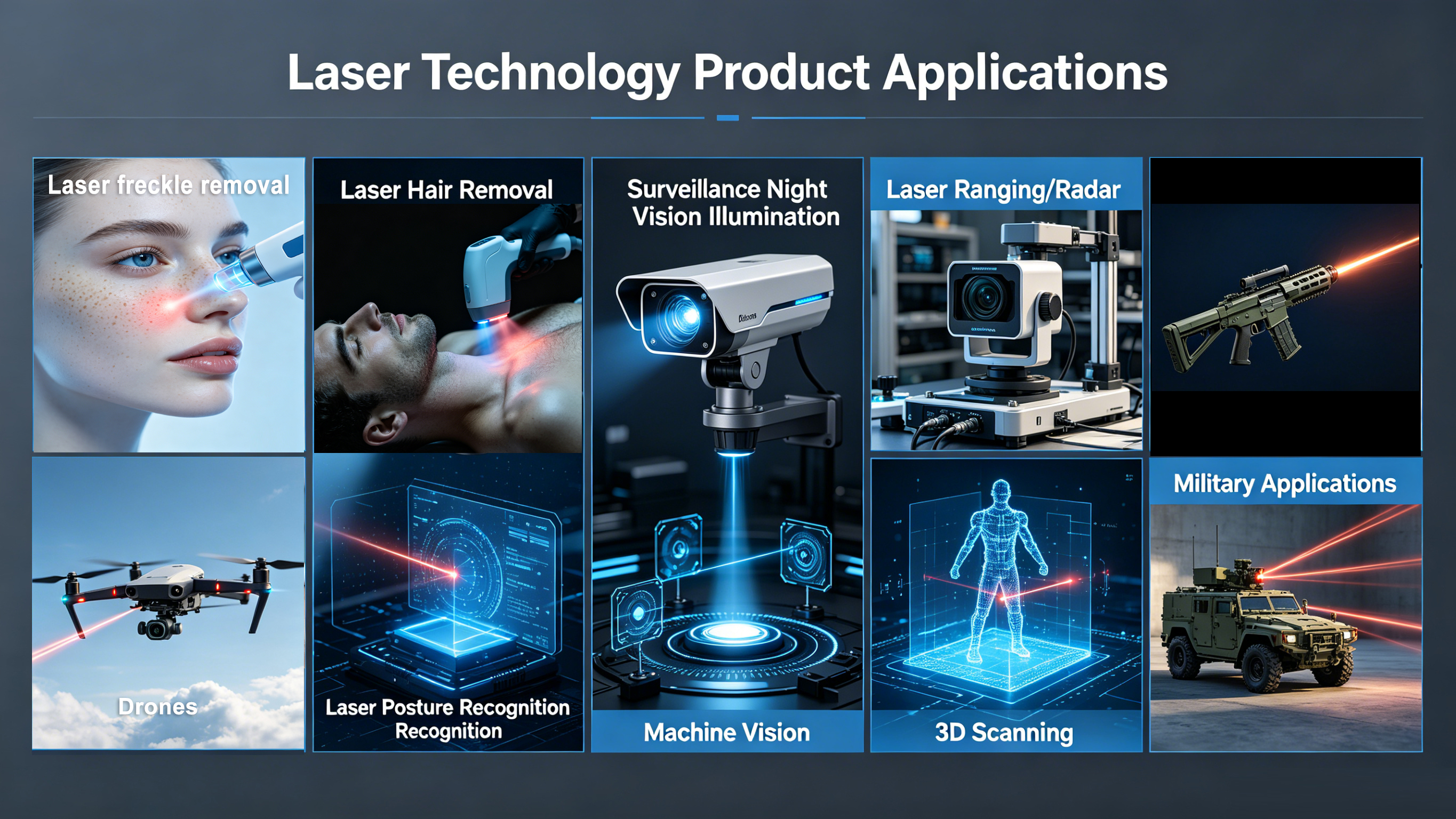

Applications:

1.Laser freckle removal,

2.Laser Hair Removal,

3.Surveillance Night Vision Illumination,

4.Laser Ranging/Radar,

5.Drones,

6.Laser Posture Recognition,

7.Machine Vision etc.

China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service and LED string. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices

China VCSEL SMD LED 2835 Laser 660nm / 940nm For Hair Removal Devices

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized as customer's requirements.

Q2: How can I get a quotation from you?
A2: Please provide us with detailed requirements or pplication, Our sales team will respond to you in one hour.

Q3: What payment terms do you accept?

A: We accept T/T, Paypal, Western Union .

Q4. Can I have a sample order for led?
A4: Yes, we welcome sample order to test . Mixed samples are acceptable.

Q5. What about the lead time?
A5:Sample needs 3-5 days, mass production time needs 2-3 weeks .

Q6: How do I process an order?
A6: The order process involves the following steps:

1.Provide us with your requirements or application.

2.We will provide a quotation based on your requirements.

3.Confirm the samples and place order. We will arrange production .
