5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Specifications
Brand Name :
BOSMFC
Model Number :
5050 SMD LED
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T,Western Union,paypal
Supply Ability :
500KK/month
Delivery Time :
5-15 days
Packaging Details :
1000pcs/reel, Reel+Anti-static bag+carton
Power :
1 W
Emitting color :
infrared led light
Wavelength :
630/460nm
Forward Current :
150mA
Forward Voltage :
1.8-2.4v/2.8-3.4v
Viewing Angle :
120°
Size :
5.4*5.0*0.8mm
Lifespan :
50,000 Hours
Warranty :
3 Years
Chip brand :
San'an chip / Epistar chip
Package :
1000pcs/reel
Description

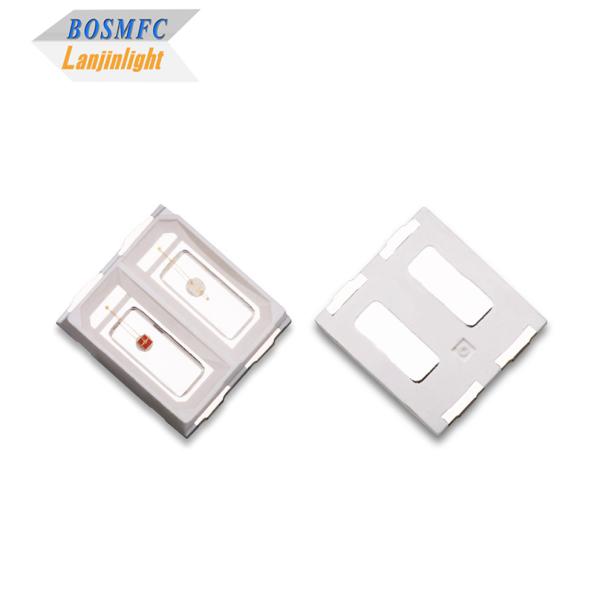

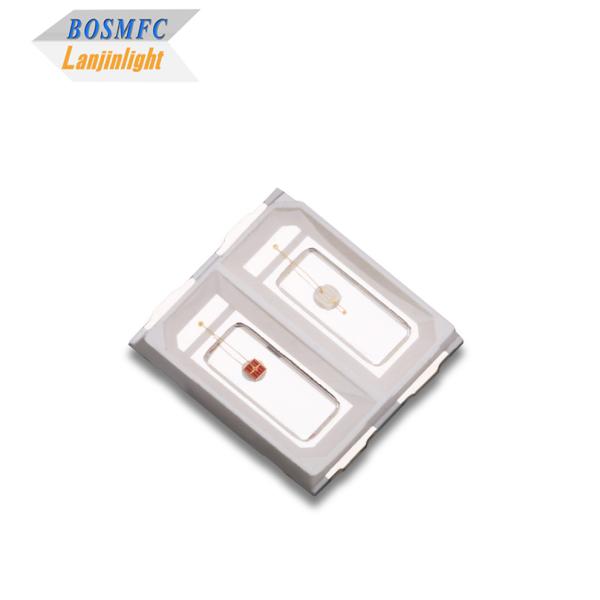

5050 SMD LED Dual Color (Red & Blue)
High-power LED component specifically engineered for professional beauty light panel therapy devices, delivering targeted phototherapy for skincare applications.
Product Overview
This 5050 SMD LED integrates high-performance red and blue chips for professional LED beauty light panel therapy devices. Red light (630-660nm) promotes collagen production and skin rejuvenation, while blue light (460-480nm) targets acne-causing bacteria. The 5050 form factor ensures high luminous intensity for clinical-grade and home-use facial treatment panels.
Key Features
  • 99.99% gold wire bonding for superior connectivity
  • Long lifespan of 50,000 hours
  • Excellent heat dissipation capabilities
  • Low-temperature, lead-free reflow soldering
  • Instant light activation (less than 100ns)
  • RoHS certification compliant
Technical Specifications
Parameter Symbol Color Min Typ Max Unit Test Condition
Luminous intensity Iv

625nm

465nm

 -

20

10

 - LM IF=150mA
Dominant wavelength -

625nm

465nm

620

460

 -

630

470

 nm IF=150mA
Forward voltage VF

625nm

465nm

1.8

3.0

 -

2.4

3.4

 V IF=150mA
Viewing angle - - - 120 - deg IF=150mA
Reverse current IR - - - 5 uA IF=150mA
Operation Temperature -40~+85℃ Size 5.4×5.0×0.8mm
Storage Temperature -40~+100℃ Packing 1000pcs/reel
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Applications
  • Acne Treatment: Blue light targets and eliminates acne-causing bacteria
  • Anti-Aging: Red light stimulates collagen to reduce wrinkles and fine lines
  • Skin Rejuvenation: Improves overall skin tone, texture, and radiance
  • Wound Healing: Accelerates tissue repair and reduces inflammation
  • Muscle Recovery: Soothes muscle soreness and enhances recovery post-exercise
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Materials & Construction
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Company Profile

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Packaging & Shipping
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices 5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices
Frequently Asked Questions
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer with 18 years experience in China, providing one-stop OEM & ODM service to partners worldwide.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample orders to test and evaluate our LED quality.
Q3: What about the lead time?
A3: Typically 10-15 working days for production orders. Sample delivery is approximately 3 days for standard items.
Q4: What chip you usually use for your LED?
A4: We primarily use Sanan and Epistar chips, selecting the most suitable option for different LED applications.
Q5: What payment terms are available?
A5: T/T, PayPal, Western Union and Secure Payment methods are accepted.
Q6: How to proceed an order for LED light?
A6: 1. Share your requirements or application needs.
2. We provide quotation based on your specifications.
3. Confirm samples and place deposit. 4. We arrange production.
