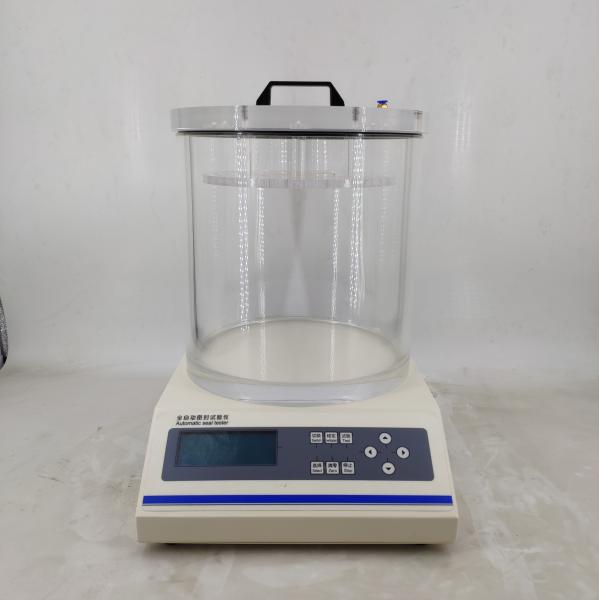

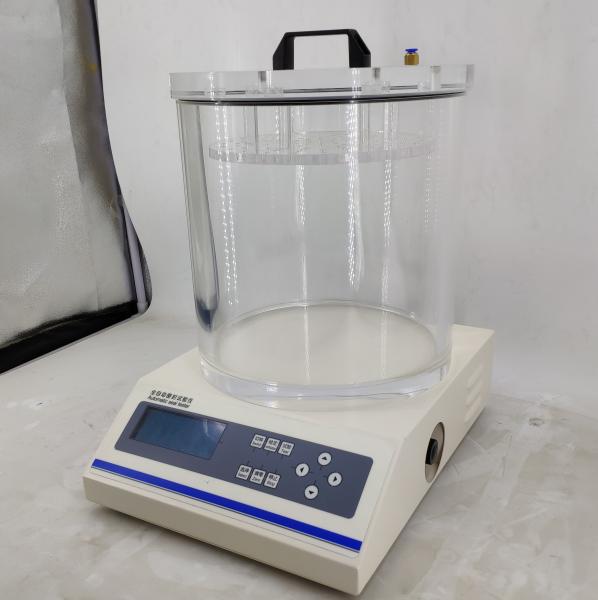

Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Automatic Seal Tester for Bags Bottles Tubes Cans Boxes
Specifications
Brand Name :
HAIDA
Model Number :
5110-HD
Certification :
CE
Place of Origin :
china
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test Object :
Powder, Solid, Liquid
Time Repeatability :
0.01min
Light Source :
Tungsten Halogen Lamp and Deuterium Lamp
Pyrolysis Time Range :
0.01~99.99min
Cooling Rate :
< 3.5min (450˚C to 50˚C)
Deoxygenation Tube :
Dedicated to ECD detector
Description :
Atomic Absorption Spectrophotometer
Ion Source :
EI, EI/CI mixed source, CI (PCI & NCI)
Wavenumber Range :
7800~375 cm-1
Peak Area Reproducibility :
< 0.5% RSD
Rsd :
≤1.5%
Spectral Bandwidth :
≤2nm
Resolution :
1 cm-1
Detection Limit :
1ppm
Photometric Accuracy :
±0.3%T
Description
PRODUCT DESCRIPTION

It is suitable for sealing test of bags, bottles, tubes, cans and boxes in food, pharmaceutical, medical equipment, daily chemicals, automotive, electronic components, stationery and other industries. It can also be used to test the sealing performance of specimens after drop and pressure resistance tests.

DESIGN STANDARD

ASTM D3078 , GB/T 15171,ISO 4074

PRINCIPLE
  • To determine the sealing performance of the specimen by evacuating the vacuum chamber, so that the specimen immersed in water generates the pressure difference between inside and outside, and observes the escape of gas inside the specimen;
  • To determine the sealing performance of the specimen by evacuating the vacuum chamber, making the specimen produce internal and external pressure difference, and observing the expansion of the specimen and the shape recovery of the specimen after releasing the vacuum.
TECHNICAL PARAMETERS
Item Description
Vacuum Density 0~-90kPa
Accuracy ± 0.1kPa
Pressure Speed 2m/s
Available Vacuum Room Size Standard:Φ270mm*210mm(H) (other size can be custom-made)
Air Pressure 0.5 MPa ~ 0.7 MPa (prepare by user)
Gas Source Interface Φ6PU pipe
Control Ways Microcomputer control, automatic test
Display Way LCD display
Power AC 220V 50Hz (AC110V 60HZ)
Standard Configuration master, sealing drum, air tube
Net Weight 16kg
Main Unit Size (L*W*H) 420*320*120mm
HAIDA INTRODUCTION

Founded in 2004, Haida ® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), Foam, Furniture & Optical (FFO), also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
