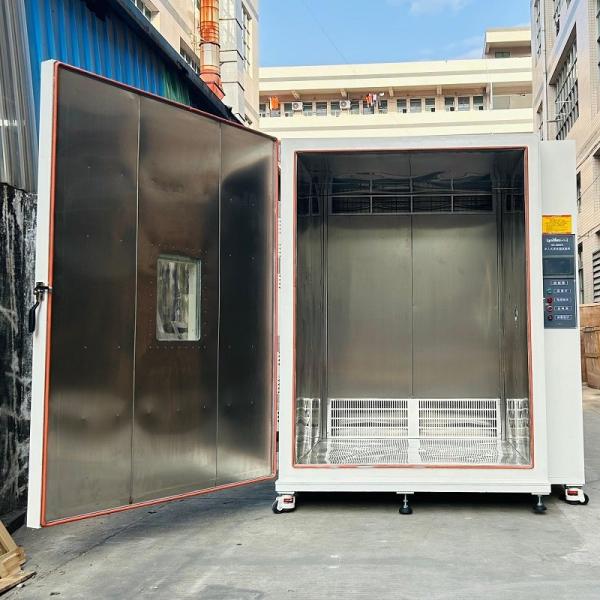

Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Specifications
Brand Name :
lixian
Model Number :
HZ-2004A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
7 days
Packaging Details :
wood
model :
HZ-2004A
Temperature range :
-40°C ~ +100°C
Humidity range :
20%~98%R.H.
 Accuracy/ uniformly :
±0.1°C
 Heating / cooling time :
About 4.0°C/min; about 1.0°C/min (5~10°C/mm is the specific condition)
 Inside material :
Stainless steel SUS 304#
Application :
Package Environmental Test MACHINE
Data Analysis :
Yes
Data Storage :
Yes
Display :
LCD Display
Safety Protection :
Yes
Size :
1400*1400*1900 mm
Description

Frequency Conversion Temperature Humidity Test Chamber IEC68-2-03 Saving Energy 480L Customized Inner Size

Equipment summary:
Programmable package box constant temperature and humidity testing machine is applied to test package box materials such as package box in heat-resistance,cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Specification
Model
HZ-2004A
Inner box size (mm)
1400*1400*1900 mm
Outer case material
SUS#304 stainless steel
Heating time
About 1.5℃/minute, no linear requirement (no-load condition)
Cooling time
About 1.0℃/minute, no linear requirement (no-load condition)
power
380V AC50/60Hz
Humidity range
20%~98%RH
Controller accuracy
±0.1 ℃
Temperature range
-40°C~100°C

1. International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

2. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

Detailed Images

Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree

Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree

Best Products
Salt Spray Chamber ---------------------- Walk in Test Chamber -------------- Climate test Chamber ---------- UV Test Chamber
Walk-In High And Low Temperature Test Chamber Test Equipment For Package Frequency Conversion Save Energy Type Temperature Range -40 To 100degree
Xenon Test Chamber -------------- Thermal shock Test Chamber ------------ Rain Test Chamber ----------------Drying Oven
