408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius
Specifications
Brand Name :
lixian
Model Number :
HZ-2019
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
Temprature range :
-70oC to 150oC
Inside size :
40*50*40； 50*60*50； 50*75*60；60x85x80
Timer  :
0.1 to 999.9 (S,M,H)adjustable
Heating-up time :
-40oC to 100oC about 55min
fluctuate/uniformly :
≤±0.5oC /.+2oC to 3oC
Display :
LCD
Humidity Range :
10~98%RH
Humidity Resolution :
0.1%RH
Humidity Stability :
±2.0%RH
Humidity Uniformity :
±3.0%RH
Power Supply :
AC220V/50Hz
Temperature Accuracy :
±0.5℃
Temperature Resolution :
0.1℃
Temperature Stability :
±0.5℃
Temperature Uniformity :
±2.0℃
Type :
Environmental Testing Machine
Description

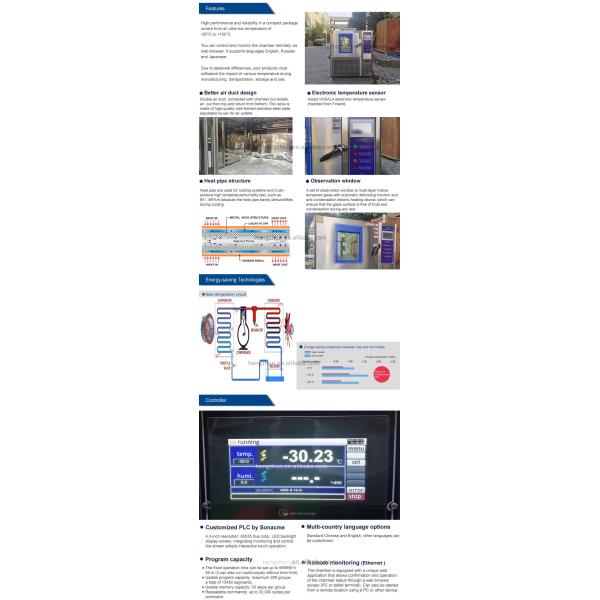

408L High and Low Temperature Test Chamber for Electronic, Plastic Products, Electrical Appliance -70 to 150 Celsius

High and Low Temmperature Test Chamber summary:

Temperature test chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements.

High and Low Temmperature Test Chamber Corresponding standard:

1.GB 10589-89 low temperature testing condition
2. GB 10592-89 high temperature testing condition
3. GB 11158-89 high temperature testing condition
4. GB/T5170.2-1996 basic parameters of environmental testing method for Electrical and electronic products,

High and Low Temmperature Test Chamber Applicable industries :

Applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care.

High and Low Temmperature Test Chamber technical parameter:

Capacity 80L 150L 225L 408L 608L 800L 1000L
Inner size W×H x D cm 40*50*40 50*60*50 50*75*60 60x85x80 80x95x80 100x100x80 100x100x100
External size W×H x D cm 90x136x94 100x146x104 100x161x117 110x171x137 130x181x137 150x186x137 150x186x157
index temperature -70oC to 150oC
fluctuate/uniformly ≤±0.5oC /.+2oC to 3oC
Heating-up time -40oC to 100oC about 55min
Cooling time 25oC to -70oC about 80min
Control system controller LED digital P,I,D, +S,S,R.microcomputer controller
accuracy Setting accuracy temperature ±0.1oC,directed accuracy temperature ±0.1oC,resolution ±0.1oC
sensor Platinum resistance PT100Ω/MV
Heating system Independent system, nickel-chromium alloy electric heating type heater
Cooling system Totally enclosed air-cooled single-stage compression refrigerate mode / original from French "Taikang" / totally enclosed air-cooled re-compression refrigerate mode
Circulatory system Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel

408L High And Low Temperature Test Chamber 50Hz For Electronic -70 To 150 Celsius

High and low temperature test machine-2 HZ-2019.pd...
