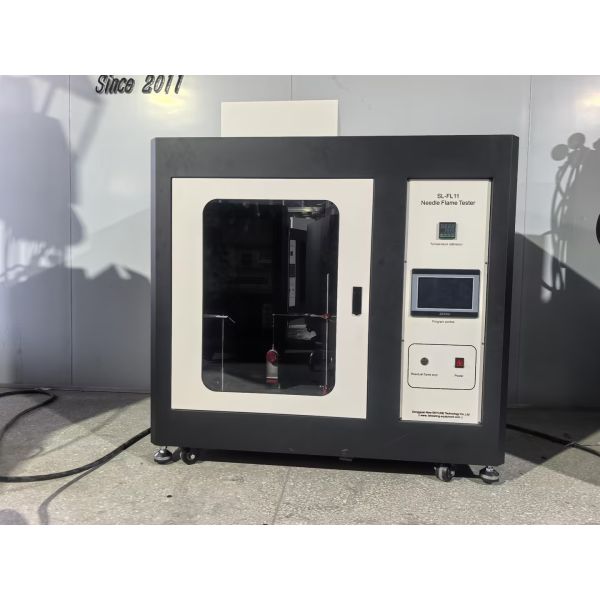

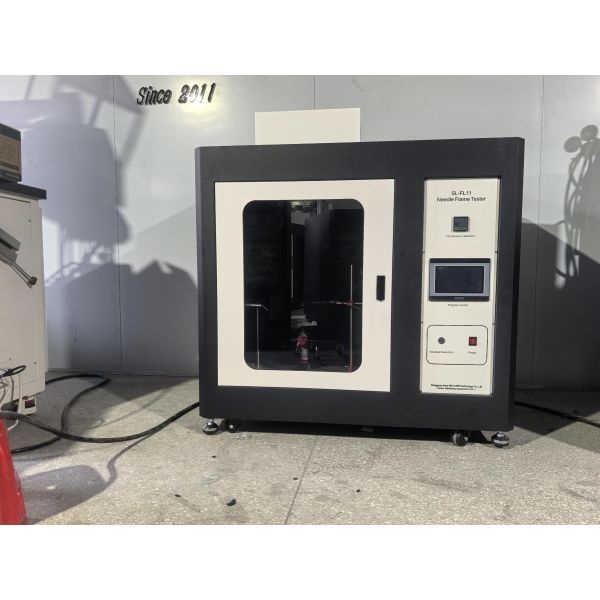

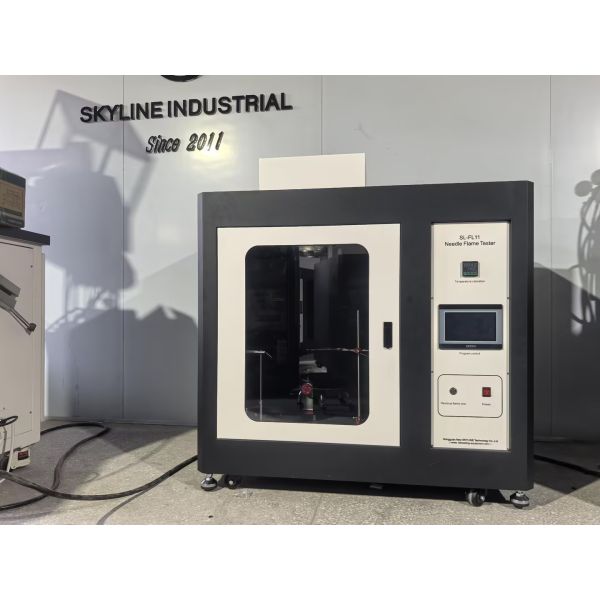

IEC 60695 Needle Flame Test Chamber
IEC 60695 Needle Flame Test Chamber
IEC 60695 Needle Flame Test Chamber
IEC 60695 Needle Flame Test Chamber
IEC 60695 Needle Flame Test Chamber
IEC 60695 Needle Flame Test Chamber
Specifications
Brand Name :
SKYLINE
Model Number :
SL-F11
Certification :
CE, CO, Rosh, Form E, Calibrate Certificate
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
15 sets/month
Delivery Time :
25 working days
Packaging Details :
Standard Export Package
Description
IEC 60695 Needle Flame Test Chamber
Electronic Product Flame Test Apparatus, IEC 60695 Needle Flame Test Chamber
Introduction
The Needle Flame Test Chamber evaluates fire resistance caused by internal faults such as leakage current in cables, wires, and similar components. This apparatus complies with Chinese GB4706.1, GB5169.5, IEC60695-2-2, and IEC61347-1 standards.
Applications
• Electrical and electronic products
• Components and accessories of household appliances
Key Features
  • All stainless steel and brass construction
  • Automatic burner ignition system
  • Digital displays for temperature and test timing
  • Large viewing window for convenient observation
Technical Specifications
Parameter Specification
Needle Burner Inner hole diameter Φ0.5mm ± 0.1mm, Diameter ≤Φ0.9mm, length ≥35mm, stainless steel
Burner Angle 0~45° (adjustable for flame height)
Thermocouple Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath withstands 40°C~1100°C
Burning Time 0-999.9s ± 0.1s adjustable (typically 30s)
Hold Burning Time 0-999.9s ± 0.1s, automatic recording, manual timeout
Flame Height 12mm ± 1mm (with height measurement instruments)
Flame Gas Butane gas, minimum 95% purity (bottled lighter gases acceptable)
Temperature Test Range 0~1000°C
Flame Temperature Requirements From 100°C ± 2°C to 700°C ± 3°C in 23.5 seconds ± 1 second
Standard Copper Block 4mm ± 0.01mm, weight 0.58g ± 0.01g before drilling, Cu-ETP
Test Process Automatic control with independent convulsions
Chamber ≥0.5m³
Control System Single chip microcomputer + touch screen control
Applicable Standards GB/T5169.10-2006, IEC60695-11-5:2000, UL746A
Power Supply 800VA, 220V, 48-60Hz
Display Panel Language English (customization available)
