SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
Specifications
Brand Name :
SKYLINE
Model Number :
SL-7602L
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1 unit/ month
Delivery Time :
10 work days
Packaging Details :
plywood case
Standards :
GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994 etc
Tubular furnace input power :
220V/3.8KW
Inner diameter of quartz tube :
ф34±1mm
SKYLINE :
Halogen Release Measurement Device
Brand :
SKYLINE
Quartz material tubular furnace heating furnace chamber size :
L600mm×ф42mm
Description

Halogen Release Measurement Device

Application
Applies to determine total quantity of halogen-free and low halogen flame retardant cable’s halogen acid gas and measure PH value and conductivity to determine the acidity gas.

Main parameter

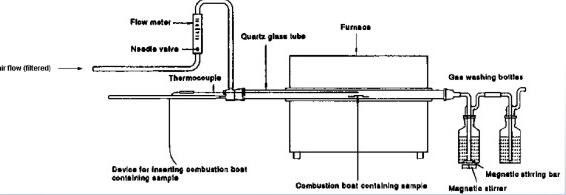

Quartz material tubular furnace heating furnace chamber size L600mm×ф42mm
Tubular furnace input power 220V/3.8KW
Inner diameter of quartz tube ф34±1mm
According to inner diameter of quartz tube gas flow-meter calculate the setting flux ρ=V·πD2/4=20*3.14*342 /4ml/h=302ml/min±10%
Accessories pH meter and conductivity analyzer one for each, 500mL gas washing and absorbing device and connection head.

Standard
According to GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994, IEC60754-2:1991, GB/T19666-2005, GA306.1-2007, GA306.2-2007, UL2556-2007.
