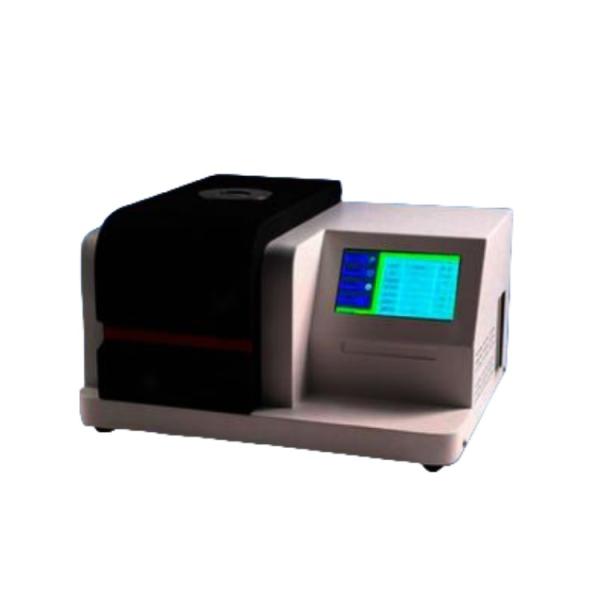

Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil
Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil
Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil
Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH0545
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50000sets/year
Delivery Time :
7-15 work days
Packaging Details :
Carton
Temp Range :
-40℃~ 600℃
Temp Resolution :
0.01℃
Temp Fluctuation :
±0.01℃
Temperature Repeatability :
±0.1℃
Heating Rate :
0.1～100℃/min
Cooling Rate :
0.1~20℃/min
Display Mode :
7-inch LCD Touch Screen Display
Description

PRODUCT DESCRIPTION

Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil

The SH0545 Automatic Crude Oil Wax Appearance Temperature Tester features a touch screen interface. It is capable of conducting multiple tests, including glass transition temperature measurement, phase transition analysis, melting and thermal enthalpy determination, product stability assessment, curing characteristic testing, specific heat measurement, and oxidation induction period detection.
Wax Appearance Temperature: Refers to the temperature at which wax crystals initially precipitate from the crude oil liquid system. It corresponds to the temperature point where the sample curve starts to deviate from the baseline associated with the exothermic peak, denoted as Tc.
The testing process involves heating the crude oil sample to a temperature above its wax appearance temperature, followed by cooling it at a preset rate. The instrument records the differential heat flow between the sample and the reference substance at each temperature point. A crude oil wax precipitation curve is then plotted, with differential heat flow as the ordinate and temperature as the abscissa.

Technical Specifications & Performance Features

  • Compliant Standard: SY/T 0545-2012 Thermal Characteristics of Crude Oil and Wax Precipitation
  • Temperature Range: -40℃ ~ 600℃
  • Temperature Resolution: 0.01℃
  • Temperature Fluctuation: ±0.01℃
  • Temperature Repeatability: ±0.1℃
  • Heating Rate: 0.1 ~ 100℃/min
  • Cooling Rate: 0.1 ~ 20℃/min
  • Constant Temperature Duration: Programmable setting, maximum 24 hours
  • Curve Scanning Modes: Heating scan, cooling scan
  • Display Interface: 7-inch LCD touch screen with human-sensing functionality
  • Communication Interface: Standard USB port with strong versatility, stable and uninterrupted data transmission, and support for auto-reconnection
  • Furnace Structure: Metal furnace body adopting indirect conduction heating mode, which ensures high temperature uniformity and stability, reduces pulse radiation, and outperforms traditional heating methods
  • Instrument Dimensions: 480×430×490mm
  • Net Weight: 35kg

Name crude oil wax precipitation point detector/meter/tester
Standard SY T 0545-2012
Temp range -40℃~ 600℃
Temp resolution 0.01℃
Temp fluctuation ±0.01℃
Temperature repeatability ±0.1℃
heating rate 0.1～100℃/min
Cooling rate 0.1~20℃/min
Display mode 7-inch LCD touch screen display
Data interface the standard USB interface
Curve scan heating scanning, cooling scanning
Display mode using the human body sensing type touch screen
Instrument size 480 * 430 * 490mm
weight 35KG

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 USB drive 1 piece
3 data line 1 piece
4 Power cord 1 piece
4 Aluminium crucible 100 piece
5 Metal cover 2 piece
6 Pure tin pellet 1 piece
7 10A fuse 5 piece
8 Tweezers 1 piece
9 Silica gel tube 1 piece
10 Instruction 1 copy
11 Warranty and packing list 1 copy
Temp Range -40℃~ 600℃ Touch Screen Automatic Wax Precipitation Point Tester For Crude Oil
