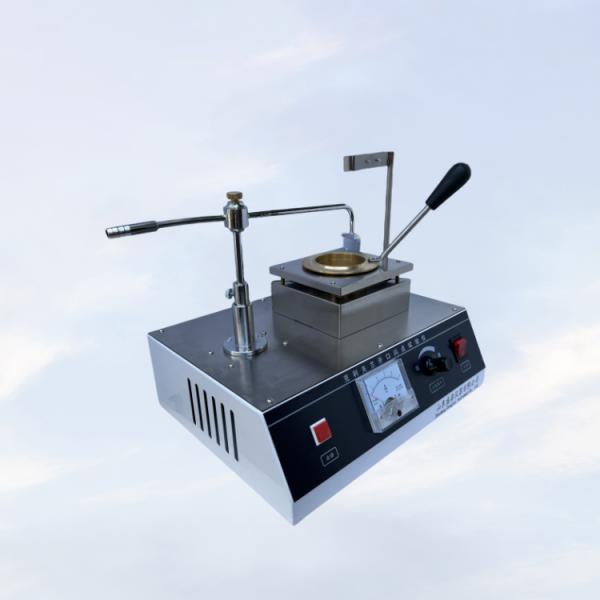

Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD3536
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
T/T
Supply Ability :
10 cartons per week
Delivery Time :
5-8 days
Packaging Details :
Package size: 380mm * 290m * 260mm Weight: 10kg
Temperature sensor :
RTD, PT100
Ambient temperature :
(-10~50)ºC
Relative humidity :
≤85%
Maximum power consumption :
650W
Description

Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products

Semi-Automatic Cleveland Open Cup Flash Point Tester for the determination of the fuel oil and oil products

SD3536 Semi-automatic open flash point tester is in according to the standard of the People's Republic of China GB/T3536-2008 "petroleum products determination of flash point and burning point Cleveland KaiKouBei act the requirements stipulated in the design and manufacture, is suitable for the determination of the fuel oil and oil products outside the mouth flash point is below 79 ℃, flash point and burning point also support GB/T1671-2008 plasticizer on the determination of flash point.

Semi-automatic Open Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester GB/T3536-2008

SD3536Semi-automatic Cleveland Open-Cup Flash Point Tester

Main technical parameters and indexes

1. Power supply AC(220±10%)V, 50Hz.
2. Heating device electric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable.
3. Temperature control room temperature ~ 400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions
4. Temperature display LED screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC.
5. Ignition device

(1) Ignition source: gas (or other civil combustible gas, the same below);

(2) Nozzle aperture: 0.6 〜 0.8 mm.
6. Temperature sensor RTD, PT100
7. Ambient temperature (-10~50)ºC
8. Relative humidity ≤85%
9.Maximum power consumption 650W

10. Package size: 380mm * 290m * 260mm Weight: 10kg

Packing List

S/N NAME UNIT Quantity Remarks
1 Open flash point meter set 1
2 Special brass oil cup piece 1
3 Special thermometer piece 1
4 instructions copy 1
5 Certificate of conformity warranty card copy 1

Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve
