ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
Specifications
Brand Name :
Shengtai instrument
Model Number :
SH017
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Measurement Range :
0 Penetration~680 Penetrations
Resolution :
0.1 Penetration(0.01mm)
Taper precision :
±1 cone degree
Standard cone :
102.5±0.05g according to ASTM D217 and GB/T269
Temperature control accuracy :
25±0.1ºC
Stirring :
automatically stirred by a magnetic stirrer
Description

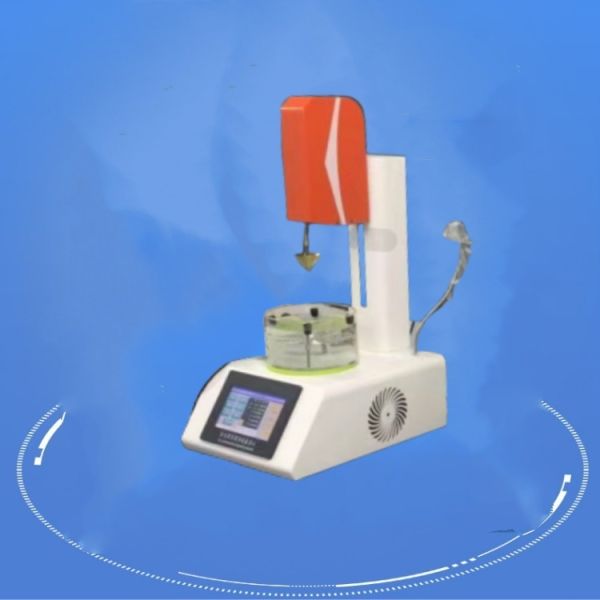

ASTM D217 Automatic Constant Temperature Cone / Needle Penetration Tester SH017
SH017 Automatic Constant Temperature cone/needle penetration Tester is designed and manufactured according to the technical requirements and relevant regulations of GB/T269 ASTM D217 and GB/T4509 ASTM D5 standards It is mainly suitable for testing the cone penetration of grease (or Vaseline).
Meet Standard: ASTM D217 ASTM D1403 ASTM D 5
ASTM D217 Grease Cone Needle Penetration Meter Machine
ASTM D217 Standard Lubricating Grease Cone Penetration Tester
ASTM D5 constant temperature Penetration Tester with Water Bath and Penetrometer
ASTM D217 Cone Penetration Analyzer for Lubricating Grease Penetration Analysis
I. Main technical features
Meet the standards: GB/T269 ASTM D217 and GB/T4509 ASTM D5
1. Upgraded to 7-inch color LCD display;
2, constant temperature refrigeration method: external semiconductor refrigeration.
3, detection method: high precision displacement sensor.
4. After upgrade, 199 groups of historical data can be stored for easy query;
At the same time can be equipped with U disk output function
Technical Specifications
Parameter Specification
Measurement Range 0-680 Penetrations
Resolution 0.1 Penetration (0.01mm)
Temperature Control Accuracy 25±0.1°C
Taper Precision ±1 cone degree
Standard Cone 102.5±0.05g (ASTM D217 & GB/T269 compliant)
Stirring Method Automatic magnetic stirrer
Data Output USB output in CSV or EXCEL format
Printing Built-in micro thermal printer

ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control

Applications
  • Petroleum asphalt testing
  • Grease cone penetration determination
  • Lubricating grease penetration analysis
Packing List
Item Unit Quantity Remarks
Instrument host set 1
Standard cone piece 1
Standard sample box piece 1
Heating and cooling thermostatic bath set 1 For winter warming and summer cooling
Power cord piece 1
Instructions copy 1
Certificate warranty card copy 1
