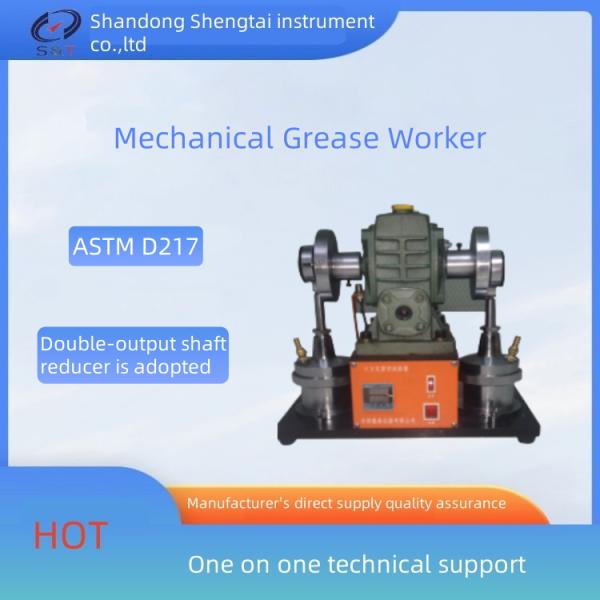

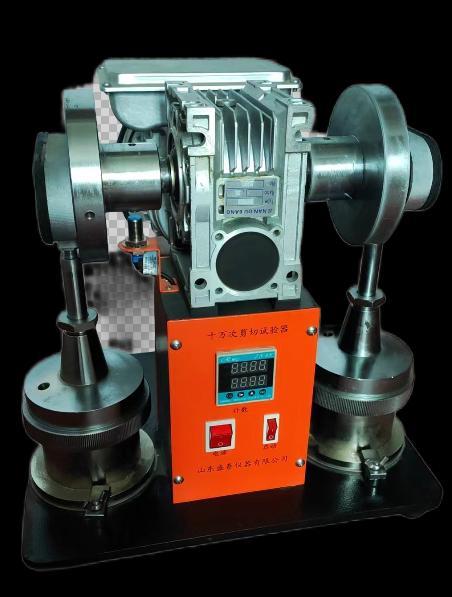

SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines
SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines
SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines
SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH269
Certification :
ASTM D217
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Motor :
Horizontal single-phase capacitor starting
motor speed :
1400 RPM
Coupling :
plum shaped elastic coupling
Worm gear reducer :
ouble outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.
Shear rate :
60 times/min and 100000 times/min
Maximum counting capacity :
9999999
grease working stroke of the work :
67-71 - mm
orifice plate on each hole diameter :
6.35 + 0.13 Ф
Power supply :
AC220, 50Hz
Description

Determination of cone penetration of SH269 lubricating grease and petroleum grease for 100000 shear testing machines

SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines

SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.

ASTM D217 ISO2137 Petroleum Products Lubricants Tester Mechanical Grease Worker

Grease Worker ASTM D217 for Measuring The Consistency of Lubricating Grease

ASTM D217 Lubricating Mechanical Grease Worker

Motorized Grease Worker, ASTM D217 Cone Penetration of Lubricating Grease

Performance characteristics:

1 the use of motor drive reducer to achieve 60 times/min shear rate

2.Extended coning test and optional shear stability test

3.The display can display the cutting times by itself

4 Counter can count by itself

5 the whole instrument structure is compact and complete

A special cooling fan is installed behind the motor to ensure the continuous operation of the whole instrument

1) Motor: Horizontal single-phase capacitor starting motor speed: 1400 RPM

2) Coupling: plum shaped elastic coupling

3) Worm gear reducer: double outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.

4) Shear rate: 60 times/min and 100000 times/min

5) Maximum counting capacity:9999999

6) grease working stroke of the work: 67-71 - mm, orifice plate on each hole diameter: 6.35 + 0.13 Ф

8) Power supply: AC220, 50Hz

Type: hundred thousand times shear testing machine
Coupling: quincunx elastic coupling
Standards: GB/T269, ASTM D217, ISO 2137 etc
Motor: horizontal single-phase capacitor starting motor speed: 1400 rpm
Worm gear reducer: double output shaft reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the worm gear shafts on both sides of the reducer
Shear Rate:

60 Times/Min

100000 times
Maximum count capacity: 9999999
Working stroke of grease working device: 67-71mm
Diameter of each hole on the orifice plate: Ф 6.35＋0.13
Transport Package: Standard Export Packing
Instrument size: 350 * 320 * 380mm Weight: 40kg

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 power cord 1 piece
3 Instructions 1 copy
4 Packing list 1 copy
5 Certificate warranty card 1 copy
