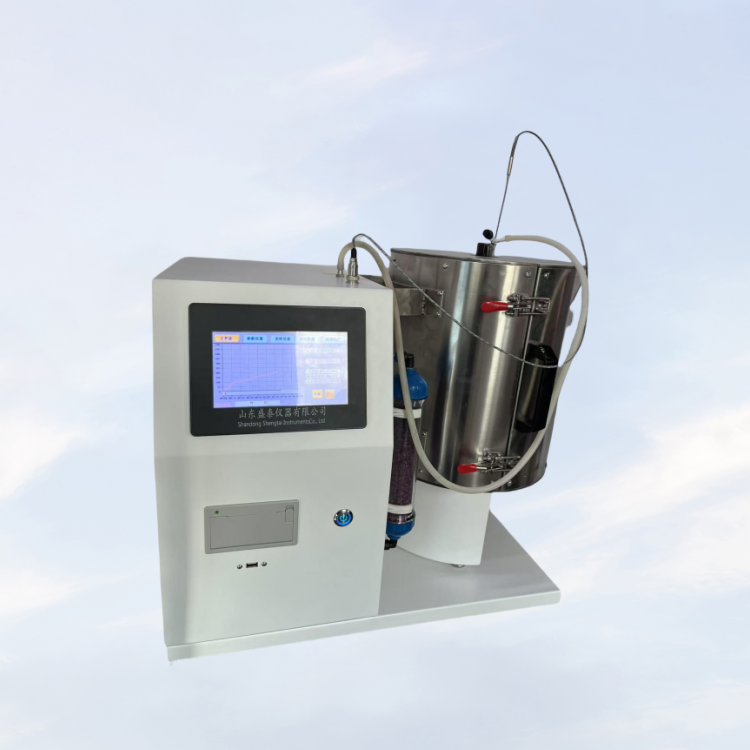

ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
Specifications
Brand Name :
Shengtai Instrument
Model Number :
ST-63
Certification :
ASTM D3466
Place of Origin :
China
MOQ :
1
Price :
$8300
Payment Terms :
T/T
Supply Ability :
5 cartons per week
Delivery Time :
5-7 days
Packaging Details :
(excluding computer) L * W * H 700mm * 430mm * 580mm
Thermocouple accuracy: :
furnace temperature
Temperature resolution: :
1 ℃
Drawing curves: :
automatically draws experimental curves
Carbon layer height: :
25mm ± 1mm
Flowmeter range: :
0L/min-20L/min
Overall power: :
＜ 2000W
Voltage: :
AC220V 50Hz
Overall dimensions: :
(excluding computer) L * W * H 700mm * 430mm * 580mm
Description
ASTM D3466 Fully Automatic Activated Carbon Ignition Point Tester

ST-63 fully automatic activated carbon ignition point tester is suitable for measuring the ignition point of activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.9 "Test Methods for Coal Granular Activated Carbon - Determination of ignition point" and GBT 20450-2006. The fully automatic activated carbon ignition point tester software comes with a database function, and the temperature points corresponding to each time point are automatically recorded during the experimental process. Users can analyze the ignition point characteristics of the current experimental activated carbon after the experiment.

Working principle: automatically controls and describes the determination of the reference ignition point of granular activated carbon in flowing air. automatically and accurately obtains the ignition point, visually displays the time temperature curve and results of the heating process, and prints the curve and experimental results .software of this instrument saves all experimental data.

Standard:GB/T7702.9 ASTM D3466 JIS K1474

ASTM D3466 Automatic activated carbon ignition point tester

activated carbon ignition point tester

Displays temperature curve and heating results for precise ignition point measurement.
Key Features
  • Automatically controls and describes the determination of reference ignition point
  • Visually displays time-temperature curve and heating process results
  • Automatically calculates and prints fire point with experimental data
  • Software with database function for analysis of ignition point characteristics
  • Compliant with GB/T7702.9, ASTM D3466, and JIS K1474 standards
Technical Specifications
Attribute Value
Control method Digital tube control and computer operation
Temperature measurement range Room temperature - 800℃
Thermocouple accuracy Furnace temperature
Temperature resolution 1℃
Experimental time Automatically judges results and stops experiment
Heating rate ~10℃/min before 150℃; 2-3℃/min after 150℃
Carbon layer height 25mm ± 1mm
Flowmeter range 0L/min - 20L/min
Overall power < 2000W
Voltage AC220V 50Hz
Dimensions (excluding computer) 700mm × 430mm × 580mm

ASTM D3466 Automatic Activated Carbon Ignition Point Tester

Packing List
S/N Name Quantity Unit Remarks
1 Host 1 set
2 Quartz burning tube 1 piece
3 Quartz particles In host
4 Power cord 1 piece
5 Fuse tube 1 piece
6 Instructions 1 copy
7 Certificate warranty card 1 copy
Quality Assurance
• Provided instruments are brand new and comply with national quality standards
• Materials and components meet specified technical requirements
• One-year warranty for entire equipment (excluding normal wear and tear)
• Free maintenance for quality issues during warranty period
• Lifetime discounted supply of components and lifelong maintenance
• Post-warranty maintenance available at cost fee
Manufacturer: Shandong Shengtai Instrument Co., Ltd.
