ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
ASTM D3466 Automatic Activated Carbon Ignition Point Tester
Specifications
Supply Ability :
5 cartons per week
Thermocouple accuracy: :
furnace temperature
Model Number :
ST-63
Voltage: :
AC220V 50Hz
Payment Terms :
T/T
Temperature resolution: :
1 ℃
Flowmeter range: :
0L/min-20L/min
Price :
$8300
Drawing curves: :
automatically draws experimental curves
Carbon layer height: :
25mm ± 1mm
MOQ :
1
Delivery Time :
5-7 days
Overall power: :
＜ 2000W
Brand Name :
Shengtai Instrument
Overall dimensions: :
(excluding computer) L * W * H 700mm * 430mm * 580mm
Certification :
ASTM D3466
Packaging Details :
(excluding computer) L * W * H 700mm * 430mm * 580mm
Place of Origin :
China
Description

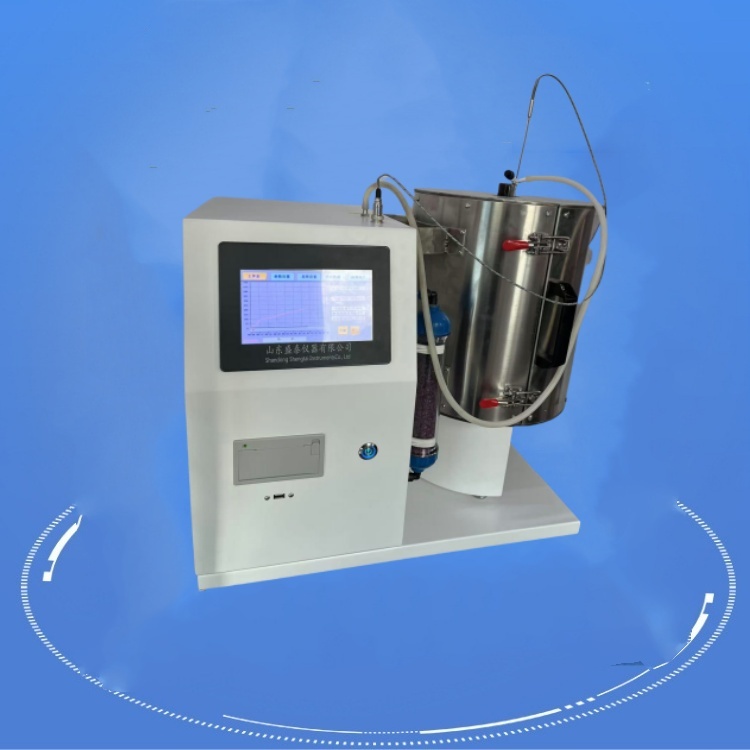

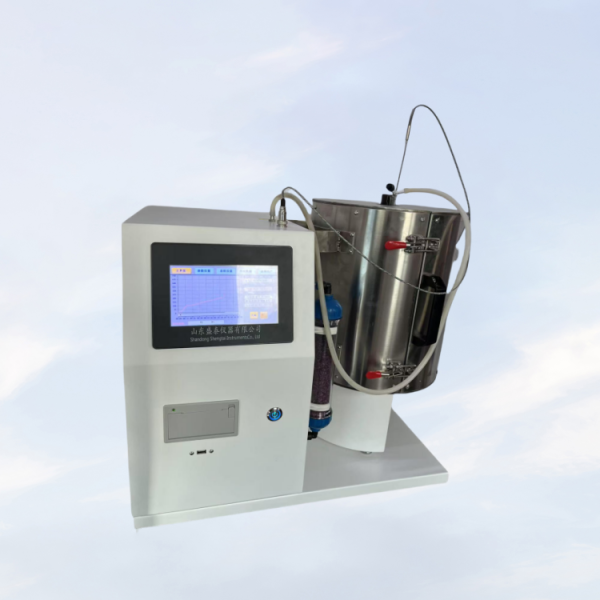

ASTM D3466 Fully Automatic Activated Carbon Ignition Point Tester

ST-63 Fully Automatic Activated Carbon Ignition Point Tester is used to determine the ignition point of activated carbon. It is developed and manufactured in compliance with GB/T 7702.9 Test Methods for Coal Granular Activated Carbon — Determination of Ignition Point and GB/T 20450-2006.
The supporting software of this instrument is equipped with a database function. It automatically records temperature data at each time node throughout the test. After testing, users can analyze the ignition performance characteristics of the tested activated carbon sample.
Working Principle
This instrument automatically controls the test for the reference ignition point of granular activated carbon under flowing air conditions. It can accurately acquire the ignition point value, visually display the time-temperature curve and heating results, and support printing of curves and test reports. All experimental data can be saved by the instrument software.
Applicable Standards: GB/T 7702.9, ASTM D3466, JIS K1474

Key Features
  • Automatically controls and describes the determination of reference ignition point
  • Visually displays time-temperature curve and heating process results
  • Automatically calculates and prints fire point with experimental data
  • Software with database function for analysis of ignition point characteristics
  • Compliant with GB/T7702.9, ASTM D3466, and JIS K1474 standards
Technical Specifications
Attribute Value
Control method Digital tube control and computer operation
Temperature measurement range Room temperature - 800℃
Thermocouple accuracy Furnace temperature
Temperature resolution 1℃
Experimental time Automatically judges results and stops experiment
Heating rate ~10℃/min before 150℃; 2-3℃/min after 150℃
Carbon layer height 25mm ± 1mm
Flowmeter range 0L/min - 20L/min
Overall power < 2000W
Voltage AC220V 50Hz
Dimensions (excluding computer) 700mm × 430mm × 580mm

ASTM D3466 Automatic Activated Carbon Ignition Point Tester

Packing List
S/N Name Quantity Unit Remarks
1 Host 1 set
2 Quartz burning tube 1 piece
3 Quartz particles In host
4 Power cord 1 piece
5 Fuse tube 1 piece
6 Instructions 1 copy
7 Certificate warranty card 1 copy
Quality Assurance
• Provided instruments are brand new and comply with national quality standards
• Materials and components meet specified technical requirements
• One-year warranty for entire equipment (excluding normal wear and tear)
• Free maintenance for quality issues during warranty period
• Lifetime discounted supply of components and lifelong maintenance
• Post-warranty maintenance available at cost fee
Manufacturer: Shandong Shengtai Instrument Co., Ltd.
