Manual Distillation Method Using Crude Oil Moisture Analyzer SD8929B
Manual Distillation Method Using Crude Oil Moisture Analyzer SD8929B
Manual Distillation Method Using Crude Oil Moisture Analyzer SD8929B
Manual Distillation Method Using Crude Oil Moisture Analyzer SD8929B
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD8929B
Certification :
ASTM D4006
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Input power :
AC220V, 50Hz, ± 10%
Electric furnace heating power :
1000W
Flask :
500ml
Power consumption of the whole machine :
no more than 1100W
Ambient temperature :
≤35℃
Relative humidity :
≤85%
Water receiver :
5ml, the minimum scale of 0.05ml
Condenser :
400mm±5mm.
Temperature control mode :
electronic solid state voltage regulator
Instrument size :
430 * 350 * 1100 (including utensils)
Description

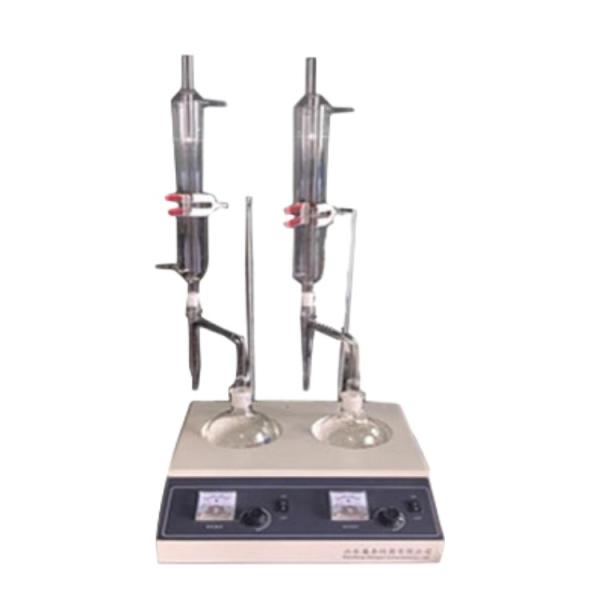

Manual distillation method using crude oil moisture analyzer SD8929B

Manual Distillation Method Using Crude Oil Moisture Analyzer SD8929B

SD8929B Crude oil moisture meter is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 8929-2006 "Determination of water content in crude oil". It is suitable for the determination of water content in crude oil according to the method (distillation method) specified in GB/T 8929.

ASTM D4006 Crude Oil Moisture Content Tester

Main technical features

  • The design of the instrument fully conforms to the requirements of GB/T 8929 standard.
  • The test vessel holder design is reasonable, the condensation pipe installation, disassembly is convenient.
  • The design of distillation flask, water receiver and condenser conforms to the requirements of GB/T 8929-2006 standard.
  • The instrument is equipped with pointed small tools, scrapers, sprayers, fully meet the requirements of GB/T 8929-2006 standard.

Main technical parameters and indicators

Input power AC220V, 50Hz, ± 10%
Electric furnace heating power 1000W
Flask 500ml
Power consumption of the whole machine no more than 1100W
Ambient temperature ≤35℃
Relative humidity ≤85%
Water receiver 5ml, the minimum scale of 0.05ml.
Condenser 400mm±5mm.
Temperature control mode: electronic solid state voltage regulator
Instrument size: 430 * 350 * 1100 (including utensils) weight:10kg

Packing list

S/N Name Unit Quantity Remarks
1 Main machine of moisture meter set 1
2 Drying tube piece 2
3 Silica gel plug (3#) piece 2
4 Condenser pipe piece 2
5 Receiver piece 2
6 Round bottom flask piece 2
7 Post pair 2
8 Condensation pipe gripper pair 2
9 A little pointy tool piece 1
10 Scraper piece 1
11 Operating instruction copy 1
12 Certificate of conformity warranty card copy 1
